Quick Details
-
Model Number:
-
F-800
-
Product name:
-
Large cable rewinding pay-off and take-up machine
-
Function:
-
High-speed feeding and rewinding cable and wire
-
Driving mode:
-
Three-phase motor + reducer
-
Useage:
-
Cable/wire active Pay-off
-
Available Wire Diameter:
-
≤ 40mm
-
Max load weight:
-
1500kg
-
Available Spool Diameter:
-
300-1200mm
-
Inner diameter of spool:
-
60-140mm
-
Motor power:
-
3kw/h
-
Application:
-
Wire Cable Making Industry
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
STM
-
Model Number:
-
F-800
-
Product name:
-
Large cable rewinding pay-off and take-up machine
-
Function:
-
High-speed feeding and rewinding cable and wire
-
Driving mode:
-
Three-phase motor + reducer
-
Useage:
-
Cable/wire active Pay-off
-
Available Wire Diameter:
-
≤ 40mm
-
Max load weight:
-
1500kg
-
Available Spool Diameter:
-
300-1200mm
-
Inner diameter of spool:
-
60-140mm
-
Motor power:
-
3kw/h
-
Application:
-
Wire Cable Making Industry

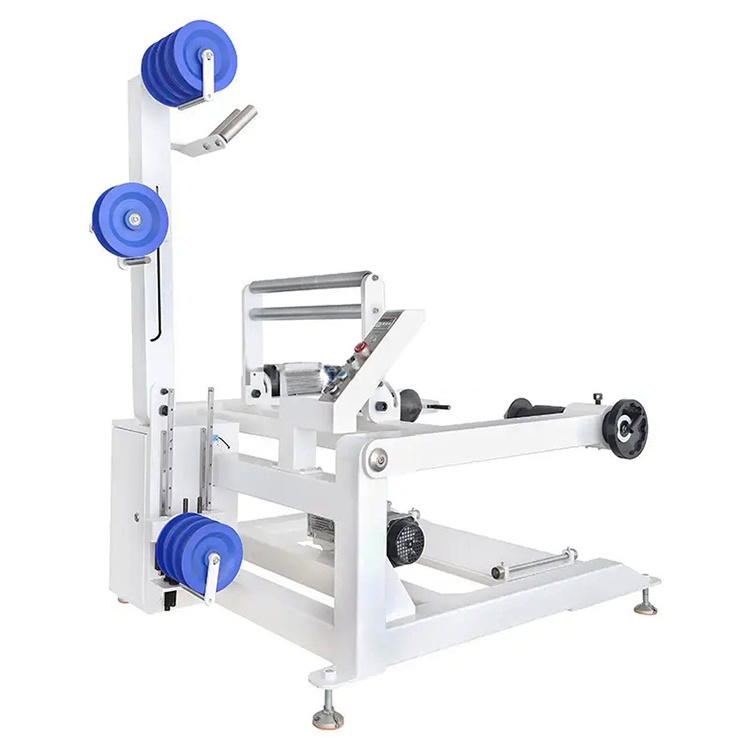

Cable manufacturing equipment F800 spool winding machine large wire cable rewinding take up pay off cable machine
Product Description
| Automatic active pay-off machine | |
| Model | F-800 |
| Feeding cable type | Wire,cable,PVC cable,etc |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |
| Function | High-speed feeding and rewinding cable and wire |
| Cable range | Φ ≤40mm |
| Max pay-off speed | 200m/min |
| Wire spool outside diameter range | Φ300-12 00mm |
| Spool inner diameter range | Φ60-140mm |
| Max load weight | 1500kg (Can be customized to increase the motor, increase the load). |
| Cable max diameter | Φ40mm |
| Induction type | Proximity switch,multi-speed |
| Drive type | Inverter + motor + reducer |
| Induction mode | frequency converter multi-speed, according to the storage wheel pulling height automatic adjustment, no manual intervention. |
| Rated speed | 1450 |
| Maximum speed | 2200 |
| Spool width | Max width 800mm |
| Motor power | 3kw |
| Placement mode | Lay flat, couble clip-top type |
| Dimension | 1850*1600*1300mm |
| N.W | 700kg |
