Quick Details
-
Brand Name:
-
Aisen
-
Voltage:
-
380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
1500*1380*1140mm
-
Weight:
-
3000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support
-
Hydraulic Power:
-
2.2kw
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Hebei, China
-
Application:
-
Process Threads
-
Production Capacity:
-
1.5m/min
-
Brand Name:
-
Aisen
-
Voltage:
-
380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
1500*1380*1140mm
-
Weight:
-
3000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support
-
Hydraulic Power:
-
2.2kw
-
Certification:
-
ISO9001

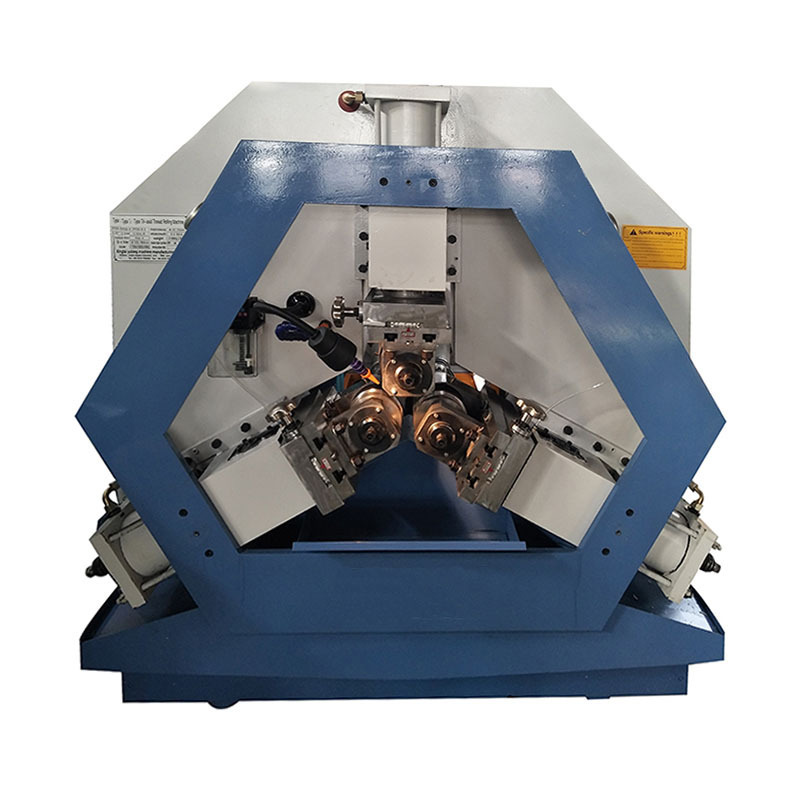

Pipe thread rolling machine
This machine is a equipment which made the workpieces plastic deformation under pressure with meltal. It uses at 120 degrees angles the three thread rolling wheels processing the workpieces screw thread, especially for rolling thin-walled workpieces and the other special workpiece.
Specification:
| Max roll pressure: | 150 KN | Thread length: | no limits |
| Working dia: | Φ 30-80mm | Hydraulic power: | 4kw |
| OD of roller: | Φ 120-170mm | Main power: | 5.5kw |
| BD of roller: | Φ 54mm | Weight: | 2500kg |
| Roller width max: | 100mm | Size: | 1500*1450*2000mm |
| pipe thickness | not less than 2mm | cooling power | 125w |
Equipment Details Show:
