Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2206*1033*1205
-
Machine Weight:
-
980 kg
-
Bucket capacity:
-
0.15 m3
-
Engine type:
-
Briggs & Stratton/Kohler
-
Rated power:
-
23hp
-
Overall dimension:
-
2206x1033x1205mm
-
Color:
-
Yellow, Red
-
Rated bucket capacity:
-
0.15 m3
-
Max working height:
-
2115 mm
-
Max pin height:
-
1856 mm
-
Max dump height:
-
1460 mm
-
Certification:
-
CE,ISO
Quick Details
-
Engine Brand:
-
Kohler
-
Power:
-
15.7 kw, 17.2 kw
-
Brand Name:
-
Hightop
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2206*1033*1205
-
Machine Weight:
-
980 kg
-
Bucket capacity:
-
0.15 m3
-
Engine type:
-
Briggs & Stratton/Kohler
-
Rated power:
-
23hp
-
Overall dimension:
-
2206x1033x1205mm
-
Color:
-
Yellow, Red
-
Rated bucket capacity:
-
0.15 m3
-
Max working height:
-
2115 mm
-
Max pin height:
-
1856 mm
-
Max dump height:
-
1460 mm
-
Certification:
-
CE,ISO

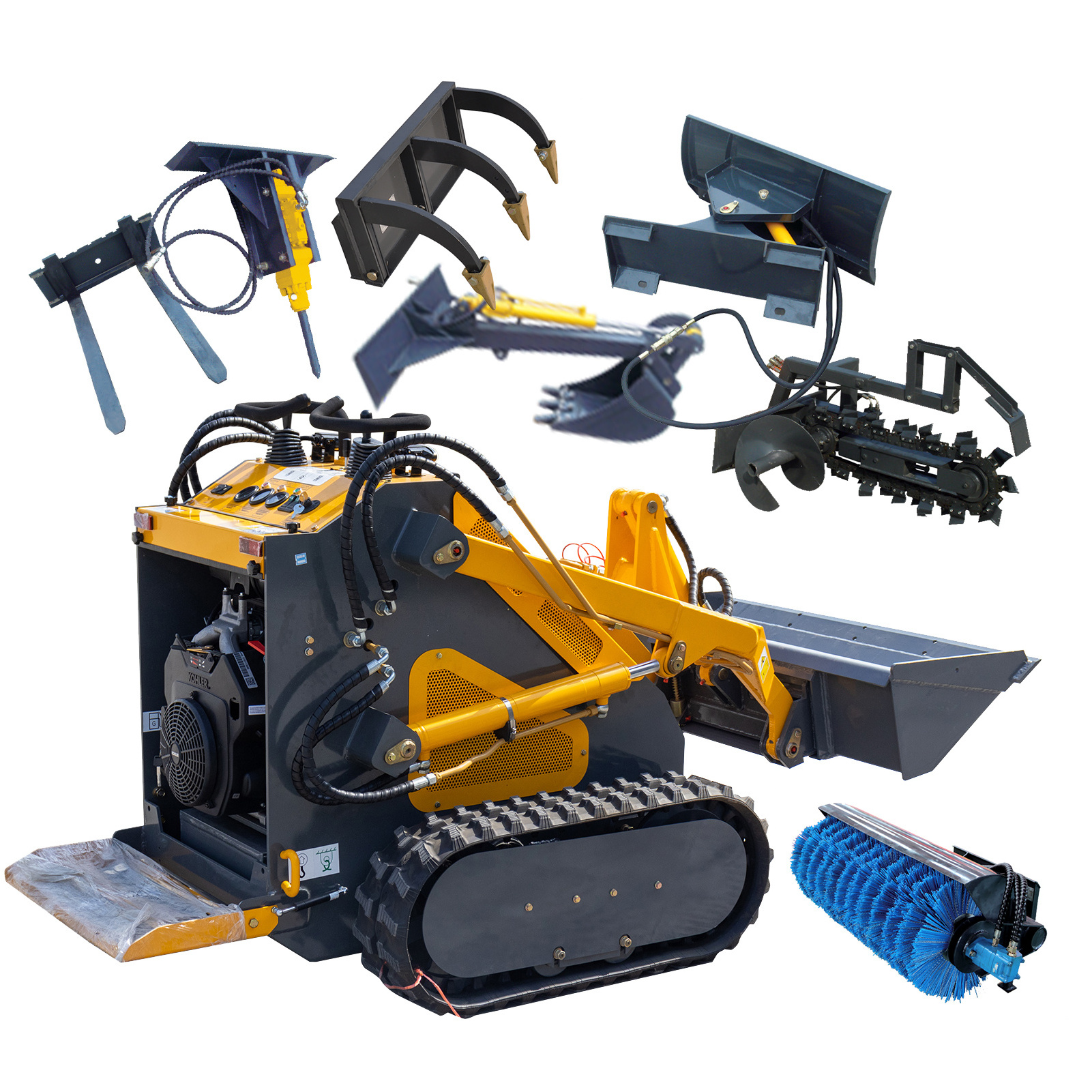

Skid steer loader 23hp/30hp/50hp/55hp/60hp/65hp/75hp/85hp
Main Features
|
Item |
Metric |
Inch |
|
Max working height( A ) |
2115 mm |
83.3 inch |
|
Max pin height ( B ) |
1856 mm |
73.1 inch |
|
Max dump height( C ) |
1460 mm |
57.5 inch |
|
The highest point discharge distance( D ) |
388 mm |
15.3 inch |
|
Bucket swing angle( β ) |
55° |
55° |
|
Bucket unloading angle( γ ) |
30° |
30° |
|
Opening-closing angle( θ ) |
25° |
25° |
|
Angle of departure( α ) |
8° |
8° |
|
Total height ( H ) |
1205 mm |
47.4 inch |
|
The height from the ground( F ) |
90 mm |
3.5 inch |
|
Wheelbase ( G ) |
636 mm |
25.0 inch |
|
No bucket length( J ) |
1752 mm |
69.0 inch |
|
Total width ( W ) |
1033 mm |
40.7 inch |
|
Bucket width ( K ) |
980 mm |
38.6 inch |
|
Total length( L )( with bucket ) |
2206 mm |
86.9 inch |
|
Turning radius (R) |
1307 mm |
51.5 inch |
Main performance parameters:
|
Engine |
Rated power |
23HP |
|||||
|
Rotating speed ( rpm ) |
3600 |
||||||
|
Noise ( Db ) |
≤95 |
||||||
|
Hydraulic System |
Hydraulic pressure ( Mpa ) |
17 |
|||||
|
Cycle time ( s ) |
Raise |
Dump |
Lower |
||||
|
4.27 |
1.34 |
3.31 |
|||||
|
Performance parameters |
|
Metric |
inch |
||||
|
Load weight (kg) |
200 Kg |
441 Lb |
|||||
|
Bucket capacity |
0.15 m 3 |
5.33 ft 3 |
|||||
|
Max lifting power |
375 Kg |
827 Lb |
|||||
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||||
|
Operating weight |
890kg
|
1958lb
|
|||||
|
Tire type |
Chevron tire |
18*6.5-8 |
|||||
