- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROOT (OEM ODM also accepted)
-
Voltage:
-
default 380V 50Hz 3-phase
-
Dimension(L*W*H):
-
1.25*0.95*1.65 (m)
-
Power (kW):
-
22 kW
-
Marketing Type:
-
ROOT Group Popular Product
-
Product Name:
-
car paint mixing dispersing machine
-
Main Applications:
-
various wet chemicals such as paint coating pigment
-
Warranty Time:
-
usu. 1 year (since the arrival time)
-
Delivery Time:
-
20 days after PI/Payment confirmed
-
Main Materials of Machine Body:
-
SS304 stainless steel
-
Agitator Type:
-
saw tooth disc
-
Motor Type:
-
explosion proof
-
Processing Capacity:
-
100-4000L
-
Product Color:
-
white+cyan (can be customized)
-
Certifications:
-
CE / ISO 9001 / others if needed
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
3000 L
-
Range of Spindle Speed(r.p.m):
-
0.1 - 1440 r.p.m
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROOT (OEM ODM also accepted)
-
Voltage:
-
default 380V 50Hz 3-phase
-
Dimension(L*W*H):
-
1.25*0.95*1.65 (m)
-
Power (kW):
-
22 kW
-
Marketing Type:
-
ROOT Group Popular Product
-
Product Name:
-
car paint mixing dispersing machine
-
Main Applications:
-
various wet chemicals such as paint coating pigment
-
Warranty Time:
-
usu. 1 year (since the arrival time)
-
Delivery Time:
-
20 days after PI/Payment confirmed
-
Main Materials of Machine Body:
-
SS304 stainless steel
-
Agitator Type:
-
saw tooth disc
-
Motor Type:
-
explosion proof
-
Processing Capacity:
-
100-4000L
-
Product Color:
-
white+cyan (can be customized)
-
Certifications:
-
CE / ISO 9001 / others if needed
Product Description

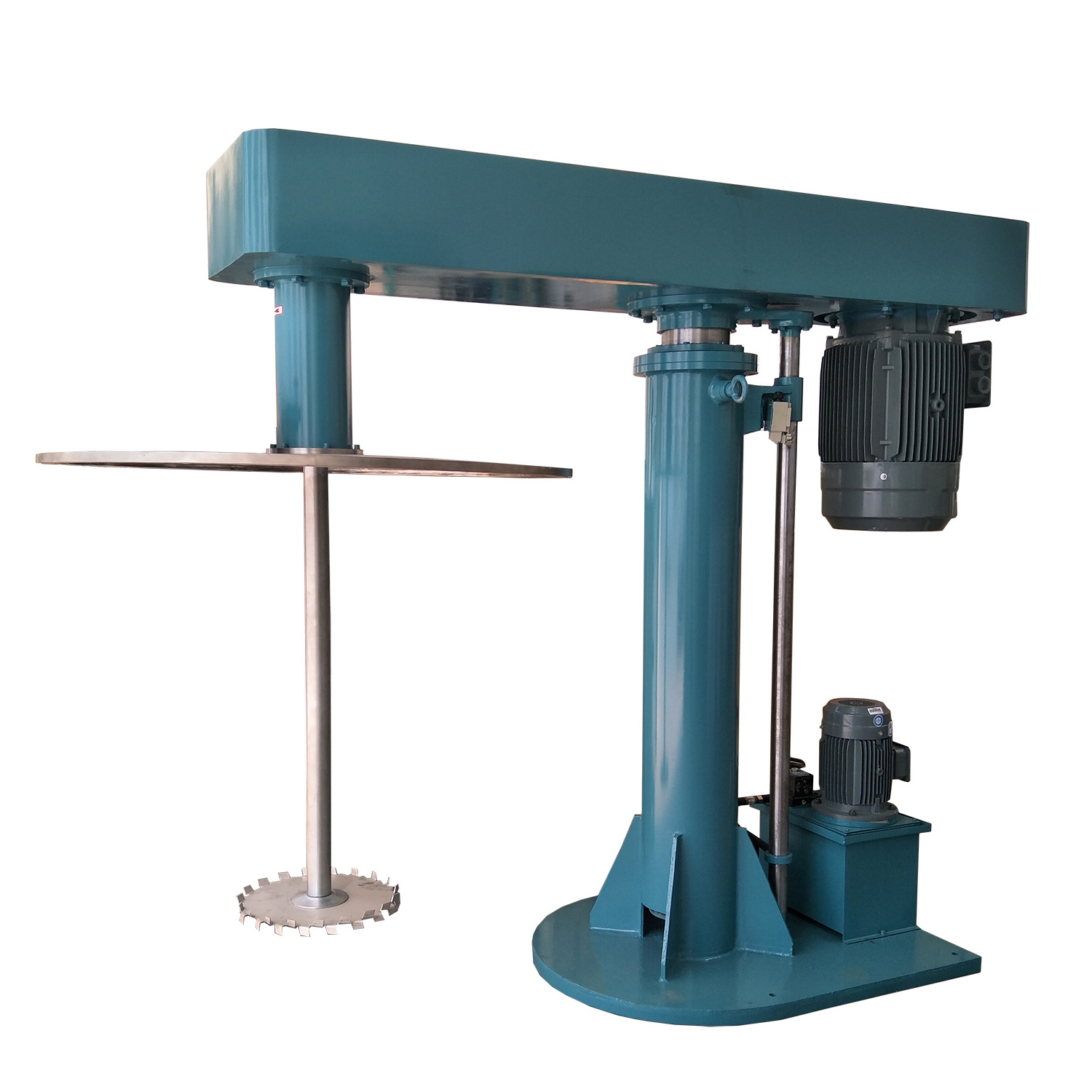

Root high speed disperser is widely applied in dispersing paste such as color paint paint, ink, dye, adhesion, ceramic glaze, magnetic recording materials etc. Disperser is the a good solution for mixing, dispersing and dissolving.
|
Model No.
|
Motor Power (KW)
|
Processing Capacity (L)
|
Disc Dia.
(mm)
|
Working Speed (rpm)
|
Stroke
(mm)
|
Hydraulic Power
(KW)
|
|
RT-FS2.2
|
2.2
|
50-150
|
150
|
0-1440
|
600
|
0.75
|
|
RT-FS4
|
4
|
50-200
|
200
|
0-1440
|
600
|
0.75
|
|
RT-FS5.5
|
5.5
|
80-250
|
200
|
0-1440
|
800
|
0.75
|
|
RT-FS7.5
|
7.5
|
100-300
|
250
|
0-1440
|
800
|
0.75
|
|
RT-FS11
|
11
|
100-400
|
250
|
0-1440
|
800
|
0.75
|
|
RT-FS15
|
15
|
150-500
|
300
|
0-1440
|
800
|
0.75
|
|
RT-FS18.5
|
18.5
|
200-800
|
300
|
0-1440
|
1100
|
1.1
|
|
RT-FS22
|
22
|
200-1000
|
300
|
0-1440
|
1100
|
1.1
|
|
RT-FS30
|
30
|
300-1500
|
350
|
0-1440
|
1100
|
1.1
|
|
RT-FS37
|
37
|
400-2000
|
400
|
0-1440
|
1100
|
1.5
|
|
RT-FS45
|
45
|
500-2500
|
450
|
0-1440
|
1100
|
1.5
|
|
RT-FS55
|
55
|
600-3000
|
450
|
0-1440
|
1300
|
2.2
|
Detailed Image
Belt Type Claming
Manual Scissor Clamping
Stainless Steel Saw Tooth Disc
Packing & Delivery
Packing Details : The machine will be covered with anti-abrasion film and then packed in plywood cases.
Delivery Details : 35-60 working days after receiption of down payment.
Related Products
Now Root wet grinding mills are applied in more than 20 countries, serving for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With own modern Nano Laboratory and manufacturing factory, Root could provide clients with the most suitable solution for complete wet grinding production mills.Great thanks for all supports and trust from new or old clients. ROOT will consistently make the quality and reputation as the premise of all our development, and make contributions to the development of wet grinding machine worldwide.
Root Nano Lab offers free experiment for customers. Now Root Nano Lab has testing equipment including:
1. Bettersize micron size particle sizer, PSS nano-size particle sizer
2. microscope
3. viscosity testing equipment
4. PH value testing equipment,
5. disperse dye diffusity testing equipment
6. and all the agents, anti-foms etc.
All these equipment will help customer to get ideal experiment result for whichever product they have. All the experiment results can be scaled up to industrial production.Root Nano Lab has equipped with Root lab series sand mills and disperser: RT-FS1.5, RT-0.2CD, RT-0.5AD, RT-0.5BJD, RT-1.0BJ, RT-1.0BDD, which could satisfy for experiment requirements of different material, different feeding size, different viscosity and different finish size etc.
1. Bettersize micron size particle sizer, PSS nano-size particle sizer
2. microscope
3. viscosity testing equipment
4. PH value testing equipment,
5. disperse dye diffusity testing equipment
6. and all the agents, anti-foms etc.
All these equipment will help customer to get ideal experiment result for whichever product they have. All the experiment results can be scaled up to industrial production.Root Nano Lab has equipped with Root lab series sand mills and disperser: RT-FS1.5, RT-0.2CD, RT-0.5AD, RT-0.5BJD, RT-1.0BJ, RT-1.0BDD, which could satisfy for experiment requirements of different material, different feeding size, different viscosity and different finish size etc.
