Quick Details
-
Model Number:
-
HSF-300 Band Pass Series
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Smagall
-
Theory:
-
three axis, fluxgate, Convert magnetic field signal to voltage signal
-
Output:
-
CAN, Voltage, Analog SENSOR
-
Axis:
-
1/3
-
Orthogonality:
-
≤±0.2°
-
Linearity:
-
≤0.01%FS
-
Temperature Range:
-
-20℃~60℃
-
Sensitivity:
-
7-25uT/V
-
Bandwidth:
-
DC~1KHz(0.3dB)
Quick Details
-
Usage:
-
Magnetic detector, magnetic field measurement
-
Mounting Type:
-
geophysical survey
-
Description:
-
geophysical survey, Three Axis Fluxgate Magnetometer
-
Model Number:
-
HSF-300 Band Pass Series
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Smagall
-
Theory:
-
three axis, fluxgate, Convert magnetic field signal to voltage signal
-
Output:
-
CAN, Voltage, Analog SENSOR
-
Axis:
-
1/3
-
Orthogonality:
-
≤±0.2°
-
Linearity:
-
≤0.01%FS
-
Temperature Range:
-
-20℃~60℃
-
Sensitivity:
-
7-25uT/V
-
Bandwidth:
-
DC~1KHz(0.3dB)

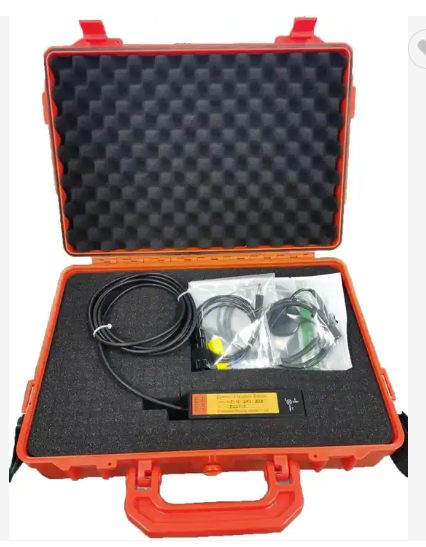

HSF-30 0 Band Pass Series
Introduction
Band p ass s eries three axis fluxgate sensor is used for measuring specific frequency range magnetic field. The index parameters of this series of products are specified by the customer, which can be adjusted the start frequency and cut-off frequency of sensors during production according to the clients ’ requests and the sensitivity, linearity, noise and other indexes of the sensor will be finely adjusted to optimize the overall index of the sensor.
Product Features
Wide band, Low Noise, High Sensitivity, Good linearity, Low Power consumption
Application
Geomagnetic measurement, environment magnetic field measurement, underwater magnetic detection etc..
T echnical P arameters
Performance Parameters
|
Index Name |
Parameters |
|
Axis |
1/2/3 |
|
Linearity |
≤ 0.01%FS |
|
Noise |
≤ 10pTrms/Hz1/2@450Hz ( Range ±10µT ) |
|
≤ 6pTrms/Hz1/2@450Hz ( Range ±1µT ) |
|
|
Bandwidth |
200 ( -3dB )~ 2KHz ( -3dB ) |
Range /uT , Output Voltage /V , Sensitivity mV/uT
|
Range |
10µT |
1µT |
|
± 10V Output |
1V/µT |
10V/µT |
|
+2.5V Output |
250 mV/µT |
2.5V /µT |
Electrical parameters
|
Supply Voltage |
Working Current |
Output Voltage |
|
± 12V ~ ±15VDC |
45mA |
± 10V |
|
+6VDC ~ +36VDC |
35mA |
+2.5V ± 1V |
- Spacial Magnetic Field Measurement
- Environmental Magnetic Field Monitoring
- Shielding Effect Testing
- Magnetic Field Characteristics Identification
- Multidimensional Magnetic Field Description
- Alternating-current Magnetic Field Measurement
- Airborne Magnetic Inspection
