Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vmadecnc
-
Weight (KG):
-
60 KG
-
Product name:
-
Lazer Marking Machine
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
-
Applicable Material:
-
Metal Materials
-
Keywords:
-
Fiber Lsaer Marking Machine
-
Machine type:
-
Mini Portable Laser Marker
-
Marking material:
-
SS CS Aluminum Metal Plastic
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Marking Logo Metal Non Metal
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vmadecnc
-
Weight (KG):
-
60 KG
-
Product name:
-
Lazer Marking Machine
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
-
Applicable Material:
-
Metal Materials
-
Keywords:
-
Fiber Lsaer Marking Machine
-
Machine type:
-
Mini Portable Laser Marker
-
Marking material:
-
SS CS Aluminum Metal Plastic
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Marking Logo Metal Non Metal

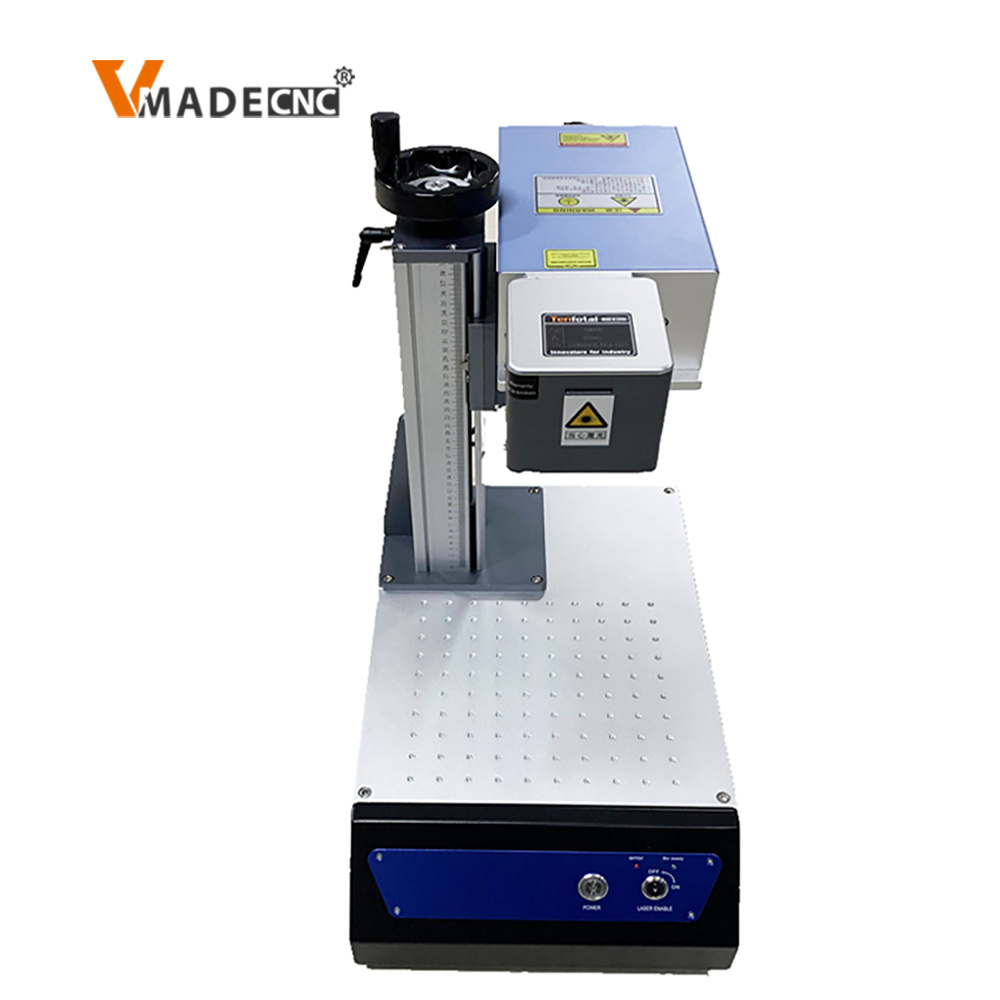

VLF-UV20/30/50
UV Laser Marking Machine
Fiber laser marking machine features
UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhone,cosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface, metal surface coating, plastic buttons,electronic components, gifts, communication equipment, Building materials and other fields.
Advantage of UV Laser
1.Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas,
high temperature, low temperature,etc.)
2.High precision: The objects engraved by the UV laser marking machine have fine patterns, and the minimum line width can reach 0.01mm. The marking is clear, durable and beautiful.Can print two-dimensional bar codes requiring more precision and higher
definition.
3. Small thermal effect: The wavelength of the ultraviolet laser marking machine is 355nm, which is a cold light source, will not damage the surface of the material, is smokeless, and has no pollution, and has a particularly good effect for marking plastic materials.The processed material has smooth edges and surface.
Technical parameters
|
Laser source power |
3W/5W/10W/15W/20W |
|
Laser wavelength |
355nm |
|
Laser pulse width |
3W<15ns@30khz, 5W<15ns@40khz,10W<18ns@60khz |
|
Laser frequency |
20khz~150khz |
|
Laser beam quality |
<1.2 |
|
Marking area |
100x100mm,150x150mm,175X175mm, 200x200mm |
|
Marking character |
0.1 x 0.1 mm |
|
Support computer |
XP,WIN7,WIN8,WIN10 |
|
Control software |
EZCAD (free) |
|
Control system |
BJJCZ |
|
Unit power |
≤900W |
|
Power supply |
AC110V 60HZ or AC220V 50HZ |
|
Cooling mode |
Air cooling |
|
Room temperature |
-15 ~ 50 ℃ |
|
Gross weight |
60kgs |
|
Packing size |
78x40x80cm |
Q: Can I do the installation all by myself?
A: Sure you can. All you need to do is to connect the power cord. Engineers have set the parameters before delivery. Meanwhile, we will send you a user manual and operation video to help you use the machine easily.
Q: Warranty?
A: 2 years warranty for core components.
Q: How can I get technical support after deal?
A: You can contact us on skype, WhatsApp and email at anytime. Our professional engineer will solve your problem perfectly. If any remote assistant support is needed, we will provide with Teamviewer software.
Q:How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experiences.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: We will send you manual and guide video in English, it can teach you how to operate the machine. If you still not sure how to operate, we can help you by phone, On E-mail and Teamviewer online.
