SY-Vibrating Sifter is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.We can provide customized service according to customers' requirements.When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
Choose
-
Weight:
-
350 KG
-
Material:
-
High-efficiency Fine Powder Vibrat Screen Sifter Sorting Machine
-
Keyword:
-
Vibrat screen
-
Function:
-
Grading/Classifying
-
Diameter:
-
400-1500 mm
-
Cleaning system:
-
Bouncing Balls
-
Layer:
-
1-4 Layers
-
Capacity:
-
100Kg-1500 kg/hour
-
Driving force:
-
Electricity
-
Surface Treatment:
-
Mirror polishing or wire drawings
-
Customized:
-
Add Wheel / hopper/gate
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANYUANTANG
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
Choose
-
Weight:
-
350 KG
-
Material:
-
High-efficiency Fine Powder Vibrat Screen Sifter Sorting Machine
-
Keyword:
-
Vibrat screen
-
Function:
-
Grading/Classifying
-
Diameter:
-
400-1500 mm
-
Cleaning system:
-
Bouncing Balls
-
Layer:
-
1-4 Layers
-
Capacity:
-
100Kg-1500 kg/hour
-
Driving force:
-
Electricity
-
Surface Treatment:
-
Mirror polishing or wire drawings
-
Customized:
-
Add Wheel / hopper/gate
Products Description

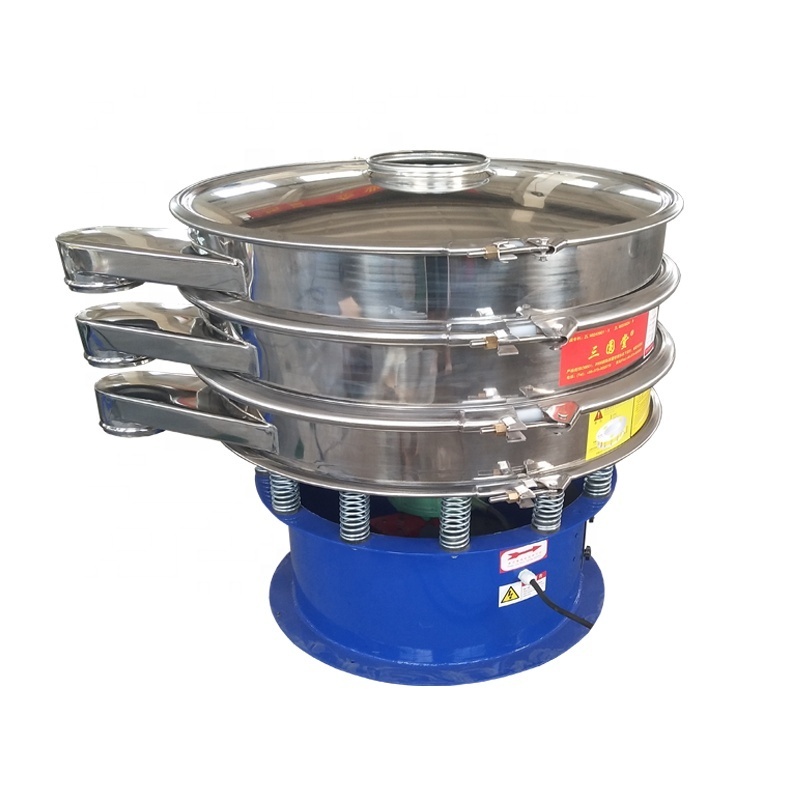

Rotary vibrating screen
Application
1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4.Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4.Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Contact material is stainless steel304，Bottom carbon steel
Full
stainless steel304
Full carbon steel
Product Paramenters
|
Model
|
Diameter
(mm)
|
Mesh area
Per deck(m2)
|
Mesh size
(mesh)
|
Layers
|
Vibration motor
(kw)
|
|
SY-400
|
Ø340
|
0.09
|
2-500
|
1-5
|
0.25
|
|
SY-600
|
Ø540
|
0.23
|
|
|
0.55
|
|
SY-800
|
Ø740
|
0.43
|
|
|
0.75
|
|
SY-1000
|
Ø900
|
0.66
|
|
|
1.1
|
|
SY-1200
|
Ø1100
|
1
|
|
|
1.5
|
|
SY-1500
|
Ø1400
|
1.58
|
|
|
2.0
|
|
SY-1800
|
Ø1700
|
2.32
|
|
|
2.2
|
|
SY-2000
|
Ø1920
|
2.8
|
|
|
2.2
|
