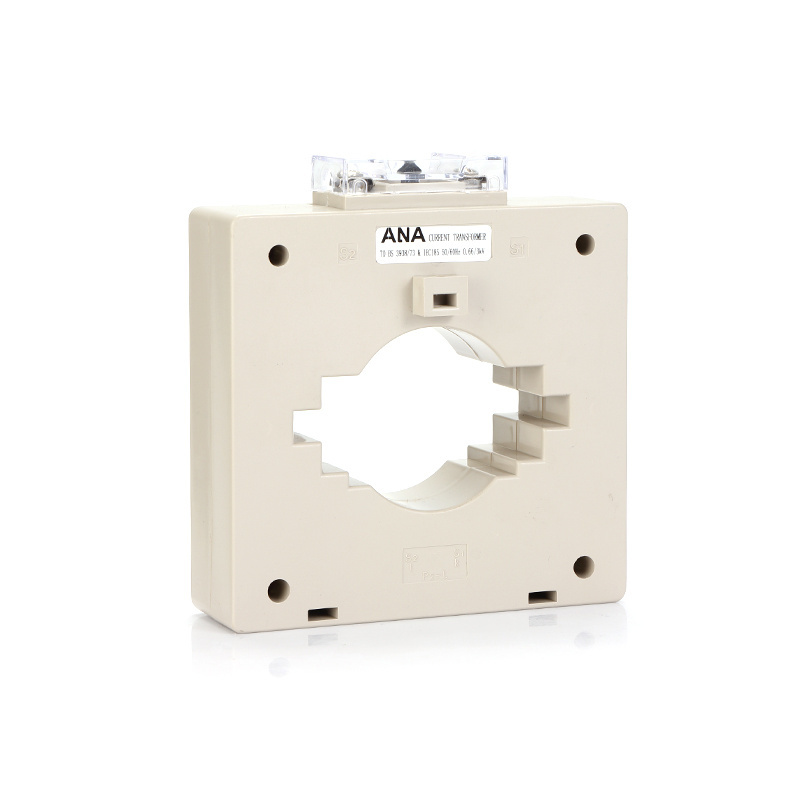

MSQ-100 Indoor 15VA Burden Current Transformer Price 500/5amp 800/5amp 1000/5amp

MSQ-100 Indoor 15VA Burden Current Transformer Price 500/5amp 800/5amp 1000/5amp

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Zhejiang, China

Brand Name:: ANA

Model Number:: MSQ-100

Color:: White, Black

Feature:: Bar Type, window type, cable

Certificate:: CE

Frequency:: 50/60Hz

Safety Factor:: FS 5

Rated Voltage:: 0.72KV

Withstand Voltage:: 3KVAC (1 Min)

Working Temperature:: -10℃-50℃

Name:: MSQ-100 Current Transformers

onput Voltageto:: Other

Quick Details

Usage:: current

Phase:: Single

Coil Structure:: TOROIDAL

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Zhejiang, China

Brand Name:: ANA

Model Number:: MSQ-100

Color:: White, Black

Feature:: Bar Type, window type, cable

Certificate:: CE

Frequency:: 50/60Hz

Safety Factor:: FS 5

Rated Voltage:: 0.72KV

Withstand Voltage:: 3KVAC (1 Min)

Working Temperature:: -10℃-50℃

Name:: MSQ-100 Current Transformers

onput Voltageto:: Other

Features
Two built in fixing methods: panel and busbar
Transparent terminal cover
Primary current up to 6000A

Descriptiona
A range of (7 Models)classice plastic case current transformer,low cost,rich range can match most requirements internationally

Specifications

Rated frequency	50/60Hz
Rated test voltage	3Kv AC (1 min)
Rated short-time thermal current (Ith)	60In
60In Rated dynamic current (Idyn)	2.5Ith
Rated voltage (Um)	0.72Kv AC
Continuous overload (Id)	1.2In
Operating temperature	-10℃ to 50℃
Housing self-extinguishing class	VO
Safety factor	FS 5
Secondary current	5A/1A

Standard
IEC60044-1, IEC61869-1, IEC61869-2

Type	Ratio(A)	Burden(VA)
Type	Ratio(A)	Class:0.5	Class:1.0
MSQ-100	800/5	7.5	10
MSQ-100	1000/5	10	10
MSQ-100	1200/5	10	15
MSQ-100	1250/5	10	15
MSQ-100	1500/5	15	15
MSQ-100	1600/5	15	15
MSQ-100	2000/5	15	15
MSQ-100	2500/5	15	15
MSQ-100	3000/5	15	15
