The product is designed to have a center frequency of 1MHz, a 6dB aftershock
pulse length of less than 8us, and the shell is made of engineering plastics, the wire rod
is wound to resist interference, and various means are used to ensure the accuracy of
the product.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XINHAITAI
-
Model Number:
-
P5-400
-
Product name:
-
ultrasonic water meter sensor
-
Color:
-
Black
-
Warranty Period:
-
1 year
-
Application:
-
transmitting and recieving
-
Certification:
-
Reach
-
Material:
-
ceramics, engineering plastics
-
static capacitance:
-
1100pF~1400pF
-
nominal frequency:
-
1.0±0.1 MHz
-
Resonance impedance:
-
150~300Ω
-
Waterproof grade:
-
IP68
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHAITAI
-
Model Number:
-
P5-400
-
Product name:
-
ultrasonic water meter sensor
-
Color:
-
Black
-
Warranty Period:
-
1 year
-
Application:
-
transmitting and recieving
-
Certification:
-
Reach
-
Material:
-
ceramics, engineering plastics
-
static capacitance:
-
1100pF~1400pF
-
nominal frequency:
-
1.0±0.1 MHz
-
Resonance impedance:
-
150~300Ω
-
Waterproof grade:
-
IP68

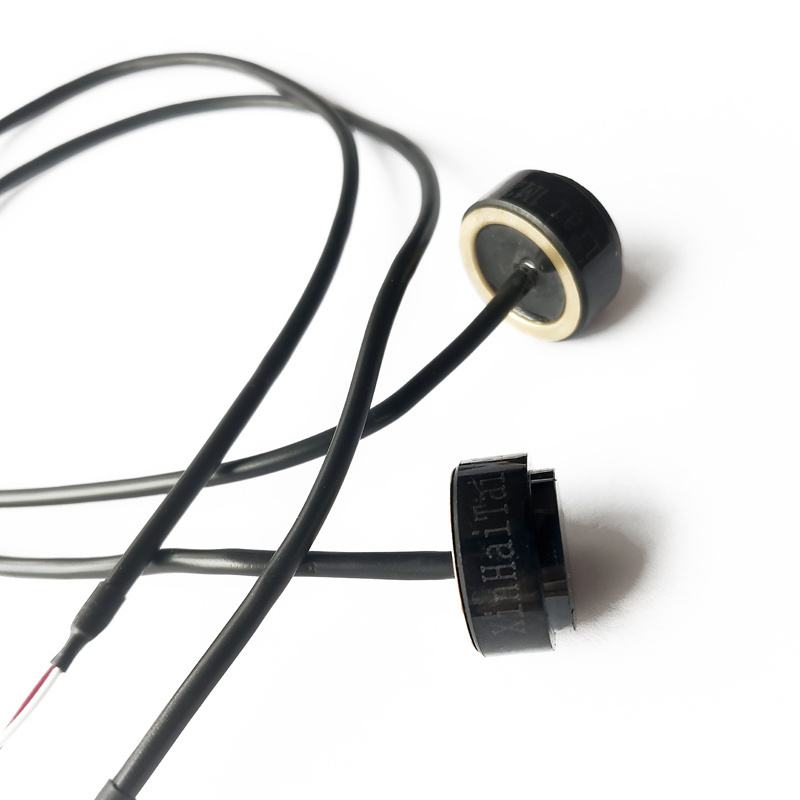

Ultrasonic water meter sensor
Ultrasonic sensors are sensors that convert ultrasonic signals into other energy signals (usually electrical signals). It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directionality, and can become a directional propagation of rays. main It shall be used for flow monitoring of ultrasonic Heat meter and ultrasonic water meter.
The function of the transducer is to convert the electrical vibration energy of the ceramic oscillator into superenergy and
radiate it into the air; And the receiving sensor is made by TaoThe ceramic oscillator transducer is composed of an amplification circuit, which receives waves to generate mechanical vibration and converts them into electrical energy for sensing The output of the receiver is used to detect the transmitted ultrasonic signal.
The function of the transducer is to convert the electrical vibration energy of the ceramic oscillator into superenergy and
radiate it into the air; And the receiving sensor is made by TaoThe ceramic oscillator transducer is composed of an amplification circuit, which receives waves to generate mechanical vibration and converts them into electrical energy for sensing The output of the receiver is used to detect the transmitted ultrasonic signal.
The sensor in the hot / cold gauge is a transmitter receiver integrated sensor, and
the sensitivity determines the receiving performance of the product. The sensitivity of
our products is above - 25dB.
Overall dimensions：
Product parameters：
|
Product Details
|
|
Detail parameters
|
|
||
|
sensitivity
|
|
-21.6DB
|
|
||
|
recieving frequency
|
|
1.0MHz
|
|
||
|
Pulse length
|
|
7.68uS
|
|
||
|
peak frequency
|
|
1.048MHz
|
|
||
|
Bandwidth
|
|
39.5%
|
|
||
|
center frequency
|
|
1MHz
|
|
||
|
static Capacitance
|
|
1100pF~1400pF
|
|
||
|
Resonant impedance
|
|
150Ω~300Ω
|
|
||
|
Waterproof Grade
|
|
IP68
|
|
||
|
operating temperature
|
|
-40℃~120℃
|
|
||
|
Temperature Drift
|
|
＜20KHz
|
|
||
|
Ultrasonic delay
|
|
1.5uS
|
|
||
|
QM
|
|
3.0~4.5
|
|
||
|
Launch Beam angle
|
|
5°~10°
|
|
||
|
recieving sensitivity
|
|
＞1.7V（3V，10pulse，20mm）
|
|
||
|
Shell material
|
|
Engineering Plastics (temperature resistance 150 ℃)
|
|
||
|
Lead position
|
|
Sensor Center
|
|
||
The sensor shell is made of all metal or PSU material to ensure the strength and corrosion resistance of the product. Epoxy resin is used for potting glue to ensure the firm bonding of the product. The wire rod meets the national RVVP1 standard. The wire core adopts 28Awg tinned soft copper wire to ensure the anti-oxidation ability of the wire. The coverage rate is up to 80% and the winding shielding of the tinned soft copper wire is enhanced to enhance the anti-interference ability of the wire Material selection to ensure that the service life of the product is far beyond the national standard.
Multiple models：
Application：
It adopts P5 piezoelectric ceramic chip with stable performance, engineering plastic shell, matching layer with the company's unique formula, specially designed production process and advanced testing instruments to ensure product consistency.
Tai'an xinhaitai sensor Co., Ltd. is a high-tech enterprise specializing in the design, R&D and production of ultrasonic flowmeter series products. The company has a united and confident production and sales team, an R&D team that strives for perfection, the introduction of foreign advanced R&D, production and testing equipment, and the establishment of a modern enterprise management mode and standardized production process.
After years of development and honing, and long-term research and summary, the production and operation, management strategy and service concept of the enterprise have become more professional, scientific, large-scale and humanized. In addition to cooperating with the domestic ace enterprises in the heat meter industry and the water meter industry, with the strong support of the municipal Party committee and the municipal government, our company has attracted the eyes of foreign enterprises relying on the e-commerce platform. After profound communication and exchange, we have achieved good cooperation relations. Now our products have been exported to the United States, Russia, France, India, Turkey, Iran and many other countries and regions, It has become a mature foreign trade R&D and production enterprise in Tai'an City.
While learning about the changes in the market, we xinhaitai sensor timely improved and upgraded our products, and refined and customized products according to the needs of different customers, so as to meet the needs of customers and the market to the greatest extent.
Wrapped in film paper and placed in a carton，Or you can customize the packaging according to your requirements.
Every year, customers from all over the world come to visit our factory, and our company will also travel to many countries to participate in exhibitions from all over the world. We sincerely invite you to visit our factory and the exhibition site, and
sincerely invite you to join us!
sincerely invite you to join us!
Q: Why did you choose us?
A: High precision, high efficiency, and high quality。
Q: Are you a trading company or a manufacturer?
Q: Are you a trading company or a manufacturer?
A: We are a factory。
Q: Could you customize the products according to my requirements?
A: Yes. We could customize the products for you.
Q: How long is your delivery time?
Q: How long is your delivery time?
A: We have it in stock, if you place a order we will deliver it promptly。
Q: Do you provide samples Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight。
Q: What is your terms of payment?
A: We can negotiate through email。
Q：Can we visit your factory?
A:
Of course, we sincerely invite you to visit our factory.
