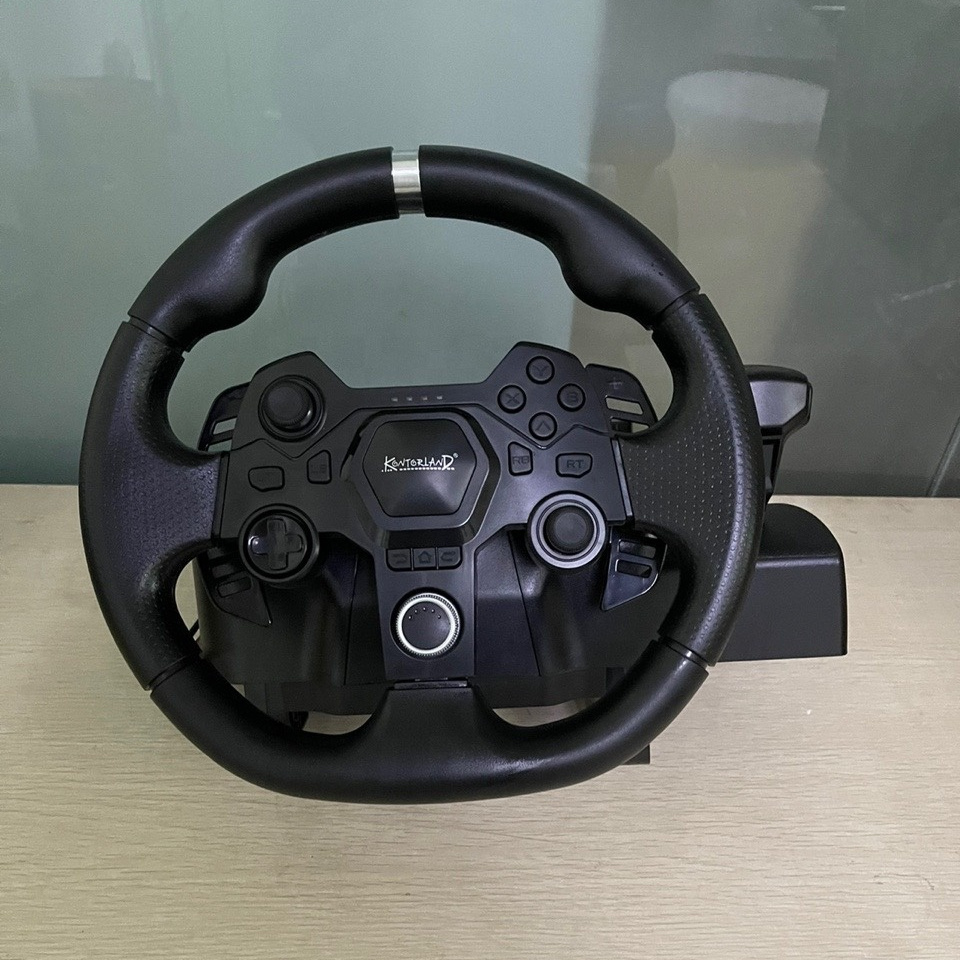

2022 Game Steering Wheel For PS4 For XBOX LED Indicator 7 Levels Adjustable Sensitivity Steering Wheel Gaming

Product Description

2022 Game Steering Wheel For PS4 For XBOX LED Indicator 7 Levels Adjustable Sensitivity Steering Wheel Gaming

Thank you for choosing this Thunderbolt Wheel.

Please read this instruction manual thoroughly before using and ensure

you are familiar with the setup and operation of your new gaming gadget.

Retain this instruction manual for future reference.

INTRODUCTION

This is the only steering wheel that works perfectly with GTA™ games and

compatibly with PS4™, PS3™, XBOX One™, XBOX 360™,

Nintendo Switch™, Android™ Devices and Personal Computer.

270° degree steering angle and two analog control sticks mounted on

the wheel for use with games such as GTA™.

11 inch (27.94cm) and fully rubberized steering wheel with ergonomically

designed grip and weight, 7 level adjustable sensitivity and

vibration feedback up for more realistic and lifelike game play.

Specially designed clamps (Maximum thickness 6.0 cm),

affix the racing wheel firmly to your table surface.

The paddle shift, Gear shifter, foot pedals and hand brake system

takes your race game experience to the upgrading levels.

SPECIFICATIONS:

1) Plug & Play racing wheel compatible with PS4™, PS3™, XBOX One™,

XBOX 360™, Nintendo Switch™, Android™ Devices and PC

2) 5 axes, D-pad and 10 independent control buttons.

3) Two analog sticks mounted on the wheel for use games such as GTA™.

4) Built-in motor creates vibration feedback effect for

more realistic and lifelike game play.

5) 7 levels adjustable racing wheel sensitivity.

6) 11 inch (27.94 cm) diameter racing wheel with 270º steering rotation.

7) With Programmable function for GAS/ BRAKE key on the foot pedal,

back triggers and FORWARD/ BACKWARD of gear shift.

8) Plug & Play spring loaded acceleration and brake control pedal

9) Spring return gear shift with hand brake

10) Specially designed clamps (Maximum thickness 6.0 cm)

11) Cable length for wheel and pedal is respectively 2.5m and 1.5m

CONNECTION AND INSTALLATION:

Plug the USB B type cable of the foot pedal system into the USB B type port

on the rear side of the steering wheel.

How to connect:

1) Playing with PS3™ Console

a) plug the USB cable of racing wheel into your PS3™ console.

b) one of red channel LEDs on the racing wheel will light,

it is ready to be used.

2) Playing with Personal Computer

a) plug the USB cable of steering wheel into the computer.

b) One of channel LEDs on the steering wheel lights,

it is ready to be used.

c) X-input is recognized as default mode in PC. It can be switched

between X-input and D-input by pressing HOME button for 3 seconds.

3) Playing with Nintendo Switch™

a) Plug the USB cable of racing wheel into the dock of Nintendo Switch™,

or plug the USB cable of racing wheel with Switch™ console

via OTG cable (not included).

b) one of red channel LEDs on the racing wheel will light,

it is ready to be used.

4) Playing with Android™ Devices

a) Plug the USB cable of racing wheel into your Android™ Smart TV

or Set Box, or plug the USB cable of racing wheel with

Android Smart phone via OTG cable (not included).

b) one of red channel LEDs on the racing wheel will light,

it is ready to be used.

5) Playing with PS4™, XBOX One™, XBOX 360™,

a) Connect the corresponding original game controller or the third-party

compatible game controller to USB A type port

in the rear side of steering wheel.

b) Plug the USB cable of steering wheel to game consoles.

Remarks: 1. To play with XBOX360 console, please use wired controller

to connect with racing wheel

2. To play with XBOX ONE/ PS4 consoles,

Connect the racing wheel with wireless controller

by charging cable

CONNECTION DESCRIPTION ICON

for PS4™, XBOX One™

and XBOX 360™ consoles

PROGRAMMABLE FUNCTION:

The programming key is designed to program the GAS/ BRAKE key

on the foot pedal, back triggers and FORWARD/ BACKWARD of gear shift.

According to your habits and operating requirements of the game.

The GAS/ BRAKE key on the foot pedal and FORWARD/ BACKWARD of gear shift

can be programmatically defined A / B / X / Y / LB/ RB/ LT/ RT

in any one key function, while other keys do not support the programming.

1) Programming:

Press the    and “” buttons at the same time for 3 seconds.

The channel LED will flash slowly.

Press the function key which is to be programmed

(Pedal, back triggers or gear shift). The channel LED will flash quickly.

Press the function key which will be represented,

(X/Y/A/B/LB/RB/LT/RT buttons). The channel LED flash slowly and

remains lit.

Programming is now finished.

2) Canceling many programmed keys simultaneously.

Press the    and  “” buttons at the same time for 3 seconds,

The  indicate channel LED flash quickly.

Press the    and  “”  buttons at the same time again for 3 seconds,

the indicate channel LED will flash slowly and remains lit.

Programmed keys cancelation is completed.
