Quick Details
-
Wheel Tractor:
-
4WD
-
Clutch:
-
Dual-stage
-
Color:
-
Red, Blue, Black, Customized
-
Production Capacity:
-
1000 sets/month
-
Transmission:
-
Hydraulic
-
Rated Lifting Capacity:
-
200 - 1600 kg
-
Connect Person:
-
Susan +8615753182903
Quick Details
-
Brand Name:
-
SD SUNCO
-
Place of Origin:
-
Shandong, China
-
Rated Load Capacity:
-
200kg-1500kg
-
Wheel Tractor:
-
4WD
-
Clutch:
-
Dual-stage
-
Color:
-
Red, Blue, Black, Customized
-
Production Capacity:
-
1000 sets/month
-
Transmission:
-
Hydraulic
-
Rated Lifting Capacity:
-
200 - 1600 kg
-
Connect Person:
-
Susan +8615753182903

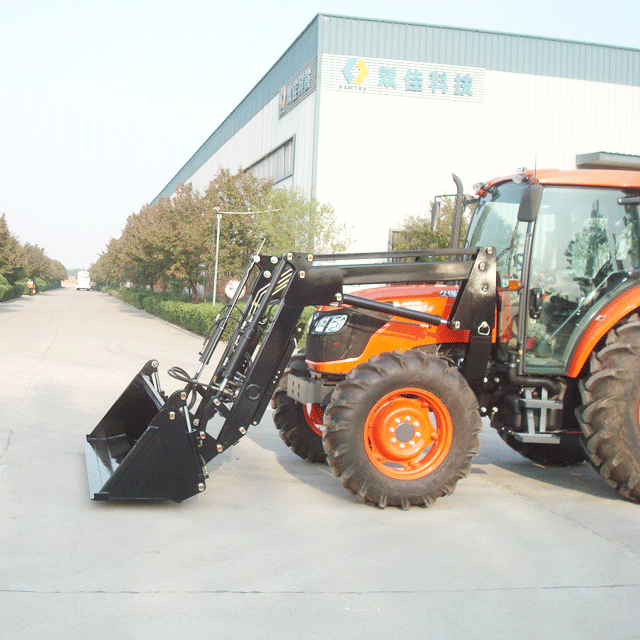

SD SUNCO tractor with front end loader and backhoe,www.foodcheckweigher.com,CE Certificate
Description:
TZ Series Front End Loader for tractor is used in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage etc. Different work devices are o SD Sunco tractor front end loader with hay fork with CE Certificate ptional, such as combined buckets, grating cover bucket, timber grab and bale fork etc, so as to accomplish different kinds of work successfully.
Features:
Compact Structure
Stable Hydraulic System
Easy Operation and High efficiency
Quick mounting and dismounting.
Application:
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage
Specifications:
|
Main Specifications of Front End Loader |
|||||
|
Model |
|
TZ03A/B/C/D |
TZ04A/B/C/D |
TZ05A/B/C/D |
TZ06A/B/C/D |
|
Matching Tractor |
kw(hp) |
14.7~22.1(20~30) |
22.1~29.4(30~40) |
29.4~36.8(40~50) |
36.8~44.1(50~60) |
|
Rated Lift Capacity |
kg |
300 |
400 |
500 |
600 |
|
Max. Dump Height |
mm |
1800 |
2000 |
2100 |
2200 |
|
Digging Depth |
mm |
100 |
120 |
140 |
140 |
|
Bucket Capacity |
m3 |
0.18 |
0.3 |
0.35 |
0.4 |
|
Dump Angle |
(° ) |
42~45 |
42~45 |
42~45 |
42~45 |
|
Weight |
kg |
470~650 |
500~680 |
530~720 |
660~800 |
|
Main Specifications of Front End Loader |
|||||
|
Model |
|
TZ08A/B/C/D |
TZ10A/B/C/D |
TZ12A/B |
TZ12C/D |
|
Matching Tractor |
kw(hp) |
44.1~58.8(60~80) |
58.8~66.2(80~90) |
88.2~102.9(120~140) |
88.2~102.9(120~140) |
|
Rated Lift Capacity |
kg |
800 |
1000 |
1200 |
1200 |
|
Max. Dump Height |
mm |
2350 |
2350 |
2500 |
2500 |
|
Digging Depth |
mm |
180 |
180 |
200 |
200 |
|
Bucket Capacity |
m3 |
0.48 |
0.6 |
1 |
1 |
|
Dump Angle |
(° ) |
42~45 |
42~45 |
42~45 |
42~45 |
|
Weight |
kg |
680~830 |
800~980 |
960~1150 |
960~1150 |
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
Shandong Sunco all staffs are welocome you to visit our factory in Zhangiu,Ji'nan Shandong PR. China
If you have any technical questions ,FOB/CIF Price,Delivery Time, and other requirements or questions,please contact Bella Pan directly,and she will reply you within 12 hours.
