Quick Details
-
Brand Name:
-
Qiandao
-
Voltage:
-
220V/380V 50Hz, 220V/380V 50Hz
-
Dimension(L*W*H):
-
1650x1150x1500mm
-
Weight (KG):
-
940
-
Power (kW):
-
3.25
-
Name:
-
Knife Sharpener
-
Certificate:
-
CE
-
Swing angle of table:
-
120 degree
-
Swing dia of workpiece:
-
3~250mm
-
Elevating distance of wheelhead:
-
360 degree
-
Max. Grinding Diameter:
-
250mm
-
After-sales Service Provided:
-
Online support
Quick Details
-
Wheel Size(mm):
-
125
-
Year:
-
2024
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiandao
-
Voltage:
-
220V/380V 50Hz, 220V/380V 50Hz
-
Dimension(L*W*H):
-
1650x1150x1500mm
-
Weight (KG):
-
940
-
Power (kW):
-
3.25
-
Name:
-
Knife Sharpener
-
Certificate:
-
CE
-
Swing angle of table:
-
120 degree
-
Swing dia of workpiece:
-
3~250mm
-
Elevating distance of wheelhead:
-
360 degree
-
Max. Grinding Diameter:
-
250mm
-
After-sales Service Provided:
-
Online support
Product Description

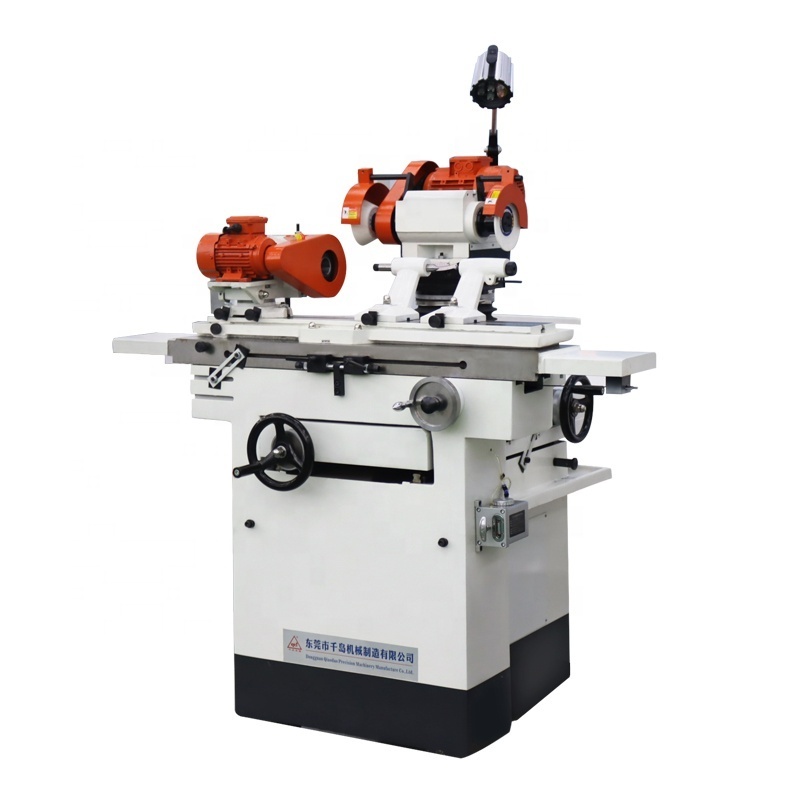

This machine is specially suitable for grinding tools of HSS, tungsten carbide and other materials. Convenient for cylindrical,surface groove and forming surface grinding work. With the usage of additional attachments, can grind various gears, worm wheel hobs, forming cutters, ball end mills, twist drill bits, taper reamer, etc.
The grinding head structure is flexible, can be adjusted in two dimensions. The headstock can be rotated in both directions, has international standard NT50 taper from one side and Morse 5# taper from the other side for easy installation of different tools and attachments. The working table adopts loading linear guide rails, operating smoothly and precise.
The grinding head structure is flexible, can be adjusted in two dimensions. The headstock can be rotated in both directions, has international standard NT50 taper from one side and Morse 5# taper from the other side for easy installation of different tools and attachments. The working table adopts loading linear guide rails, operating smoothly and precise.
Specification
|
Parameters
|
MQ6025A
|
|
|
|
Swing dia.of workpiece
|
250mm
|
|
|
|
Distance between centers
|
630mm
|
|
|
|
Dimensions of the operating table
|
940*135mm
|
|
|
|
Max. Left and Right movement of worktable
|
480mm
|
|
|
|
Swing angle of table
|
120°（60°）
|
|
|
|
Max travel of wheel head cross wertica
|
230mm
|
|
|
|
Min distance between central line of centers and grind wheel
|
50mm
|
|
|
|
Max distance between central line of centers and grind wheel
|
280mm
|
|
|
|
Max vertical travel of grinding head
|
230mm
|
|
|
|
Wheel center line up to the top
|
175mm
|
|
|
|
Wheel center line down to the top
|
55mm
|
|
|
|
Swing angle of wheel head in horizontal plane
|
360°
|
|
|
|
Swing angle of wheel head in vertical plane
|
30°（±15°）
|
|
|
|
The end taper of the spindle
|
MT3# TAPER ANGLE
|
|
|
|
Grinding head motor power 50Hz
|
Power
|
0.85/1.1KW
|
|
|
|
Speed
|
1400/2800rpm
|
|
|
The speed of grinding head
|
3050/6095rpm
|
|
|
|
Grinding head motor power
|
Power
|
0.25KW
|
|
|
|
Speed
|
1400RPM
|
|
|
The Dimensions of the machine
|
1650*1150*1500mm
|
|
|
|
The weight of the machine
|
940kg
|
|
|
|
Attachment name
|
Quantity
|
|
top notch
|
1 set
|
|
Left and right tailstock
|
1 set
|
|
Grinding inner mandrel
|
1 set
|
|
Grinding wheel dresser
|
1 set
|
|
universal grinder Attachment
|
1 set
|
|
Grinding wheel guard
|
1 set
|
|
reducing sleeves
|
3 set
|
|
tool holder
|
1 set( 22/27/32)
|
|
feet
|
1 set
|
|
blade holder
|
1 set
|
|
Tie rod
|
1 set (M24)
|
|
grinding wheels
|
2
|
|
Grinding wheel extension shaft
|
1 set
|
|
center gauge
|
1 set
|
|
tools
|
1 set
|
|
Toolbox
|
1 set
|
