Quick Details
-
Product name:
-

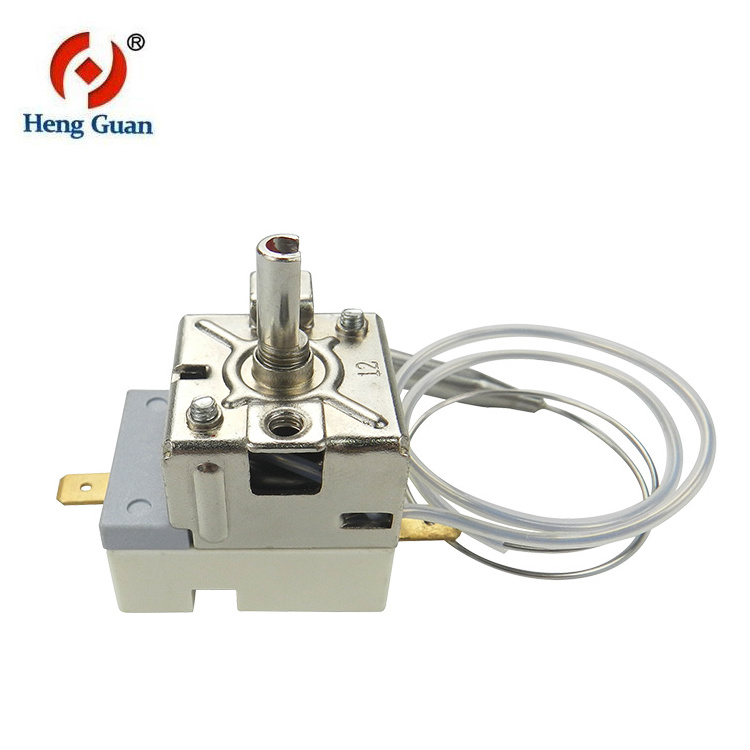

Price capillary thermostat Zhongheng WYF-300C for pizza oven
-
Current voltage:
-
125/250V AC 16A
-
Insulation resistance:
-
≥100MΩ
-
Designed tempertature range:
-
20℃~320℃
-
Electric strength:
-
2000VAC/1min/0.5mA
-
Capillary length:
-
300~2000mm
-
Model no.:
-
WYF series
-
Contact resistance:
-
≤50mΩ
-
Operating life:
-
≥100,000 times
-
Payment term:
-
T/T, L/C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengguan
-
Model Number:
-
WYF series
-
Product name:
-
Price capillary thermostat Zhongheng WYF-300C for pizza oven
-
Current voltage:
-
125/250V AC 16A
-
Insulation resistance:
-
≥100MΩ
-
Designed tempertature range:
-
20℃~320℃
-
Electric strength:
-
2000VAC/1min/0.5mA
-
Capillary length:
-
300~2000mm
-
Model no.:
-
WYF series
-
Contact resistance:
-
≤50mΩ
-
Operating life:
-
≥100,000 times
-
Payment term:
-
T/T, L/C
Price capillary thermostat Zhongheng WYF-300C for pizza oven
Parameter:
| No. | Main Parameters | |
| 1 | Model No. |
WY
F series
|
| 2 | Temperature | 20℃~320℃ |
| 3 | Capillary length | 300mm~2000mm |
| 4 | Rated voltage/current/frequency | 125/250VAC 16A 50/60Hz |
| 5 | Electric strength | 2000VAC/1 min/0.5mA |
| 6 | Insulation resistance | ≥100MΩ |
| 7 | Contact resistance | ≤50mΩ |
| 8 | Life time | 100000cycles |
| 9 | Function | Temperature control,Adjustable temperature |
| 10 | Application | Oven, deep fryer, air fryer, pizza oven electric water heater |
Drawing:
FAQ:
1. Do you provide free samples? How long will the samples be ready?
Yes. Samples are FREE. You just need to pay the delivery cost.
Usually, we need 7 days to prepare samples.
2. Can I have your pirce list?
Sorry, price list is not available. All of our products are customized. We need to know the cable
size, length and other specifications to count the prices.
3. What is your shipping method?
We will help you to choose the best shipping method according to your orders. If you have
pointed forwarder in China, we will help to arrange the shippment ASAP.
4. What is your payment term?
T/T. 30% deposit, 70% before delivery
Why choose us:
1.Many products have been passed CQC, TUV, UL, TUV, VDE certificate.
2.The thermostat annual output is over 15,000,000pcs.
3.Midea and Walmark stable supplier.
4. We not only have our own factories, R&D team and foreign trade team , has rich experience in
foreign trade, but also have their own patents.
5.All products must be strictly inspected according to ISO9001 standard before they leave the factory.
6.There are 8 ISO management production lines.
7.The important processes have been implemented using automated equipment production, the
future will be to implement all automated production.
8. The high tech product company.
9.We can accept OEM or ODM order.
Exploded diagram:
Imported raw materials
Contact Movable contact piece
(South Korea imported arcing) (Japan imported beryllium copper)
Packing:
200 pcs/ctn
Standard export packaging
( bubble mould box with outer carton)
Size of the carton: 54cm*38.5cm*40cm
Please kindly advise your specifications or drawing with following information when you inquiry:
1.Capillary (Materials, diameter, length)
2.The shaft height
3.Working temperature
4.Type of terminal
5.Drawing of special type configuration
6.Special testing requirements before shipment
