Quick Details
-
Model Number:
-
HTG
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
18A-900A
-
Speed:
-
1500/1800 rpm
-
Frequency:
-
50/60Hz
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
90dBA
-
protechtion class:
-
IP23
-
Insulation class:
-
H
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year, 12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAITAI
-
Model Number:
-
HTG
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
18A-900A
-
Speed:
-
1500/1800 rpm
-
Frequency:
-
50/60Hz
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
90dBA
-
protechtion class:
-
IP23
-
Insulation class:
-
H
-
Certification:
-
CE

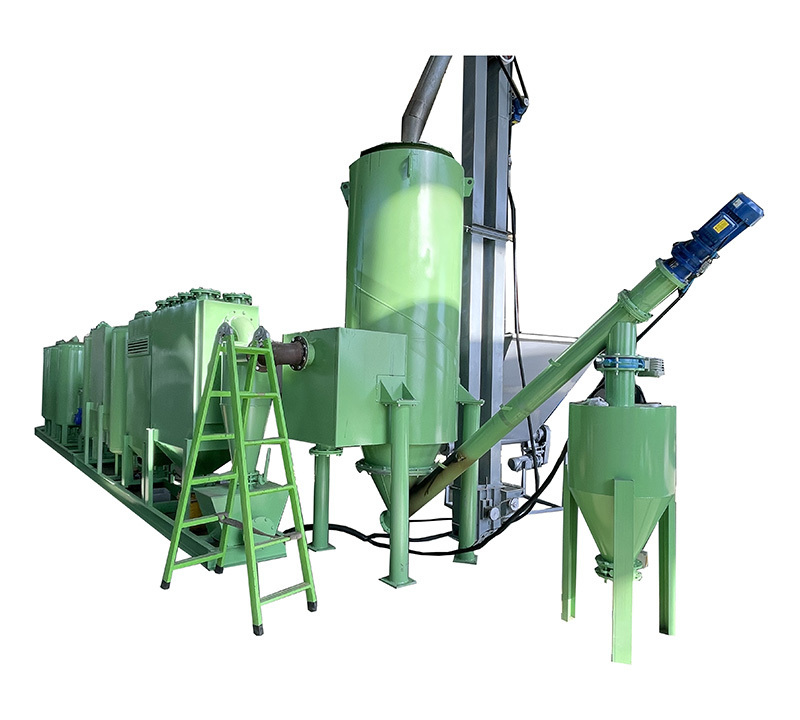

Syngas engine generator/biomass gasifier/biomass gasification power plant
1.Gas outlet valve(When the gas reaches the requirements previously closed, and then opened when the gas achieve the requirements.)
2.Exhaust valve(when the gas achieve requirements before, open and emission. When achieve ,close).
3.Shunt
4.Firearms trial(Trial to test the gas quality firearms,When the test firearm was ignited and combustion stability, indicating the gas to achieve the requirements).
5.Gas flow control valve(When closing the valve, it is the largest gas production,Open the valve, gas reflux, gas production relative reduction).
6.7 Soft connection
8.Roots blower
9.Electrical control box
10.Filter
11.Tar purifier
12.Cool precipitator dust port on(Recommend cleaning once a month,Primary prevention cooling tube blockage.)
13.Cool dust
14.Furnace
15.Ash removal machine screw
16.Ash Hopper
17.Under electric butterfly valve
18.On electric butterfly valve
19.Cycloid reducer
20.Feeding port(Attention:Feeding port personnel enter is prohibited and dangerous).
21.Bucket feeding machine motor
Parameter:
|
Raw material :Rice husk, woodchips, sawdust, bark, shavings, crop stalks, coconut hull, olive pomace, bagasse., plastic waste , palm tree .cotton straw ........ |
||
|
Requirement of the feedstock particle size is ≤5 cm, moisture content ≤20 %. |
||
|
Biomass fuel gas composition |
||
|
CO |
20%--22.5% |
|
|
H2 |
10%--12.6% |
|
|
CH4 |
2%--4% |
|
|
CO2 |
13% |
|
|
O2 |
1% |
|
|
N2 |
46%-50% |
|
|
H2S |
14--16.4mg/Nm3 |
|
|
Scope of Supply : |
||
|
Items |
Parts |
Remarks |
|
Gasifier |
Body of gasifier |
Generator gas |
|
Hopper feeder |
Transport material |
|
|
Feed connector |
Assort |
|
|
Screw ash machine |
Mechanical clean ash |
|
|
Dust hopper |
Temporary ash storage |
|
|
Pneumatic disc valve |
Ash machine closed valve |
|
|
Air pump |
Power of pneumatic disc valve |
|
|
Dust remover |
Cyclone ash separator |
Remove the ash |
|
Pneumatic disc valve |
closed valve of dust remover |
|
|
Cooler |
Gas cooling , waster heat recovery |
|
|
Tarpurifier |
Contains 4 sets tar remover |
Separate tar |
|
Centrifugal separator |
Separate tar |
|
|
Filter |
Separation pf tar , water |
|
|
Roots blower |
Gas Transportation |
|
|
Splitter |
Gas shunt output |
|
|
Filtering cleaner |
Clean the gas |
|
|
One-way valve |
Stop the gas back flow |
|
|
Circulating water pump |
Assort |
|
|
Electric control cabinet |
||
1) Shipment by FCL or LCL.
