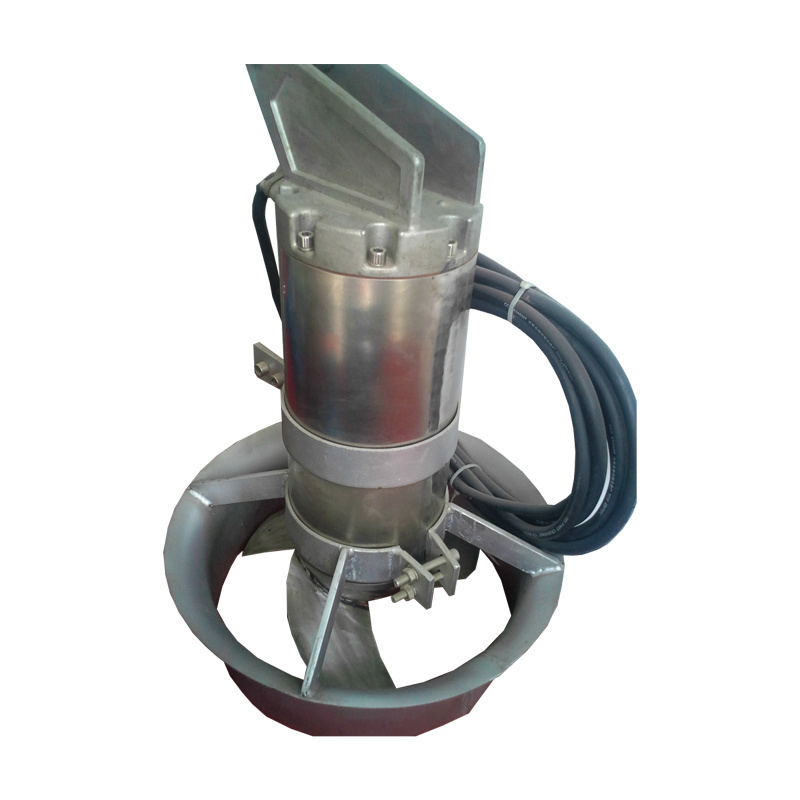

QJB Submersible diving horizontal sewage agitators mixer
The special install system of mixer can be fast installation and dismantle submersible mixer no need discharge out the sewage in tank.
When tank depth H <4m, suggest adopt install system Ⅰ-1. The diving depth
Can make adjustment in vertical direction according to requirement, and it can rotating maxi angle plus or minus 60° around guide pad is in horizontal direction inner hoist system base、supporting bracket and below bracket and all concerned connect face all adopt expansion bolt fix, no need reserved hole.
Installation system Ⅱ using guide rope instead of guide pad, it has the feature of convenient installation, simple site installation etc, and effective improve too much depth tank condition, due to guide pad installation error and lead to can’t normal hoist condition.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2kw
-
Weight (KG):
-
50 kg
-
After Warranty Service:
-
Video technical support
-
material:
-
Stainless steel
-
Media ph:
-
5-9
-
name:
-
qjb low speed submersible mixer
-
power:
-
1.5kw
-
Usage:
-
wastewater treatment plant
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yimei
-
Weight:
-
80kg
-
Power:
-
2.2kw
-
Weight (KG):
-
50 kg
-
After Warranty Service:
-
Video technical support
-
material:
-
Stainless steel
-
Media ph:
-
5-9
-
name:
-
qjb low speed submersible mixer
-
power:
-
1.5kw
-
Usage:
-
wastewater treatment plant
Product Description
Product Description
Installation system:
Main Feature
compact structure、small volume、light weight, easy operation maintenance、fast installation、long service life etc.
the blade has the self-cleaning function, can prevent sundries wind、blocking
can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.
motor winding is F grade insulation, protection grade is IP68.
all fastener is stainless steel.
Function and application condition
This mixer suitable for all kind of water treatment process which need keep solid、liquid_ two phase or solid、liquid 、air three phase uniform mixing reaction area.
Normal continuous operation condition:
★Maxi temperature no over 40°C
★ medium PH 5-9
★Medium density no over 1150KG/M^3
★long term diving operation, diving water depth no over 20m
Attention items when chose models:
In order to guarantee mixer to get the best operation effect, pls supply the
◎ Application purpose
◎ tank type and dimension
◎ Mixing media characteristic: contain Viscosity, density, temperature and solid content etc.
Application
Submersible mixer can be divided into mixing series and low-speed push series.
The low speed push flow series mixer is suitable for aeration tank and anoxic tank in industrial and municipal sewage treatment
plant.
The mixer series is suitable for mixing suspended solids in wastewater treatment plants and industrial processes.
The low speed push flow series mixer is suitable for aeration tank and anoxic tank in industrial and municipal sewage treatment
plant.
The mixer series is suitable for mixing suspended solids in wastewater treatment plants and industrial processes.
Technical indicators
|
specification
|
impellermdia
|
impeller
rotate speed |
power
|
Thrust
|
Net Weight
|
Rated current
|
|
|
mm
|
r/min
|
kw
|
N
|
kg
|
A
|
|
QJBO.85/8-260/3-740/C/S
|
260
|
740
|
0.85
|
163
|
55
|
3.2
|
|
QJB1.5/6-260/3-980/c/s
|
260
|
960
|
1.5
|
290
|
55
|
4
|
|
QJB2.2/8-320/3-740/c/s
|
320
|
740
|
2.2
|
582
|
88
|
5.9
|
|
QJB4/6-320/3-960/c/s
|
320
|
960
|
4
|
609
|
88
|
10.3
|
|
QJB1.5/8-400/3-740/s
|
400
|
740
|
1.5
|
600
|
74
|
5.2
|
|
QJB2.5/8-400/3-740/s
|
400
|
740
|
2.5
|
800
|
74
|
7
|
|
QJB3/8-400/3-740/s
|
400
|
740
|
3
|
920
|
74
|
8.6
|
|
QJB4/12-620/3-480/s
|
620
|
480
|
4
|
1400
|
190
|
14
|
|
QJB5/12-620/3-480/s
|
620
|
480
|
5
|
1800
|
196
|
18.2
|
|
QJB7.5/12-620/3-480/s
|
620
|
480
|
7.5
|
2600
|
240
|
28
|
|
QJB10/12-615/3-480/s
|
615
|
480
|
10
|
3300
|
250
|
32
|
