Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Falave
-
Material:
-
Aluminium honeycomb panel, stainless steel, XPS
-
color:
-
Customization
-
Type:
-
Off Road Travel Trailer/Off Road RV/Off Road Caravan
-
Axle:
-
1
-
Sleeping capacity:
-
2~4
-
UVW:
-
1800kg
-
ATM:
-
2400kg
-
Towball tare:
-
150~190kg
-
Hitch:
-
Self correcting electric traction connection for 50mm Tow Ball
-
Chassis:
-
Special high-strength off-road RV chassis
-
Suspension:
-
Double wishbone independent suspension with air bag
-
Carriage board:
-
Aluminum alloy, aluminum honeycomb, fiberglass, XPS composite plate
Quick Details
-
OE NO.:
-
OEM Service
-
Max Payload:
-
600kg
-
Size:
-
L*W*H:5995*2200*2630mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Falave
-
Material:
-
Aluminium honeycomb panel, stainless steel, XPS
-
color:
-
Customization
-
Type:
-
Off Road Travel Trailer/Off Road RV/Off Road Caravan
-
Axle:
-
1
-
Sleeping capacity:
-
2~4
-
UVW:
-
1800kg
-
ATM:
-
2400kg
-
Towball tare:
-
150~190kg
-
Hitch:
-
Self correcting electric traction connection for 50mm Tow Ball
-
Chassis:
-
Special high-strength off-road RV chassis
-
Suspension:
-
Double wishbone independent suspension with air bag
-
Carriage board:
-
Aluminum alloy, aluminum honeycomb, fiberglass, XPS composite plate
Products Description
CHALLENGE FARAWAY ACCOMPANY ALONG THE WAY
Caravanning is one of the best ways to explore the great outdoors. Unlike other forms of adventure, the beauty of caravanning isn’t really about where you’re headed. If it is planned properly, there’s a lot to do, see, and enjoy when you go on a road trip in a caravan or any other type of off-roading vehicle.
FALAVE
's
T6
Classic
series is a new travel trailer，s
tylish and simple appearance, with L4 level off-road capability. Suitable for urban and suburban travelling for 2~4 people. Complete configuration, spacious and comfortable, can meet the travelling life security for a week. Intelligent and convenient operation, with high safety, high reliability and high cost-effectiveness. It represents a green and healthy lifestyle in the new era.
Features of the new caravans：
High-loading off-road chassis for caravans
Intelligent synchronised brakes
Double wishbone independent suspension
Integral load-bearing body with aluminium alloy frame
Aluminium honeycomb reinforced 5 layers composite panel
Electric Intelligent Technology Features
Methanol-hydrogen battery/Combined heat and power systems
Integrated cooling, heating and hot water systems
Driving safety monitoring system
Fashionable modelling & Integral fusion design
Various internal layout options
Various types of expansion equipments
Product Paramenters
FALAVE off-road travel trailers
|
Standard Configuration List
|
|
|
|
Chassis
|
Special high-strength off-road RV chassis；Chassis electrical protection IP67
|
|
|
Suspension
|
Double wishbone independent suspension
|
|
|
Shock Absorber
|
9-section adjustable damping shock absorber * 4
|
|
|
Brake
|
Adaptive synchronized hydraulic brakes；2 EPB motors
|
|
|
Protection
|
Brake protector & 2 stainless steel anti detachment chains
|
|
|
Hitch
|
Self correcting electric traction connection for 50mm Tow Ball
|
|
|
Jockey wheel
|
Electrically controlled adjustable and foldable
|
|
|
Trailer Jack
|
Towing jack stand stabilizer legs * 4
|
|
|
Anti-collision beam
|
2 chassis anti-collision beams & 5 rear anti-collision beams
|
|
|
Step
|
1 manual step
|
|
|
Body frame
|
Integral high-strength aluminum alloy body frame
|
|
|
Carriage board
|
Aluminum alloy, aluminum honeycomb, fiberglass, XPS composite plate
|
|
|
Roof
|
High load-bearing integrated roof,Load capacity≥100KG/㎡，with 1 Trap-door 500*500mm
|
|
|
Door
|
H 1750*W 600 mm ,with screen door
|
|
|
Window
|
1 front，2 side；Acrylic sliding window with screen and sunshade
|
|
|
Awning
|
1 electric awning L2500*W2000；Rain proof expansion tent R2000 mm
|
|
|
Spare tire
|
1 Full size spare tire
|
|
|
Aircon
|
Built-in fresh air automatic air conditioning system with PM2.5 dust proof filter element
|
|
|
Heater & Hot Water
|
Electric and gas fired heater with hot water function
|
|
|
Car PCs
|
10 inch LCD Touch Screen，control Aircon ，display water 、 battery volume and temperature
|
|
|
Fridge
|
95L，Refrigeration and freezing
|
|
|
Washing machine
|
3kg automatic washing machine
|
|
|
TV
|
32 inch LCD TV
|
|
|
Water Tanks
|
Clean 75L & Grey 75L
|
|
|
Water injection
|
9mm water inlet with pre filter
|
|
|
Water pump
|
Booster diaphragm pump，7.6L/min，24V
|
|
|
Battery
|
25.6V 170AH lithium iron phosphate battery
|
|
|
Inverter
|
5Kw sine wave inverter & charging machine
|
|
|
Electrical system
|
300A mechanical type main power switch；10 circuit leakage and overload protectors
|
|
|
Charge port
|
220-250V，10A
|
|
|
Power socket
|
5 sockets with USB,220-250V，10A,
|
|
Optional and customized
In addition to standard configurations, we also offer many options for everyone to choose according to their usage habits.
According to your needs and budget, we will matchthe most suitable configuration for you.
We can also redesign your travel trailer according to your ideas and completely customize it for you.
|
Optional Configuration List
|
|
|
|
Interior Style
|
Can choose between "Warm Autumn" or "Nordic"
|
|
|
Double Awning
|
2 electric awnings L2500*W2000
|
|
|
Water injection pump
|
Submersible pump
|
|
|
Battery
|
Increase to 25.6V 300AH lithium iron phosphate battery
|
|
|
Camping equipment
|
1 table , 4 chairs，1 Aluminum alloy ladder，1 barbecue bonfire platform，all be folded
|
|
Details Images

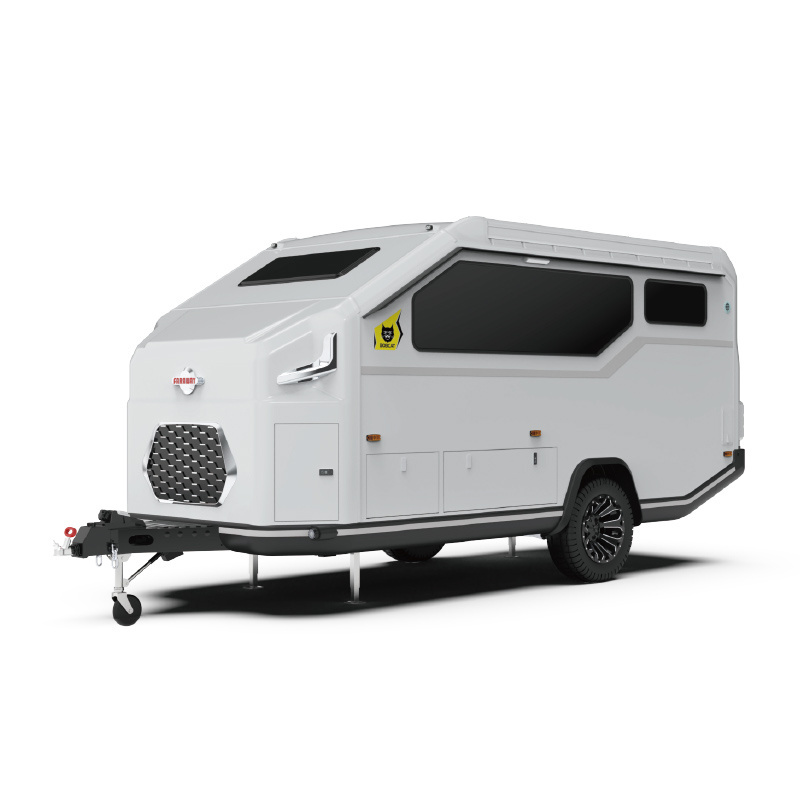

T6 off-road trailer
Simple and fashionable appearance, and the whole car function fusion design, to meet the 2 + 2 family in the long-distance travel configuration, travel flexible, economical and practical.
External extractor hob
Equipped with highland infrared wind and rain-proof fierce fire stove, adapted to high altitude; two stainless steel sinks, water purification, hot and cold water taps;
Electric lift table
The interior is extremely space-efficient, well-equipped, spacious and comfortable.
Variable living space
Variety of living space, free to switch.
Spacious and comfortable
6-stage purification instant hot water dispenser; 3kg silent automatic drum washing machine and 95L refrigerator and freezer.
In-vehicle multimedia
In-car multimedia features a 32-inch HD Bluetooth TV
nine-channel surround sound system
For professional audio-visual enjoyment
Spacious storage wardrobe
Families travelling long distances, the warmth of home
control button
Richly configured and easy to operate
Centralised LCD control system
Integration of vehicle parameters, constant monitoring of energy consumption and ambient temperature and humidity, and easy adjustment of the air conditioning system.
