Quick Details
-
Voltage:
-
380V
-
Power:
-
50/60HZ
-
Dimension(L*W*H):
-
4600*1400*2100 mm
-
Weight:
-
2000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce
Quick Details
-
Production Capacity:
-
90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CORENEW
-
Voltage:
-
380V
-
Power:
-
50/60HZ
-
Dimension(L*W*H):
-
4600*1400*2100 mm
-
Weight:
-
2000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce
Brief Introduction

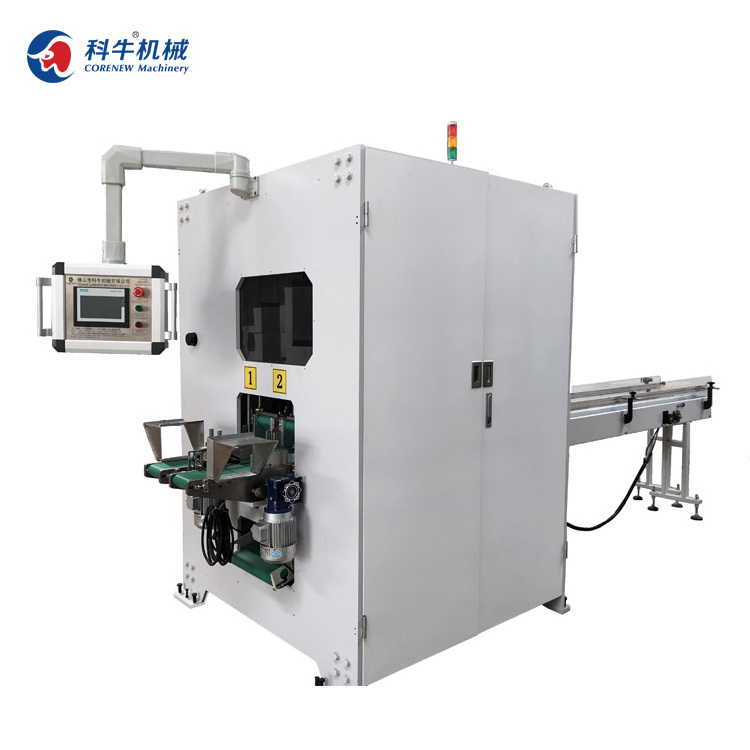

Log saw cutter use to cut the facial tissue log into regular size which can increase the working efficiency and the product quality; This machine is equipped with Touch screen with all parameter can be set on it, the cutting size can be set or modified during machine running; the servo system can guarantee the cutting size is more precocious ,Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming ; with the blade sharpening frequency and time have been set on the operation panel, it can ensure the blade remain sharp.
This machine is the ideal equipment for facial tissue cutting as it works efficiently and safely and reliably.
Specification
|
NO. |
name |
data |
|
1 |
Log length |
500~2500mm |
|
2 |
machine speed |
0~1 5 0cut/min /line |
|
3 |
diameter of the blade |
610mm |
|
4 |
Max.speed of blade |
1000R/min |
|
5 |
cutting size |
90~300mm |
|
6 |
Power consumption |
14kW |
|
7 |
Power source |
3phase, 380V 50Hz |
|
8 |
Air pressure |
0.5~0.7MPa |
|
9 |
Machine dimension |
46 00mm × 1 4 00mm × 2 1 00mm |
|
10 |
Machine weight |
2 000kg |
