Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
corn/maize/soybean
-
Process:
-
corn wet milling
-
Installation:
-
6-8 months
-
Certification:
-
ISO9001
-
Model:
-
DPF445
-
Warranty:
-
one year
-
Overall dimension:
-
1503*1129*1516mm
-
Weight:
-
1100kg
-
Power:
-
37kw
-
Name:
-
DPF Series Disc centrifuge separator for canna starch plant
-
Type:
-
corn processing machinery
Quick Details
-
Model Number:
-
DPF-445
-
Brand Name:
-
JINGHUA
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
corn/maize/soybean
-
Process:
-
corn wet milling
-
Installation:
-
6-8 months
-
Certification:
-
ISO9001
-
Model:
-
DPF445
-
Warranty:
-
one year
-
Overall dimension:
-
1503*1129*1516mm
-
Weight:
-
1100kg
-
Power:
-
37kw
-
Name:
-
DPF Series Disc centrifuge separator for canna starch plant
-
Type:
-
corn processing machinery

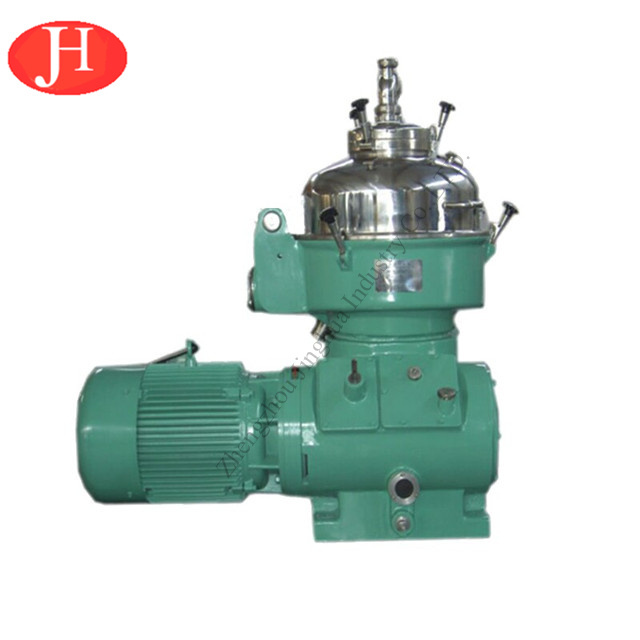

DPF Series Disc centrifuge separator for canna starch plant
DPF445 corn starch disc separator
Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
Main parameter of disc Separator model DPF445 , DPF530 and DPF550(
Alfa Laval type)
|
Main parameter |
DPF445 |
DPF5 3 0 |
DPF550 |
|
Bowl Inner Diameter |
445 mm |
5 3 0 mm |
550 mm |
|
Disc Number |
73 |
80 |
110 |
|
Bowl Rotating Speed |
5100 rpm |
4 6 50 rpm |
4500 rpm |
|
Separating Factor |
6480 |
6 40 0 |
6230 |
|
Disc: Diameter |
310 mm |
|
429 mm |
|
Throughput Capacity |
35000~40000 L/h |
4 5000 L/h |
75000 L/h |
|
Starting Time |
≈2 min |
≈ min |
≈4 min |
|
Motor Power Nominal Speed |
37 Kw 1470 rpm |
37 Kw rpm |
55 Kw 2920 rpm |
|
Nozzle |
10 |
10 |
12 |
|
Overall Dimension (L×W×H) mm |
1503×1129×1516 |
1430 ×1 174 ×15 4 4 |
2044×1320×1954 |
|
W eight (kg) |
1100 |
1550 |
2100 |
Besides: Model DPF500, DPF800,DPF1000(Door Oliver Type)
|
Main parameter |
DPF 50 0 |
DPF 80 0 |
DPF 100 0 |
|
Bowl Inner Diameter |
470 mm |
81 0 mm |
100 0 mm |
|
Bowl Rotating Speed |
5100 rpm |
3000 rpm |
270 0 rpm |
|
Nozzle |
10 |
20 |
30 |
|
Separating Factor |
6900 |
4950 |
4150 |
|
Throughput Capacity |
50 000 L/h |
130 000 L/h |
240 000 L/h |
|
Motor Power |
37 Kw |
110 Kw |
250 Kw |
|
Overall Dimension (L×W×H) mm |
2 013 × 786 × 1714 |
2 808 ×1 575 × 2319 |
3950 × 2050 × 3050 |
|
W eight |
1900kg |
6550kg |
1000kg |
Simple Canna edulis Ker Starch Production Line
Canna edulis Ker - hydraulic transport - cleaning and conveying - second cleaning - peeling -rasper or grinder - slurry washing - de-sanding - refining and concentration - vacuum dehydration - airflow drying - packaging - storage
