Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZCS
-
Color:
-
black
-
card type:
-
magnetic card and chip ic card
-
Interface:
-
usb
-
andriod support:
-
yes
-
encryption:
-
yes
-
reference standard:
-
ISO 7811,AMMVA,CADMV and other format
-
Weight:
-
85g
-
Operating Life:
-
approx. 100,000 passes
-
Size:
-
100mm(L) *34mm(W) * 30mm(H
-
Customization:
-
support
Quick Details
-
Special Features:
-
other
-
Communication Interface:
-
RFID, NFC
-
Frequency:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZCS
-
Color:
-
black
-
card type:
-
magnetic card and chip ic card
-
Interface:
-
usb
-
andriod support:
-
yes
-
encryption:
-
yes
-
reference standard:
-
ISO 7811,AMMVA,CADMV and other format
-
Weight:
-
85g
-
Operating Life:
-
approx. 100,000 passes
-
Size:
-
100mm(L) *34mm(W) * 30mm(H
-
Customization:
-
support

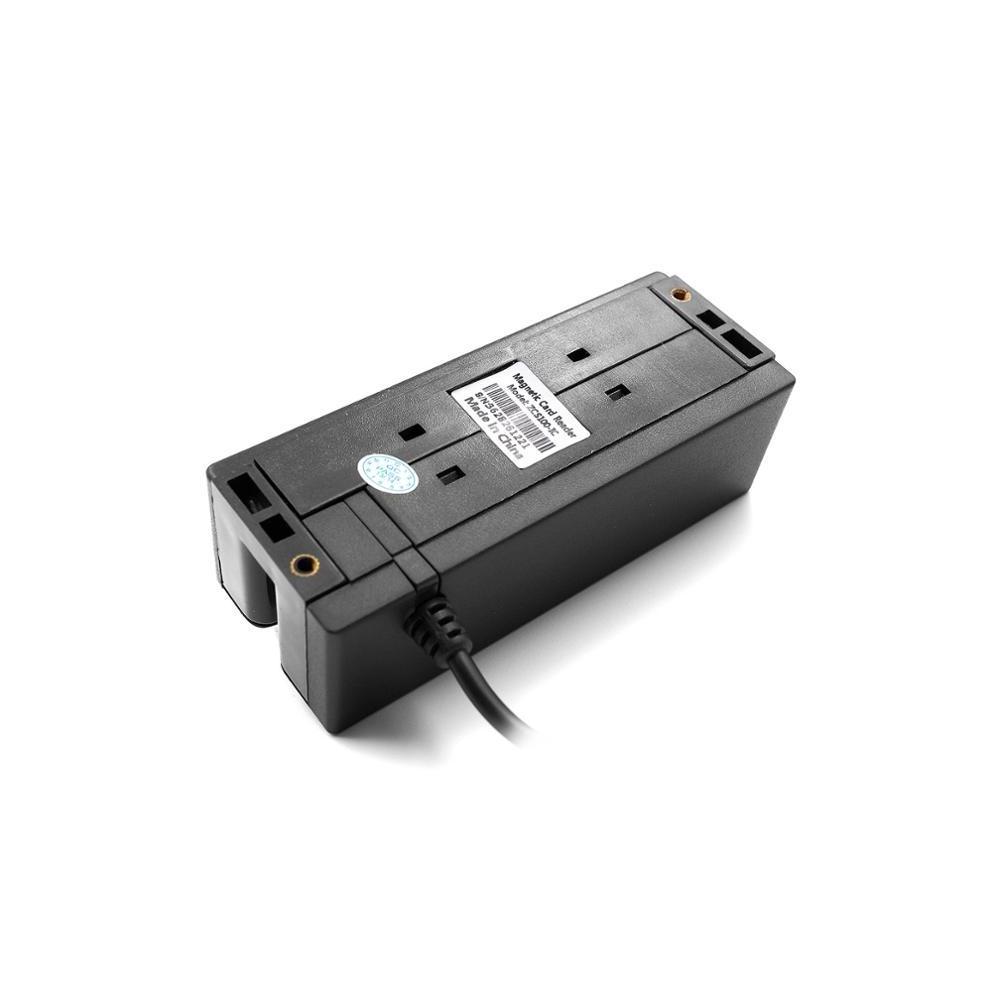

ZCS100- IC PC smart Chip credit card reader writer + all 3 tracks magnetic card reader device POS system
Product Description
Advantage:
- As government certified high tech company, our producing follows ISO 9001:2008
- Competitive price and customize service on bulk order
- Free SDK and tech support
- One year warranty
Feature:
- IC chips read/write and magnetic read
- USB interface and RS232 customized
- USB OTG customized to meet tablet
- Logo, color, shape, package and function customized
TECHNICAL SPECIFICATION:
| IC Card Supported | AT24C01A/24C02/24C04/24C08/24C16/AT24C64,SLE4432/4442,SLE4418/4428, ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0) |
| Communications | USB2.0, USB-OTG(Android 3.1 above) |
| Maximum power consumption | 100 mW |
| Temperature |
Commercial-grade:-20°~ 60 °C
Industrial-grade:-20°~ 60 °C |
| Humidity | 90% non- condensing |
| Anti-static interference | 15KV |
| Magnetic interference resistance | 19Oersted |
| Vibration resistance | Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration |
| Insulation Resistance | Hot and humid circumstances(40°,95%)Insulation resistance should not be less than 5MΩ |
| IC card | |
| Reference Standards | ISO-7816 Class A,B and C |
| Operating Life | approx. 100,000 passes |
| Card thickness | About 0.75mm |
| Insert IC card Current | 20mA |
| Operate IC card | 50mA |
| Working current | 25mA |
| Magnetic Stripe | |
| Reference Standards | ISO 7811,AMMVA,CADMV and other format |
| Swipe speed | 3 ~ 60 inches per second |
| Operating Life | approx. 300,000 passes |
| Card thickness | 0.76~1.2mm |
Using Scenario
Bus ticketing Duty free shop Food ordering Parking ticket Banking
