Quick Details
-
Weight:
-
8.3kg
-
Product name:
-

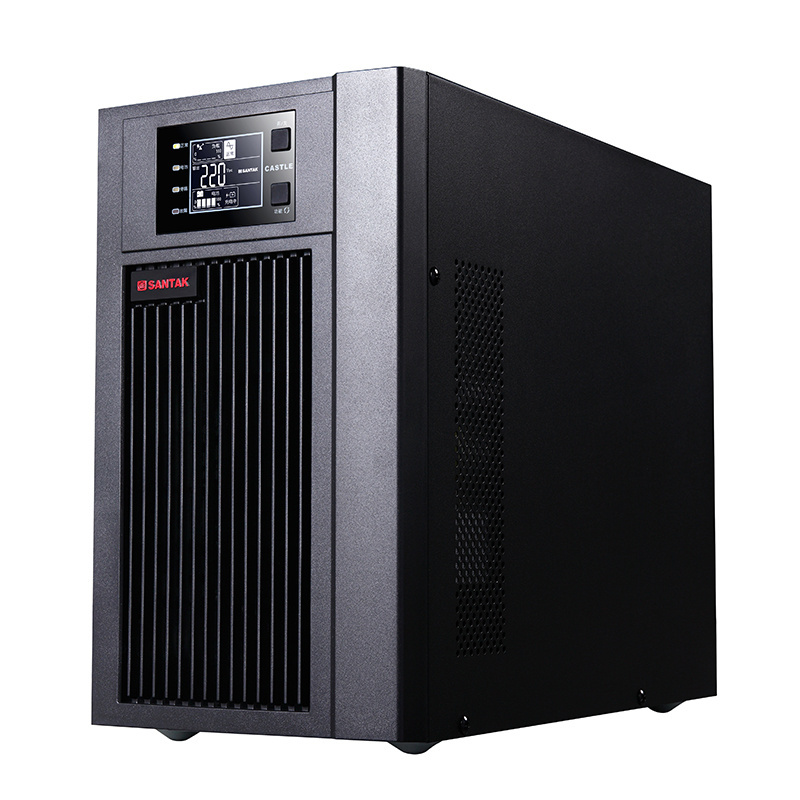

Online UPS
-
Capacity:
-
3kva 2700w
-
Transfer time:
-
0ms
-
Wave Form:
-
Pure Sinewave
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANTAK
-
Model Number:
-
C3KS
-
Weight:
-
8.3kg
-
Product name:
-
Online UPS
-
Capacity:
-
3kva 2700w
-
Transfer time:
-
0ms
-
Wave Form:
-
Pure Sinewave
Product Description
• Output power factor up to 0.9 to provide more energy
• High efficiency electrical design, high efficiency in online mode
90%, save operating costs and reduce emissions even more
• Green, in line with the EU environmental directive
demand
|
C1KS-C3KS technical parameters
|
|
|
|
|
||||
|
Model number
|
|
C1KS
|
C2KS
|
C3KS
|
||||
|
capacity
|
VA/W
|
1KVA/800W
|
2KVA/1600W
|
3KVA/2400W
|
||||
|
Input parameter
|
Input voltage range
|
115-300VAC
|
|
|
||||
|
|
Frequency range
|
40HZ-70HZ
|
|
|
||||
|
|
Input connection
|
National standard
|
|
|
||||
|
|
Input harmonic distortion
|
< 10% Nonlinear full load
|
|
|
||||
|
|
Input power factor
|
≥0.98
|
|
|
||||
|
Output parameter
|
Output voltage
|
220VAC
|
|
|
||||
|
|
Output accuracy
|
±2%
|
|
|
||||
|
|
Output connection
|
GB 10A *2
|
GB 10A *4
|
GB 10A*3 +Output terminal block
|
||||
|
|
Phase-locked range
|
46-54Hz/54-66Hz
|
|
|
||||
|
|
Output frequency (battery mode)
|
50/60Hz±0.05Hz
|
|
|
||||
|
|
Current peak ratio
|
3:1
|
|
|
||||
|
|
Output harmonic distortion
|
＜4%（Linear load）
|
|
|
||||
|
|
|
＜7%（Nonlinear load）
|
|
|
||||
|
|
Output waveform
|
Pure sinusoidal output
|
|
|
||||
|
|
Overload capacity
|
105%～150% : 47s～25s
|
|
|
||||
|
|
|
150%～200% : 25s～300ms
|
|
|
||||
|
|
|
>200% : 200ms
|
|
|
||||
|
efficiency
|
Mains mode
|
>89%
|
>90%
|
>90%
|
||||
|
Batteries and Charging parameter
|
Battery voltage
|
36VDC
|
72VDC
|
96VDC
|
||||
|
|
Battery type
|
Depends on your requirements and configuration
|
|
|
||||
|
|
Back-up time
|
|
|
|
||||
|
|
Charging time
|
|
|
|
||||
|
|
Charging current
|
6.0A
|
|
|
||||
|
Conversion time
|
Battery mode < --> Mains mode
|
0ms
|
|
|
||||
|
Reveal
|
LCD+LED
|
Digital display of load/power/input/output parameters, text and graphical display of the operating mode
|
|
|
||||
|
dimension
|
Width * height * depth（mm）
|
144x229x345
|
190x328x393
|
190x328x393
|
||||
|
Environmental parameter
|
Operating ambient temperature
|
0-40℃
|
|
|
||||
|
|
Operating environment humidity
|
20-90% (no condensation)
|
|
|
||||
|
|
noise
|
< 45dB within 1 meter
|
< 50dB within 1 meter
|
|
||||
|
Executive standard
|
|
IEC61000, IEC62040, GB7260,GB4943 TLC/Energy saving certification
|
|
|
||||
|
Communication and monitoring
|
RS232
|
Standard configuration
|
|
|
||||
|
|
Expansion slot (optional)
|
Choose from NMC card,CMC card, AS400 card or USB card
|
|
|
||||
|
|
EPO (Optional)
|
Emergency shutdown
|
|
|
||||
|
|
software
|
Winpower
|
|
|
||||
|
Matters needing attention
|
|
At an ambient temperature of 30 ° C, the output power factor can be set to 0.9
|
|
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
