Quick Details
-
Model Number:
-
TCH
-
Product name:
-
high temperature limit controller switch with alarm for HVAC
-
Application:
-
high temperature limit controller switch
-
Type:
-
HVAC/BMS Systems
-
Material:
-
cover fire retardant PC(UL94V-0), body fire retardant ABS(UL94V-0)
-
Accuracy:
-
typical ±2°C
-
Weight:
-
TCH-1: 360g; TCH-2: 515g; TCH-4: 510g
-
Adjustable set point range:
-
40~120°C
-
Approval:
-
CE certificate
-
Protection:
-
IP54
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEREN
-
Model Number:
-
TCH
-
Product name:
-
high temperature limit controller switch with alarm for HVAC
-
Application:
-
high temperature limit controller switch
-
Type:
-
HVAC/BMS Systems
-
Material:
-
cover fire retardant PC(UL94V-0), body fire retardant ABS(UL94V-0)
-
Accuracy:
-
typical ±2°C
-
Weight:
-
TCH-1: 360g; TCH-2: 515g; TCH-4: 510g
-
Adjustable set point range:
-
40~120°C
-
Approval:
-
CE certificate
-
Protection:
-
IP54
high temperature limit controller switch with alarm for HVAC
Applications & Features

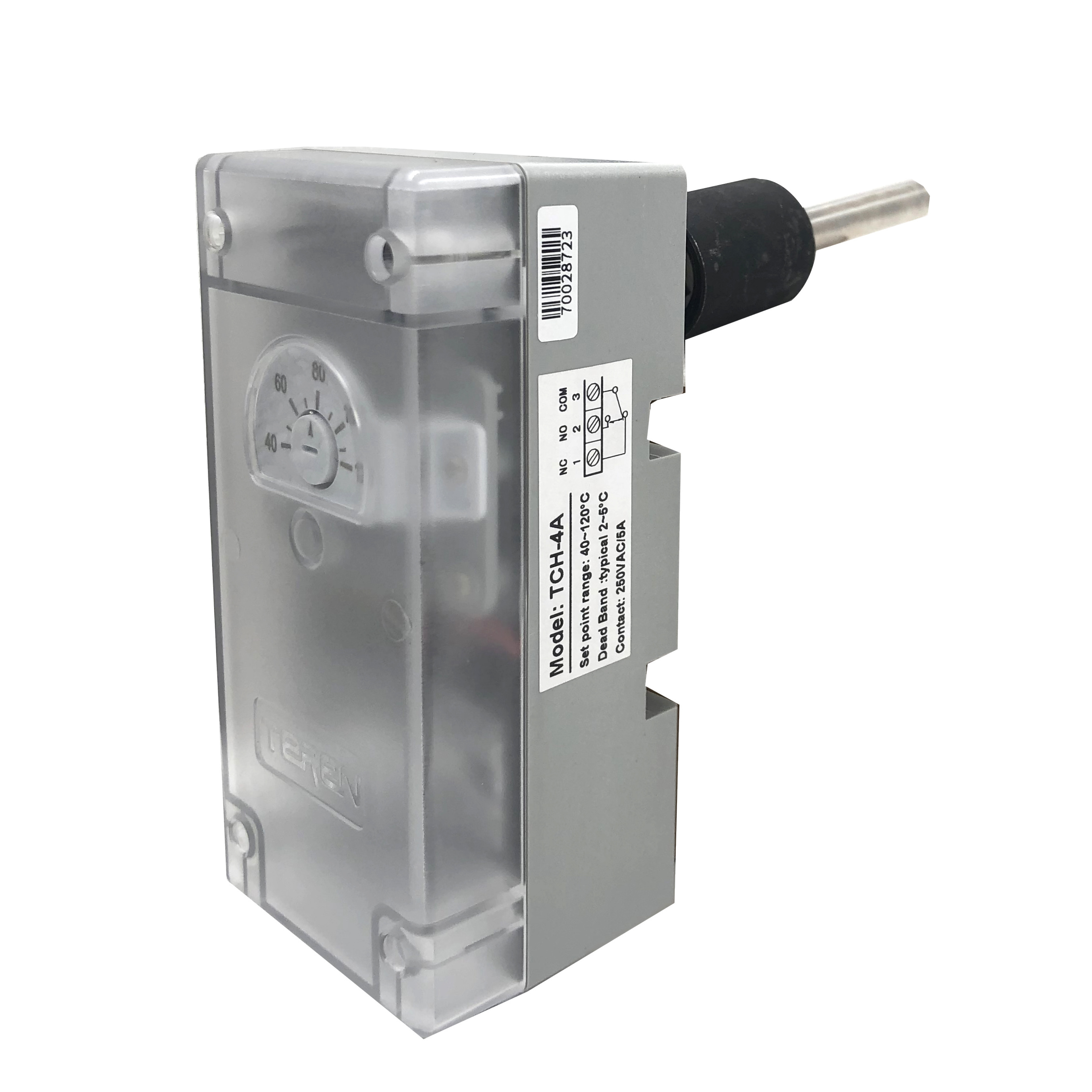

l TCH high temperature controller can close the fan, heater, or provide alarm signal when temperature reaches the set point. TCH-1 is universal type with the sensing bulb to be strapped on the measured surface. TCH-2 has a standard probe for duct mount. TCH-4 has a probe which can be inserted into the pipeline with a well to measure the fluid temperature
l Use stainless steel capillary and temperature bulb, supply accurate temperature measurement
l Optional automatic reset or manual reset
l The set point (alarm point) can be easily adjusted with readable scale
Specifications
Sensitive element: stainless steel capillary, temperature sensing bulb Φ 6mm with length 75~80mm, total length 700mm
Working environment: Probe & Bulb: - 10~120°C, <95%RH, Housing: -10~100°C, non cond.
Adjustable set point range: 4 0~120 °C
Accuracy(Automatic reset): typical ±4°C
Switch output and electrical connection:
automatic type: SPDT, screw terminal×3, 1.5mm² wire, PG9
manual type: SPST, screw terminal×2, 1.5mm² wire, PG9
Contact load: 250VAC/5A (inductive load 4A)
Contact life: ≥10 5 times
Dead band: automatic: typical 2~6°C; manual: typical 5~15°C
Electrical rate: AC1500V/1min
Insulation: ≥100MΩ in normal status, ≥10MΩ in moisture status
Housing: fire retardant PC (UL94V-0)
Probe: TCH-2: 200mm stainless steel tube;
TCH-4: 100mm stainless steel probe with well
Protection: IP54 (automatic reset), IP43 (manual reset)
Weight: TCH-1: 360g; TCH-2: 515g; TCH-4: 510g
Approvals: CE
Models
|
Model |
TCH-1 |
|
Universal high temp. alarm/controller |
|
TCH-2 |
Duct mount high temp. alarm/controller |
||
|
TCH-4 |
Immersion high temp. alarm/controller |
||
|
Automatic or Manual reset |
|
A |
Automatic reset |
|
M |
Manual reset |
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Payment terms?
100% T/T in advance.
Q3: Delivery time?
One week.
Q4: Shippment?
DHL, UPS, TNT etc.
Q5: Is OEM/ODM available?
Yes, it's available.
Q6: Warranty?
18 months.
