50l Home Brewing line small beer Equipment Stainless Conical Fermenter

50l Home Brewing line small beer Equipment Stainless Conical Fermenter

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥3 Sets

US $7800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 15-70Kw Depends

Dimension(L*W*H):: Customer's Requests

Weight:: 200 KG

Material:: Stainless Steel

Function:: Brewing Beer Brewing Equipment

Application:: Brewpub Beer Brewery Restaurant

Capacity:: 50-5000L

Control system:: Semi-automatic

Heating way:: Electicity/steam

cooling system:: Water Dimple jacket cooling

Fermentation period:: 8- 12 days

Certification:: :CE ISO UL

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Yuanou

Voltage:: 3phase/380(220

Power:: 15-70Kw Depends

Dimension(L*W*H):: Customer's Requests

Weight:: 200 KG

Material:: Stainless Steel

Function:: Brewing Beer Brewing Equipment

Application:: Brewpub Beer Brewery Restaurant

Capacity:: 50-5000L

Control system:: Semi-automatic

Heating way:: Electicity/steam

cooling system:: Water Dimple jacket cooling

Fermentation period:: 8- 12 days

Certification:: :CE ISO UL

Products Description

Product Application

Jinan Yuanou Machinery Co.,Ltd is a professional beer brewery system manufacturers .We are specialized in different size of beer brewing equipment , 50L,100L,200L,300L,500L,1000L, 3000L...Our brewery products widely used in small brewery plant ,hotel, pub for beer brew.

Our company specialized the whole beer brewing line ,including miller, auger, brewhouse system with heat exchanger, beer fermenter with cooling system ,bright beer tank, cooling chiller and ice water tank ,control panel, CIP washing system ,beer keg filling machine ,bottle/ccan fill/cap/wash machine.
We supply the Turn-key project for the whole brewery line, from your required design,manufacture,until the installation and commissioning in the final customers' plant . we have a deep foundation of cooperating with companies around the world ,USA,UK ... .

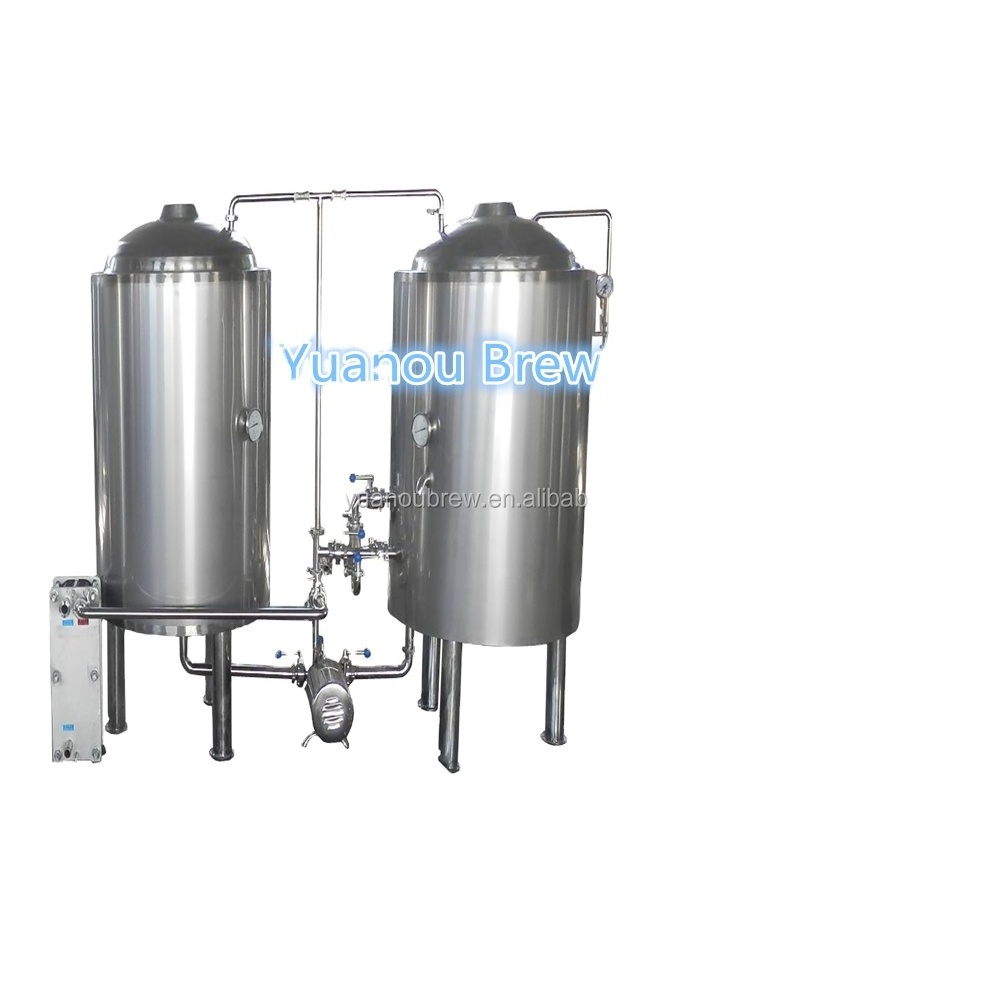

50L beer brewing system
Beer brewhouse	mash lauter tank	50L	1 pcs
		boil whipool tank	50L	1 pcs
		wort pump	1 ton/hour	1 pcs
Beer fermentation period	Beer fermenter tanks	50L	1 pcs
		Beer bright tanks	50L	1 pcs
		Beer filter	1 ton /hour	1 pcs
Necessary other system	Water cooling system	Chiller with R404	1 pcs
		Control system	PLC computer screem	1 pcs
		CIP Washing system	100L	1 pcs

Features of beer fermenters

The perfect size for large pilot batches or small scale Nano Breweries. All of our fermentors are fully welded and polished internally and externally. This version features two dimple-style glycol cooling jackets and is fully insulated.
Dual zone, dimple-style cooling jackets. One on the cone and one on the body.
1.5" Rotating Racking Arm
Includes 15 PSI Pressure Release Valve that also functions as a 1.5 PSI vacuum breaker.
Includes Sample valve on a dedicated sample valve port.
Rotating CIP spray ball included and attached to the 1.5" blow-off tube. Blow Off tube functions as CIP inlet after fermentation.
Two 1.5" ports on the body, one for the sample valve and the other can be used for temperture.
Two 1.5" ports in the top, one for the included PRV and the other can be used for a gas in port.
Threaded leveling feet.
Built-in lifting eyes welded to the dome.
Standard Items Included with our Stainless Steel Conical Fermentor:
2" Tri Clover Compatible Butterfly valve for the bottom dump, including a 2" sanitary 90 degree elbow.
1.5" Tri Clover Compatible Butterfly valve for the rotating racking arm.
1.5" Tri Clover Compatible Butterfly valve for the blow off tube.
1.5" 15 PSI Pressure Release Valve/1.5 PSI Vacuum Breaker
Dedicated Sample Valve on its own port in the fermentor body.
All of the required clamps and gaskets to be able to use your fermentor when you get it.

Easy valves operation on home brew

Take the valves for sample:when the black or blue head Consistent with the direction of the pipeline is the opening the valve

Mashing process

Add 55L water to mash tun,the height is 28cm,add the malt
12.5kg.heating to 65℃,mashing keep 1 hour

Boiling process on beer wort

.Boiling the wort,the time is 1 hour,after boiling 5 minutes add 25g
hops,then heating time to 55 minutes to add 25g hops again.

Beer sample testing

Seaing the feremnters,the pressure 0.1-0.12mpa.after 4-7 days cooling the temperature to 2-3℃,after 24h discharge the yeast,then beer out.

Pre-Sales Service

* 24 hours Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packaging
Size	4M X 2M X 2M
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH).The wooden box will be fumigated. We can do it according to customers special request.
