Quick Details
-
Power:
-
1.1KW/220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Dimension(L*W*H):
-
1000*650*500mm
-
Weight:
-
110 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Automatic rendering machine
-
Plastering Thickness:
-
0.2-3.5cm
-
Plastering Width:
-
800mm
-
Plastering Height:
-
5m
-
Length of Plastering Trowel:
-
900mm
-
Type:
-
industry microcomputer automatic vertical system
-
Motor:
-
stepping motor
-
Plastering Plate:
-
High Speed Steel
-
Electricity Phase:
-
Single/three phase
Quick Details
-
Rendering Thickness:
-
20 mm
-
Rendering Height:
-
5 m
-
Production Capacity:
-
500-600 sqm per day
-
Power:
-
1.1KW/220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Dimension(L*W*H):
-
1000*650*500mm
-
Weight:
-
110 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Automatic rendering machine
-
Plastering Thickness:
-
0.2-3.5cm
-
Plastering Width:
-
800mm
-
Plastering Height:
-
5m
-
Length of Plastering Trowel:
-
900mm
-
Type:
-
industry microcomputer automatic vertical system
-
Motor:
-
stepping motor
-
Plastering Plate:
-
High Speed Steel
-
Electricity Phase:
-
Single/three phase
Introduction of automatic plastering machine
1. It can make the machine installation fast and stable The hydraulic telescopic rod can make the machine installation in 10 seconds.
2. There are min-vibrators after the spatula, thus there is no need to worry about hollowing and adhesion.
3. The rendering machine can saving more than 20% raw material (cement& sand).
4. The capacity is as 15 professional plasterers.
Application:
1. Automatic wall rendering machine is the ideal equipment for residential buildings, office buildings etc.
2. It can plaster on cement wall, brick and concrete wall, hollow wall , light body brick, baking free brick wall etc.
3. The rendering material could be lime, cement mortar , foam mortar, gypsum etc.
4. The rendering thickness is no more than 3 cm and the height could be up to 5m.
5. It could be adjust different thickness to suit each operation.
Robot plasterer / auto wall rendering machine, Robot plasterer / auto wall rendering machine, Robot plasterer / auto wall rendering machine
Parameter of automatic plastering machine
|
Model |
CNMC-800 |
|
Product Name |
2017 automatic wall cement plaster machine |
|
Weight |
≥110KG |
|
Dimension |
1100x650x3500mm |
|
Power |
380V/220V,50Kz-60Hz,1.1KW |
|
Work efficiency |
500-600 Sqm Per Day |
|
Plastering Thickness |
0.2cm--3.5cm |
|
Plastering Width |
1100mm |
|
Plastering Height |
5m |
|
Length of Plastering Trowel |
1200 mm |
|
Portal Frame |
Foldable |
|
Position |
|
|
Motor |
Germany Stepping Motor |
|
Plastering Plate |
High Speed Steel |
|
Electricity Phase |
Single/Three Phase |
|
Beam |
Available |
|
Package |
Wooden Case Suitable for Long Way Transporation |

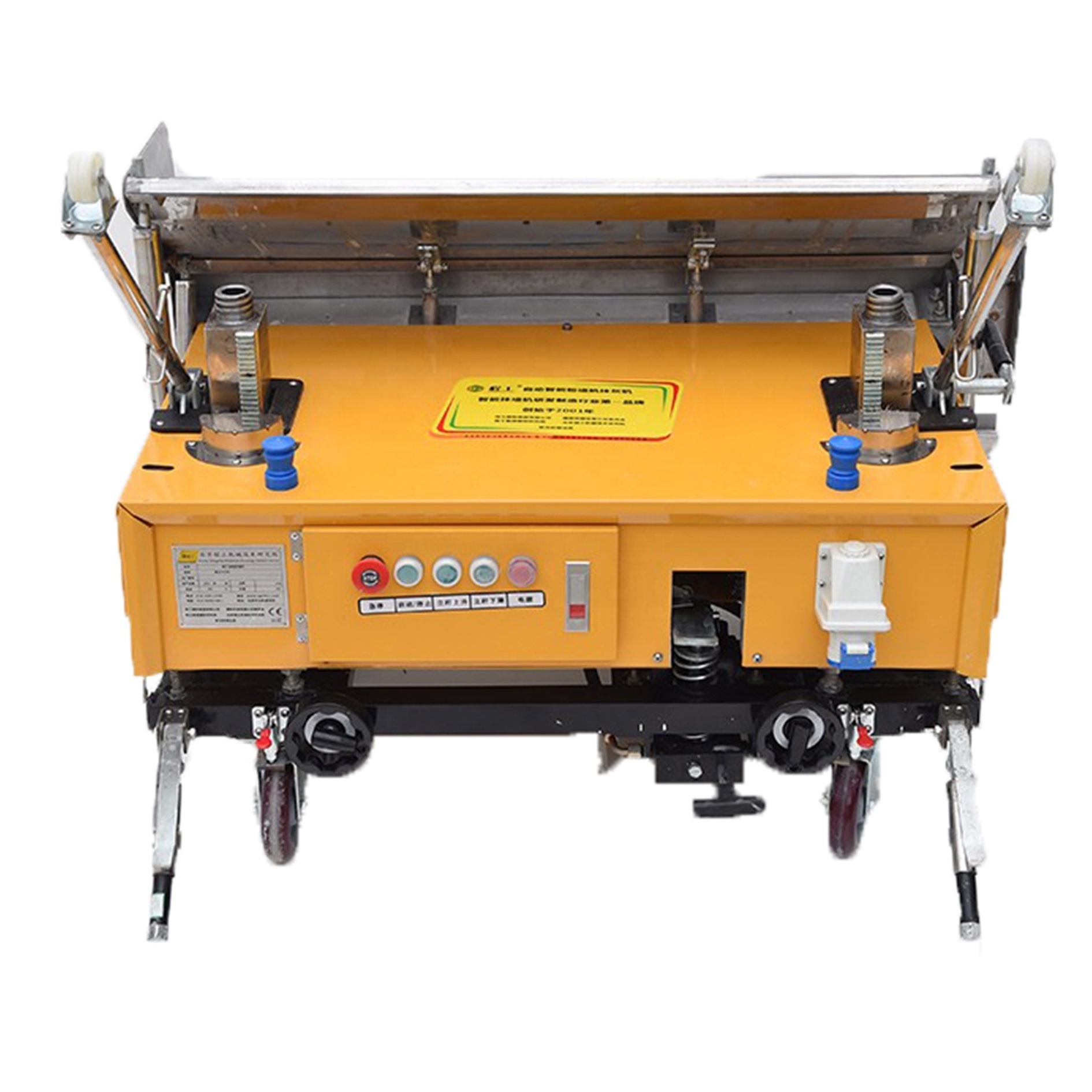

Images of automatic plastering machine
