Quick Details
-
Brand Name:
-
Fangpusun
-
Model Number:
-
FLEXmax MPPT 80
-
Work Time (h):
-
Always
-
Max PV Power:
-
7500 Watts
-
Max PV Voltage:
-
150VOC
-
Certificate:
-
CE,RoHs,SGS,IEC,ISO 9001
-
Warranty:
-
2 Years, 2 Years
-
Key words:
-
MPPT Solar Charge Controller
-
Nominal Battery Voltage:
-
12 24 48 60 v
-
Maximum Output Current:
-
80 amps
-
Maximum Solar Array STC Nameplate in 48V:
-
5000 watts
-
Maximum Solar Array STC Nameplate in 60V:
-
7500 watta
-
PV Open circuit Voltage(VOC):
-
150VDC
-
Power Conversion Efficiency:
-
97.5%
-
Color:
-
Black
-
Display:
-
LCD
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Voltage Controller, Solar System Controller, Solar Charge Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fangpusun
-
Model Number:
-
FLEXmax MPPT 80
-
Work Time (h):
-
Always
-
Max PV Power:
-
7500 Watts
-
Max PV Voltage:
-
150VOC
-
Certificate:
-
CE,RoHs,SGS,IEC,ISO 9001
-
Warranty:
-
2 Years, 2 Years
-
Key words:
-
MPPT Solar Charge Controller
-
Nominal Battery Voltage:
-
12 24 48 60 v
-
Maximum Output Current:
-
80 amps
-
Maximum Solar Array STC Nameplate in 48V:
-
5000 watts
-
Maximum Solar Array STC Nameplate in 60V:
-
7500 watta
-
PV Open circuit Voltage(VOC):
-
150VDC
-
Power Conversion Efficiency:
-
97.5%
-
Color:
-
Black
-
Display:
-
LCD

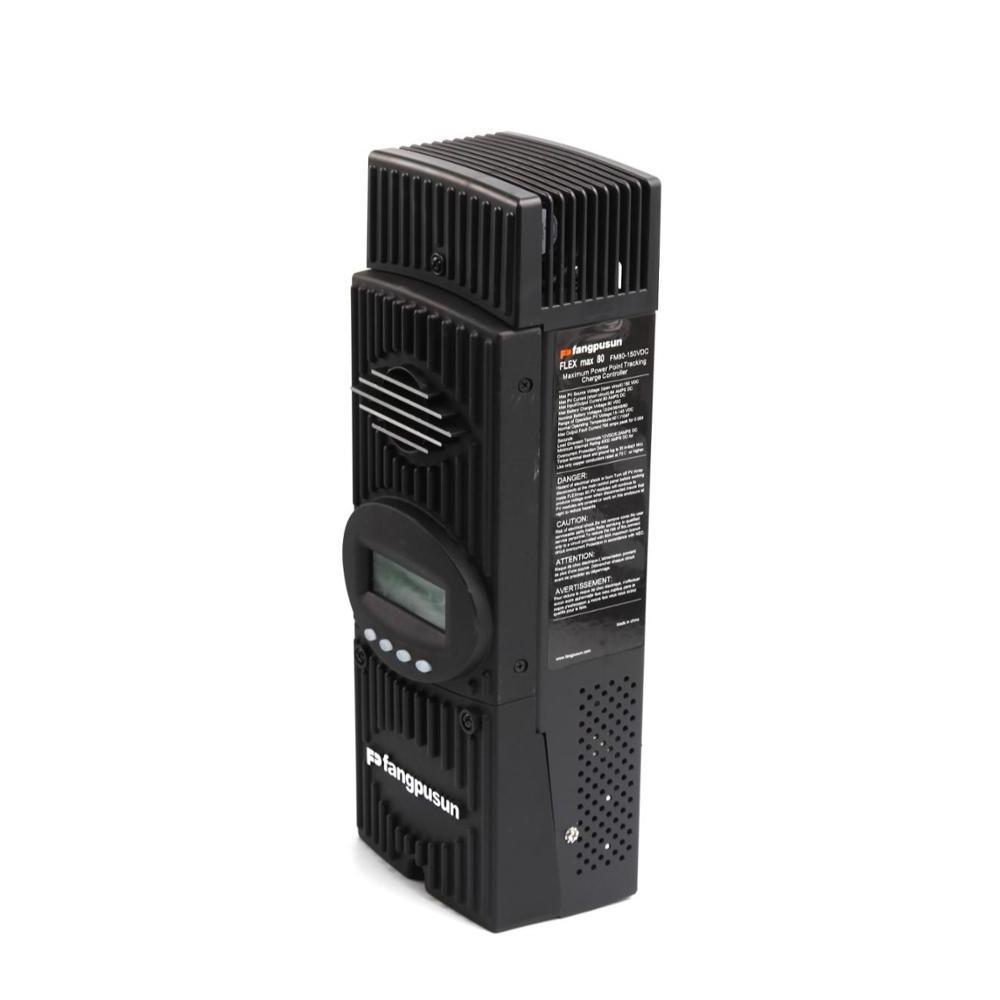

12v/24v/48v 80amp Mppt Solar Controller , Mppt Solar Voltage Regulator With lcd Display
The FLEXmax MPPT family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from fangpusun. The innovative FLEXmax MPPT software algorithm is both continuous and active , increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers . Thanks to active cooling and intelligent thermal management cooling , both FLEXmax charge controllers can operate at their full maximum current rating , 60 Amps or 80 Amps respectively , in ambient temperatures as high as 104 F (40 C).
Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun , including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank . A built-in,backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button . The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled completes integration .
FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance , efficient and versatile charge controller for your advanced power system .
|
|
FLEXmax MPPT 60
|
|
FLEXmax MPPT 80
|
|
|||
|
Nominal Battery Voltage
|
12 , 24 , 36 , 48 or 60 VDC
|
|
|
|
|||
|
Maximum Output Current
|
60 amps
|
|
80 amps
|
|
|||
|
Maximum Solar Array STC Nameplate
|
12 VDC systems 900 Watts
24 VDC systems 1800 Watts
48 VDC systems 3600 Watts
60 VDC systems 4500 Watts
|
|
12 VDC systems 1250 Watts
24 VDC systems 2500 Watts
48 VDC systems 5000 Watts
60 VDC systems 7500 Watts
|
|
|||
|
NEC Recommended Solar Array STC Nameplate
|
12 VDC systems 750 Watts
24 VDC systems 1500 Watts
48 VDC systems 3000 Watts
60 VDC systems 3750 Watts
|
|
12 VDC systems 1000 Watts
24 VDC systems 2000 Watts
48 VDC systems 3750 Watts
60 VDC systems 5000 Watts
|
|
|||
|
PV Open Circuit Voltage (VOC)
|
150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
|
|
|
|
|||
|
Standby Power Consumption
|
Less than 1 Watt typical
|
|
|
|
|||
|
Power Conversion Efficiency
|
98.1 % @ 60Amp in at 48VDC System voltage - Typical
|
|
97.5 % @ 60Amp in at 48VDC System voltage - Typical
|
|
|||
|
Charging Regulation
|
Five Stages : Bulk , Absorption , Float , Silent and Equalization
|
|
|
|
|||
|
Voltage Regulation Set points
|
10 to 80 VDC user adjustable with password protection
|
|
|
|
|||
|
Equalization Charging
|
Programmable Voltage Setpoint and Duration - Automatic Termination when completed
|
|
|
|
|||
|
Battery Temperature Compensation
|
Automatic with optional RTS installed / 5.0 mV per C per 2V battery cell
|
|
|
|
|||
|
Voltage Step-Down Capability
|
Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input
|
|
|
|
|||
|
Programmable Auxilary Control Output
|
12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
|
|
|
|
|||
|
Status Display
|
3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total
|
|
|
|
|||
|
Remote Display and Controller
|
Optional Mate or Mate 2 with RS232 serial Communications Port
|
|
|
|
|||
|
Network Cabeling
|
Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
|
|
|
|
|||
|
Data Logging
|
Last 128 days of Operation - Amp Hours , Watt Hours , Time in Float , Peak Watts , Amps , Solar Array Voltage , Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours , and Kw Hours of production
|
|
|
|
|||
|
Hydro Turbine Applications
|
Consult factory for approved Turbines
|
|
|
|
|||
|
Positive Ground Applications
|
Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)
|
|
|
|
|||
|
Operating Temperature Range
|
Minimum -40 to maximum 60 C (Power capacity of the controller is automatically derated when operated above 40 C)
|
|
|
|
|||
|
Options
|
Remote Temperature Sensor (RTS) , HUB 4 , HUB 10 , MATE , MATE 2
|
|
|
|
|||
|
Menu Languages
|
English & Spanish
|
|
|
|
|||
12v/24v/48v 80amp Mppt Solar Controller , Mppt Solar Voltage Regulator With lcd Display
About us
We are specializing in researching , developing , manufacturing and marketing of solar energy products .The company has a group of senior professional technical and management personnel , formed a set of science , industry and trade as one of the operating system.
Equipment & technology
Our company owns modern production lines and high technology quality controlling equipment , with scientific adminstration , professional engineers , highly trained technicians and skilled workers produc high quality solar system items yearly , such as Solar charge controller , Off-grid Inverters , Grid-connected Inverters and special power units etc.,
Service
A) 2 Years Warranty .
B) More than 15 years experience in the solar energy field .
C) Help you plan your solar system , Solve the problem of your installation.
D) OEM Service , can help you design your own Brand .
