- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ESPE
-
Theory:
-
Opposite type
-
Output:
-
switch quantity
-
Description:
-

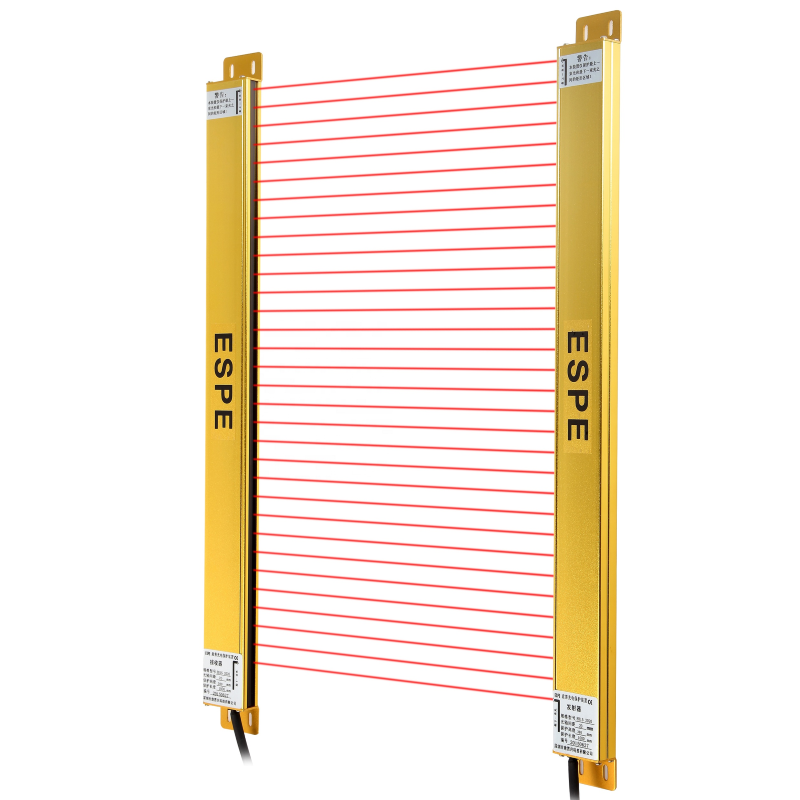

Laser Light Curtain Safety Barrier Curtains
-
Item:
-
Safety light curtain
-
Certificates:
-
CE, FCC
-
Protective height:
-
280mm
-
Beam gap:
-
40mm
-
Protection distance:
-
1.5m(standard)
-
Response time:
-
< 10 ms
-
Power voltage:
-
DC 24 V/ 12 V±20%
-
Working temperature:
-
-10-55 ℃
Quick Details
-
Use:
-
Human body/ finger protection
-
Model Number:
-
EB15- 0840
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESPE
-
Theory:
-
Opposite type
-
Output:
-
switch quantity
-
Description:
-
Laser Light Curtain Safety Barrier Curtains
-
Item:
-
Safety light curtain
-
Certificates:
-
CE, FCC
-
Protective height:
-
280mm
-
Beam gap:
-
40mm
-
Protection distance:
-
1.5m(standard)
-
Response time:
-
< 10 ms
-
Power voltage:
-
DC 24 V/ 12 V±20%
-
Working temperature:
-
-10-55 ℃
Welcome to ESPE!
Here we just show an example, please contact us for more models. You're special for us and deserve our special customization service.
- Cost-effective and high quality
- Quick delivery time
- Support ODM & OEM service
- Professional technical service support
- 20 years experience and Chinese top 2 factory
Product usage:
Vehicle separator for high-express toll, custom, car/truck detection etc;
Measuring light curtain for dimension measurement, conveyor belt, working pieces counting.
safety light curtain for safety protection in industry hazard area, equiped on press machine, shearing equipment, cutting equipment, automated assembly production line, automated welding line, hazarddous area etc.
| Protective Height | 280mm (customized) | NO. of beam | 4,6,8,10,12... (can be customized) |
| Beam Gap | 10/20/40mm | Resolution | 15/25/45mm |
| Power Volatge | DC24V ~ 30V | Output Current | ≤200mA |
| Watts | <5W | Response Time | <5ms |
| Insulation Resistance | ≥100MΩ | Detection Mode | Thru-beam |
| Sectional area | 39*15mm | Working temperature | -10 °C - 55°C |
| Anti-interference | yes 10000lux | Output type | NPN/ PNP / dual NPN/ dual PNP |
| Sensing distance | 0.1-2m (standard), can be customzed. | ||
