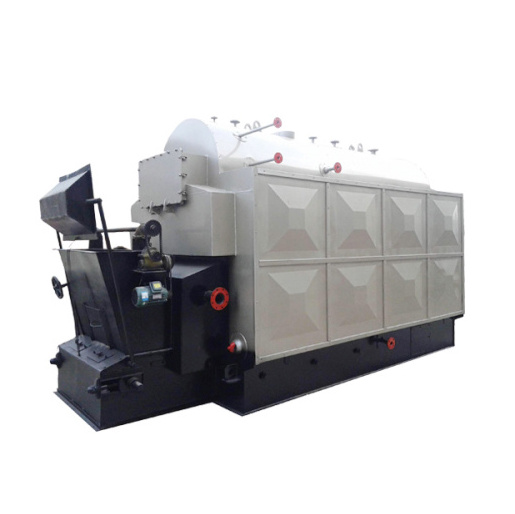

DZL biomass boiler is a single-drum vertical
biomass boiler.DZL series quick-installed chain grate biomass boilers are single-drum vertical chain grate boilers. It is suitable for burning briquette biomass fuel, but also pure coal or mixed coal and briquette biomass fuel. There is an economizer at the rear. The
excluded ash and slag can be directly used as farmyard manure, which is a high-efficiency, energy-saving and environmentally
friendly product.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yongxing
-
Dimension(L*W*H):
-
Depends on boiler capacity
-
Weight:
-
3-50 Ton
-
Product name:
-
Fuel Biomass Pellet Coal wood Chips 1400kw Hot Water Boiler
-
Design fuel:
-
Wood Pellet
-
Heat power:
-
0.35-7MW
-
Design pressure:
-
1.0Mpa
-
Control system:
-
Automatic Control System
-
Water temperature:
-
115/70 degree
-
Function:
-
Industrial Usage
-
Thermal efficiency:
-
83%
-
Boiler Structure:
-
Horizontal Three Return Fire Tube Boiler
Quick Details
-
Core Components:
-
Boiler
-
Steam Production:
-
other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yongxing
-
Dimension(L*W*H):
-
Depends on boiler capacity
-
Weight:
-
3-50 Ton
-
Product name:
-
Fuel Biomass Pellet Coal wood Chips 1400kw Hot Water Boiler
-
Design fuel:
-
Wood Pellet
-
Heat power:
-
0.35-7MW
-
Design pressure:
-
1.0Mpa
-
Control system:
-
Automatic Control System
-
Water temperature:
-
115/70 degree
-
Function:
-
Industrial Usage
-
Thermal efficiency:
-
83%
-
Boiler Structure:
-
Horizontal Three Return Fire Tube Boiler
Products Description
Wood Coal Biomass fired Hot water boiler
Equipped with a blower and induced draft fan for mechanical ventilation, and equipped with a screw slag extractor to achieve mechanical slag extraction, complete control and monitoring instruments, and safe and reliable boiler
operation.
This type of boiler uses biomass pellets processed from crop wastes such as straw, sawdust, peanut shells, etc. as fuel. The new furnace design is used to maximize the combustion of fuel. The thermal efficiency of the boiler reaches 82.6%. The waste is used as suitable fuel, and the ash after combustion can also be used as farmyard manure. It is an environmentally friendly product withhigh efficiency and energy saving.
operation.
This type of boiler uses biomass pellets processed from crop wastes such as straw, sawdust, peanut shells, etc. as fuel. The new furnace design is used to maximize the combustion of fuel. The thermal efficiency of the boiler reaches 82.6%. The waste is used as suitable fuel, and the ash after combustion can also be used as farmyard manure. It is an environmentally friendly product withhigh efficiency and energy saving.
Product Paramenters
|
Model
|
Rated
heat power |
Rated workig pressure
|
Rated Outlet/Return Temperature
|
Heat efficiency
|
Design Fuel
|
Max transport dimension
|
|
|
（MW)
|
（Mpa）
|
（℃）
|
（%）
|
|
（MM）
|
|
DZL0.35-1.0/115/70-T
|
0.35
|
1
|
115/70
|
83
|
Biomass wood coal
|
3300x2000x2656
|
|
DZL0.7-1.0/115/70-T
|
0.7
|
|
|
|
|
4800x2150x2960
|
|
DZL1.4-1.0/115/70-T
|
1.4
|
|
|
|
|
5280x2380x3030
|
|
DZL2.1-1.0/115/70-T
|
2.1
|
|
|
|
|
5500x2420x3250
|
|
DZL2.8-1.0/115/70-T
|
2.8
|
|
|
|
|
6000x2500x3400
|
|
DZL4.2-1.0/115/70-T
|
4.2
|
|
|
|
|
7200x2600x3800
|
|
DZL5.6-1.0/115/70-T
|
5.6
|
|
|
|
|
7600x2800x4200
|
|
DZL7.0-1.0/115/70-T
|
7
|
|
|
|
|
8000x3200x5580
|
|
CDZL0.35-85/60-T
|
0.35
|
0
|
85/60
|
83
|
Biomass wood coal
|
3300x2000x2656
|
|
CDZL0.7-85/60-T
|
0.7
|
|
|
|
|
4800x2150x2960
|
|
CDZL1.4-85/60-T
|
1.4
|
|
|
|
|
5280x2380x3030
|
|
CDZL2.1-85/60-T
|
2.1
|
|
|
|
|
5500x2420x3250
|
|
CDZL2.8-85/60-T
|
2.8
|
|
|
|
|
6000x2500x3400
|
|
CDZL4.2-85/60-T
|
4.2
|
|
|
|
|
7200x2600x3800
|
|
CDZL5.6-85/60-T
|
5.6
|
|
|
|
|
7600x2800x4200
|
|
CDZL7.0-85/60-T
|
7
|
|
|
|
|
8000x3200x5580
|
Details Images
Perormance Characteristics
*
Using threaded smoke pipe for heat transfer, which improves thermal efficiency and reduces energy consumption
* The application of membrane water wall structure improves the heat transfer coefficient and heat transfer effect and reduces heat loss
* The threaded smoke pipe is set in the pot shell, the overall air leakage is small, and the heat loss of exhaust smoke is small
* The welds of the boiler adopt advanced submerged arc automatic welding process to ensure the welding quality
Dust collector is arranged in the tail flue to ensure that the smoke and dust discharge meets environmental protection
requirements
* High level of automation, with automatic water adjustment, low water level interlock protection, high and low water level alarm and other functions
* Advanced arch design, forming an obvious inverted "α" flame, which is beneficial to the combustion of inferior coal and has strong adaptability to coal types
* Complete control and monitoring instruments, boiler operation is safe and reliable
* The setting of the two-wing flue allows the flue gas to enter the front smoke box smoothly, so that the temperature of the previous tube sheet is the same, and avoids cracks in the tube sheet due to temperature stress
* The grate adopts a new type of small scale grate, which adds a unique safety ring, which makes the grate run stably and
reliably, and improves the combustion efficiency
* The application of membrane water wall structure improves the heat transfer coefficient and heat transfer effect and reduces heat loss
* The threaded smoke pipe is set in the pot shell, the overall air leakage is small, and the heat loss of exhaust smoke is small
* The welds of the boiler adopt advanced submerged arc automatic welding process to ensure the welding quality
Dust collector is arranged in the tail flue to ensure that the smoke and dust discharge meets environmental protection
requirements
* High level of automation, with automatic water adjustment, low water level interlock protection, high and low water level alarm and other functions
* Advanced arch design, forming an obvious inverted "α" flame, which is beneficial to the combustion of inferior coal and has strong adaptability to coal types
* Complete control and monitoring instruments, boiler operation is safe and reliable
* The setting of the two-wing flue allows the flue gas to enter the front smoke box smoothly, so that the temperature of the previous tube sheet is the same, and avoids cracks in the tube sheet due to temperature stress
* The grate adopts a new type of small scale grate, which adds a unique safety ring, which makes the grate run stably and
reliably, and improves the combustion efficiency
