Quick Details
-
Place of Origin:
-
China
-
Product name:
-
3 Port 1000mbps Ethernet Switch Module
-
Standard:
-
IEEE802.3,IEEE802.3u,IEEE802.3af
-
Chipset:
-
Realtek 8367N
-
Input Voltage:
-
DC 9-12V
-
Warranty:
-
24 Months
-
Interface:
-
RJ45
-
Dimensions:
-
45x65MM
-
Operating Temperature:
-
-10~+75℃
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1G
-
Place of Origin:
-
China
-
Product name:
-
3 Port 1000mbps Ethernet Switch Module
-
Standard:
-
IEEE802.3,IEEE802.3u,IEEE802.3af
-
Chipset:
-
Realtek 8367N
-
Input Voltage:
-
DC 9-12V
-
Warranty:
-
24 Months
-
Interface:
-
RJ45
-
Dimensions:
-
45x65MM
-
Operating Temperature:
-
-10~+75℃
3 Port Netwo10/100/1000mbps 3-8 port poe switch module for ip camera

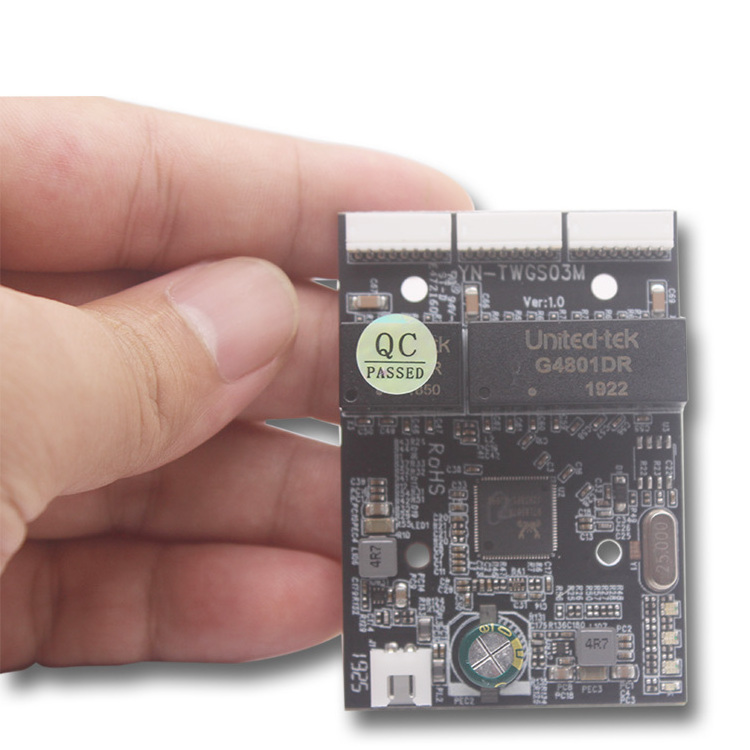

YN-TWGS03M is a unmanagement commercial Ethernet switch module. It is supports 3 Gigabit socket-type Ethernet ports and one-way DC 9-12VDC power input. It is suitable for embedded development integration of different scenarios.
1. Support IEEE802.3, 802.3U, 802.3ab, 802.3x standards
2. Supports three 10Base-T/100Base-T(X)/1000Base-T(X) three Gigabit socket-type Ethernet ports
3. Support full/half duplex mode, MDI/MDI-X automatic detection
4. Support full speed forwarding without blocking communication
5. Support 9-12VDC power input
6. MINI size 45X65MM
|
Technology |
Standard:IEEE802.3,IEEE802.3u,IEEE802.3x Flow control:IEEE802.3x. Back Pressure |
|
Interface |
Gigabit Ports:10Base-T/100Base-TX/1000Base-Tx self-adapting |
|
Transmission Distance |
Twisted pair: 100M (Standard CAT5/CAT5e cable) |
|
Indicator Light |
Interface indicator: 1-3 (LINK/ACT) yellowish green Power indicator: PWR red |
|
Switch Features |
100Mbps forwarding speed: 148810pps 1000Mbps forwarding speed:1488100pps Transmission method: Store and forward System exchange broadband: 10G Memory: 1M MAC address:2K |
|
Power Supply |
Input voltage: 12VDC (9~12VDC) |
|
Consumption |
No load: 0.9W@12VDC Load: 2W@12VDC |
|
Working Environment |
Operating temperature: -10~+75℃ storage temperature: -40~+85℃ humidity: 10%~95 %( No condensation) |
|
Product Structure |
Weight:35G Dimension: 65X45X13MM(Length X width X height) |
|
Packing List |
1* 3 port gigabit switch core module |
|
Warranty |
2 Years |
Th i s product is an embedded integrated module for conference room systems, education systems, security systems, industrial computers, robots, gateways, and so on.
Any Customized Product, Please Feel Free To Contact Us.
