Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700-6500k
-
Input Voltage(V):
-
AC/DC 24V,AC/DC 36V,AC 220V,AC 380V
-
Product Weight（kg）:
-
3.6
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Alias 1:
-

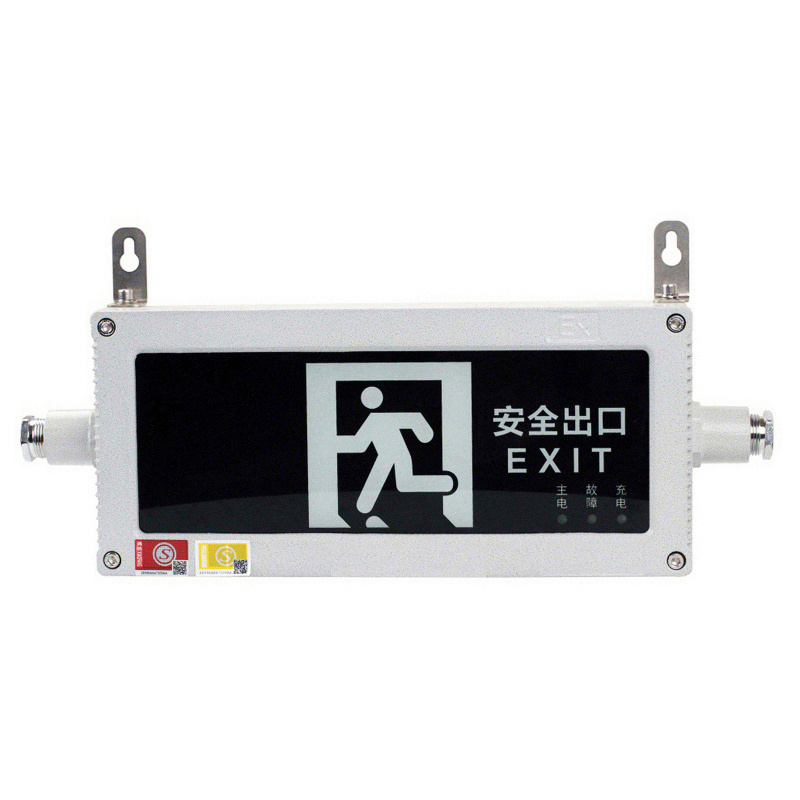

Explosion Proof Emergency Light,Explosion Proof Exit Light
-
Alias 2:
-
Explosion Proof Sign Light,Explosion Proof Fire Emergency Light
-
Function:
-
Dangerous Environments Emergency Lighting In Case Of Power Failure
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Characteristic:
-
Waterproof,Dustproof And Corrosion-Resistant
-
Security Level:
-
IP66,WF2,Ex db eb mb IIC T6 Gb,Ex tb/ib ib IIIC T80℃ Db
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Sign Orientation:
-
Out,Left,Right,Left And Right
-
Installation Position:
-
At The Exits Of Normal And Emergency Exits Leading To The Outdoors
-
Emergency Lighting Time:
-
30 Minutes,60 Minutes,90 Minutes,120 Minutes,180 Minutes
Quick Details
-
Battery Type:
-
Lead-Acid
-
Material:
-
Aluminum Alloy,304 316 Stainless Steel
-
Use:
-
Inflammable and explosive places
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
2700-6500k
-
Input Voltage(V):
-
AC/DC 24V,AC/DC 36V,AC 220V,AC 380V
-
Product Weight（kg）:
-
3.6
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Alias 1:
-
Explosion Proof Emergency Light,Explosion Proof Exit Light
-
Alias 2:
-
Explosion Proof Sign Light,Explosion Proof Fire Emergency Light
-
Function:
-
Dangerous Environments Emergency Lighting In Case Of Power Failure
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Characteristic:
-
Waterproof,Dustproof And Corrosion-Resistant
-
Security Level:
-
IP66,WF2,Ex db eb mb IIC T6 Gb,Ex tb/ib ib IIIC T80℃ Db
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Sign Orientation:
-
Out,Left,Right,Left And Right
-
Installation Position:
-
At The Exits Of Normal And Emergency Exits Leading To The Outdoors
-
Emergency Lighting Time:
-
30 Minutes,60 Minutes,90 Minutes,120 Minutes,180 Minutes
Product Parameters
|
Rated voltage/frequency
|
Inlet thread
|
Cable outer diameter
|
Degree of protection
|
Anti corrosion grade
|
|
220V/50Hz
|
G3/4
|
Φ10~Φ14mm
|
IP66
|
WF2
|
Product Description
1. Non polar connection;
2. Handheld encoder coding;
3. Short circuit independent recoverable protection;
4. The product is made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
5. Exposed stainless steel fasteners with high corrosion resistance;
6. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;
7. The evacuation sign can be freely selected by the user or customized according to the user's requirements;
8. Ultra high brightness LED light source is adopted, with low power consumption, long service life and long-term maintenance free;
9. It is normally lit, automatically charged under normal power supply, and automatically lit in case of accident or power failure.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is suitable for lighting in dangerous environments such as petroleum exploitation, oil refining, chemical industry and gas station, or for special emergency lighting in case of power failure.
About Us
FAQ
A: Are you factory or trading company?
A: Can I have a sample order?
Q: We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans
,
explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.
A: What certificates do you have
?
Q: We have passed ATEX, IECEx, and with a lot of National Patents.
A: What place are your products used in?
Q: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.
A: Can I have a sample order?
Q: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: Can youaccept customized?
Q: Yes. Please inform us and confirm the design firstly based on our sample.
|
Thanks for your visiting and hope to cooperate!!
