Quick Details
-
Model Number:
-
XV-15
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25~80C
-
Protection Level:
-
IP40
-
Electrical Life:
-
100,000 times above
-
Certificate:
-
UL TUV CCC CE
-
OEM:
-
Acceptable
-
Material Body:
-
Thermosetting plastic
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XV-15
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25~80C
-
Protection Level:
-
IP40
-
Electrical Life:
-
100,000 times above
-
Certificate:
-
UL TUV CCC CE
-
OEM:
-
Acceptable
-
Material Body:
-
Thermosetting plastic
Characteristics and Using:
• Adopt thermosetting plastic or thermoplastic;
• Small contact gap, snap action, high sensitivity and small operating travel;
• Variety of levers;
• Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.
Specification:
|
Item |
Data |
|
|
Operating speed |
0.1mm-1m/s |
|
|
Operating frequency |
Mechanical |
600times/min |
|
Electrical |
30times/min |
|
|
Insulation resistance |
|
100M Ω Above DC500V |
|
Contact resistance |
|
25m Ω initial value |
|
Withstand voltage |
Non-connection wire |
1000VAC |
|
Every terminal |
1500VAC |
|
|
Vibration |
Misoperation |
10-55Hz Amplitude 1.5mm |
|
Impact |
Durable |
1000m/s ² |
|
Misoperation |
300m/s ² |
|
|
Life |
Electrical |
100,000 above |
|
Mechanical |
1,000,000 above |
|
|
Protection degree |
IP40 |
|
|
Operating temperature |
-25~+80 ℃ |
|
|
Operating humidity |
< 85% |
|
Contact Forms:
Straight lever type: XV-152-1C25

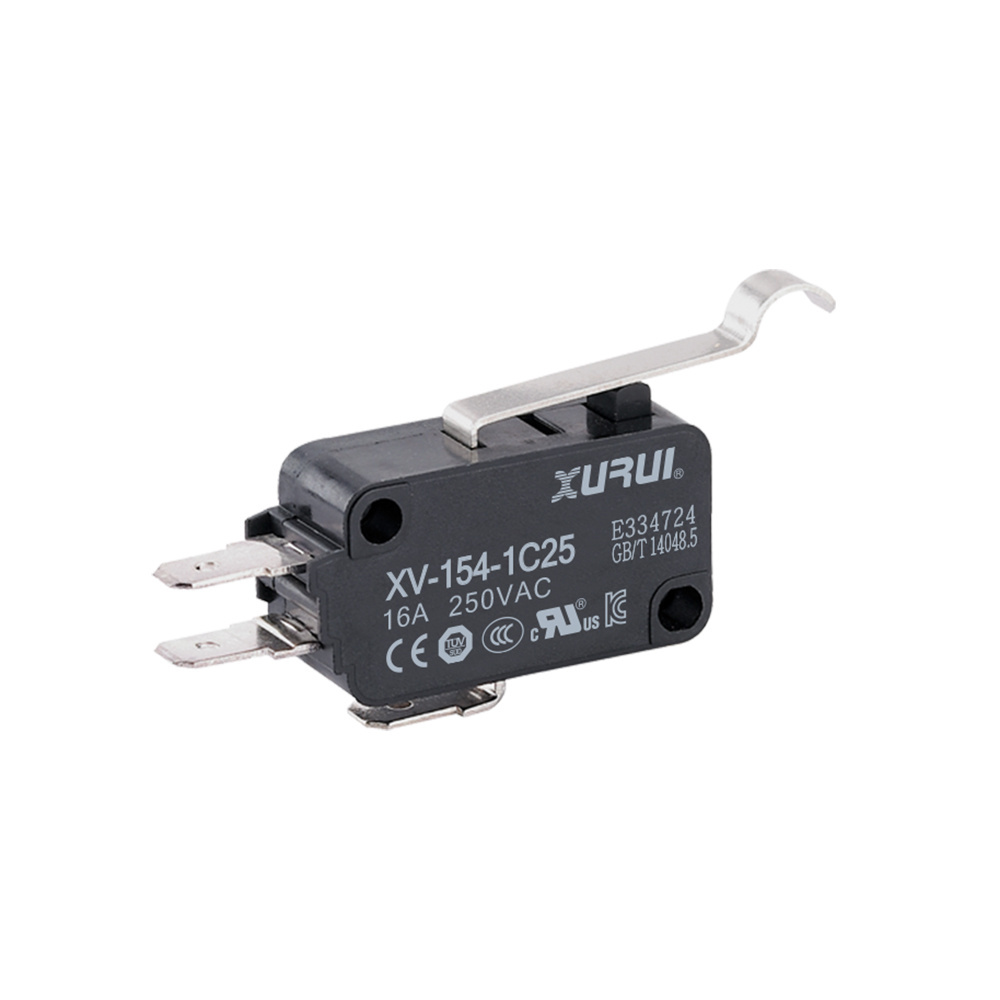

Simulated R lever type: XV-154-1C25
Roller lever type: XV-156-1C25
