Quick Details
-
Model Number:
-
GA611-50CM
-
Power:
-
0.8~1.3kw
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001 CE
-
Quality:
-
Superior
Quick Details
-
Type:
-
label making machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LULI
-
Model Number:
-
GA611-50CM
-
Power:
-
0.8~1.3kw
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001 CE
-
Quality:
-
Superior
The medical label making machine applications:

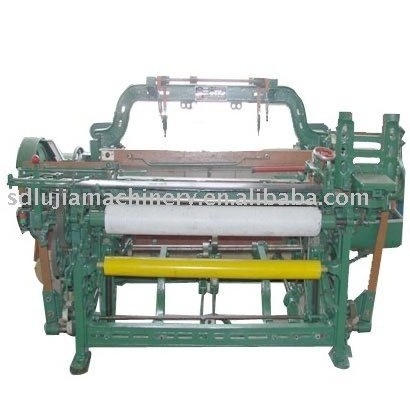

Model GA611-50CM Gauze Loom is mainly used to produce medical gauze fabric with fine cotton yarn.It's equipped with large type of wooden shuttle (395mm long),smaller motor,mechanical auto gear-shut down and selvedge-making devices.
Technical features:
(1)Type: under picking,manual weft replenishing.
(2)Reed space:420mm.
(3)Hand:right hand.
(4)Crank RPM:205rpm.
(5)Angle between reed and shuttle plate:88°30'.
(6)Full fabric diameter:300mm .
(7)Disc plate diameter:550mm .
(8)Distance between two plates:360-450mm.
(9)Overall size:1655×1392×1272mm.
(10)Motor RPM&power:960rpm&0.4kw.
(11)weight:460kg.
