Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1
Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1

Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1

FOB Reference Price: Get Latest Price
≥1 Sets
US $4500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
0.5%, 1% (liquid Level)
Voltage:
220V / 380V /450V
Place of Origin:
Jiangsu, China
Brand Name:
ALPS
Dimension(L*W*H):
3.8*2.3*2.8
Weight:
5000 KG
Name:
Water filling machine
Function:
Rinsing filling capping
Filling material:
Mineral water / pure water
Material:
SUS304 / 316
Filling volume:
250ml to 20L
Capacity:
100bph - 20000bph
Suitable for:
Drinking water
Control:
PLC (SIEMENS)
Suitable bottle:
PET bucket / PC bucket

Quick Details

Machinery Capacity:
4000BPH, 8000BPH, 12000BPH, 6000BPH
Packaging Material:
Plastic, Metal, Glass
Filling Material:
Beer, Milk, Water, Oil, Juice
Filling Accuracy:
0.5%, 1% (liquid Level)
Voltage:
220V / 380V /450V
Place of Origin:
Jiangsu, China
Brand Name:
ALPS
Dimension(L*W*H):
3.8*2.3*2.8
Weight:
5000 KG
Name:
Water filling machine
Function:
Rinsing filling capping
Filling material:
Mineral water / pure water
Material:
SUS304 / 316
Filling volume:
250ml to 20L
Capacity:
100bph - 20000bph
Suitable for:
Drinking water
Control:
PLC (SIEMENS)
Suitable bottle:
PET bucket / PC bucket
Product Description

Automatic Price Pure Drinking Mineral Water Treatment Washing Bottling Capping Function Filling Machines 3in1

*We supply complete solution for the pure drinking mineral water PET bottle filling plant . Including : Water Filtration treatment system / PET Bottle Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system / Automatic film wrapping machine and son on

200ml to 2L Bottle Sizes
5L & 10L Bottle Sizes
3Gallon to 5L Gallon Bottle sizes
Technical parameter : water bottling plant sale
Model
CGF8-8-3
CGF14-12-4
CGF18-18-6
CGF24-24-6
CGF32-32-8
CGF40-40-10
Capacity(for 500ml)
2000
3000-4000
6000-8000
8000-12000
13000-15000
16000-18000
Suitable bottle shapes
PET circular or square
Bottle diameter(mm)
Dia50-Dia115mm
Bottle height (mm)
160-320mm
Compressor air
0.3-0.7Mpa
Washing meidium
Aseptic water
Rinsing pressure
>0.06Mpa <0.2Mpa
Application
water bottling plant sale
Total power (KW)
4.4kw
4.4kw
4.4kw
5.2kw
6.2kw
7.8kw
Overall dimensions
2.3*1.9m
2.5*1.9m
2.8*2.15m
3.1*2.5m
3.8*2.8m
4.5*3.3m
Height
2.3m
2.5m
2.5m
2.5m
2.5m
2.6m
Weight(kg)
2500kg
3200kg
4000kg
4500kg
6500kg
8000kg
Detailed Images

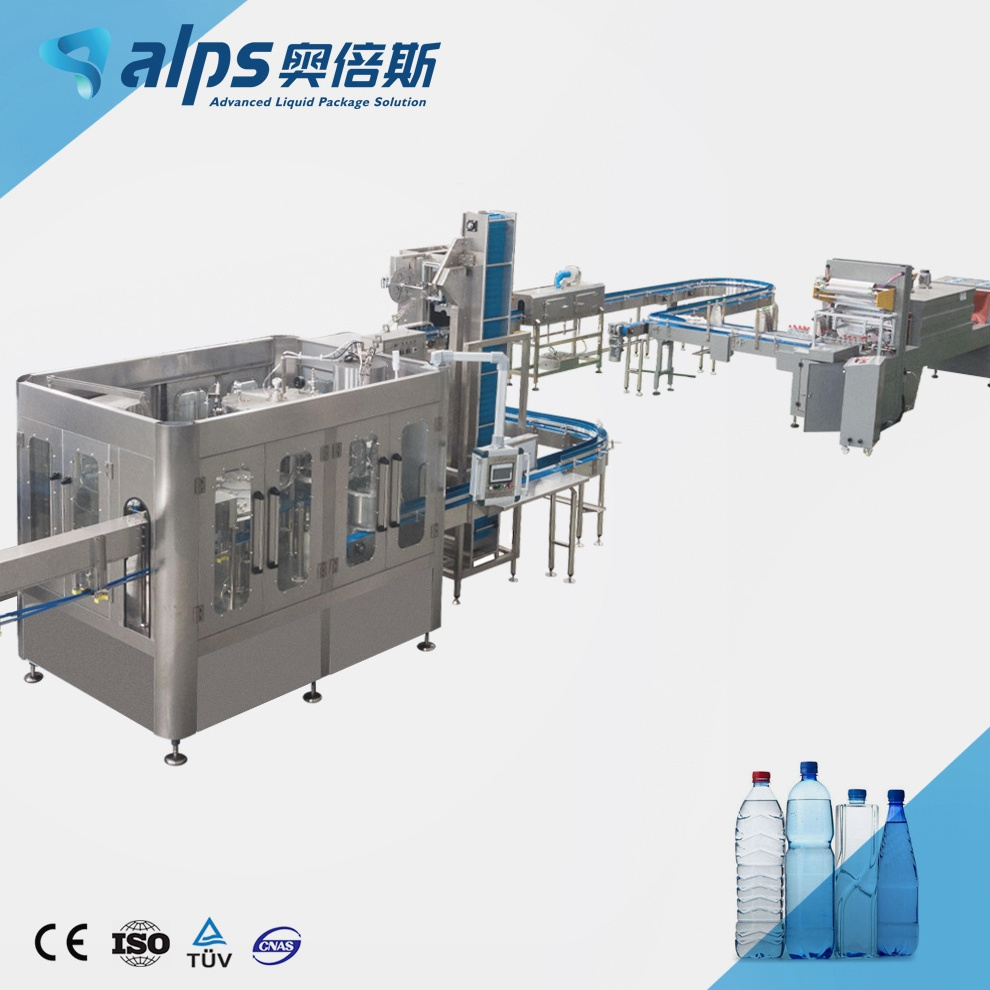

Automatic Water Washing Filling Capping 3in1 Machine (Monoblock Type)
This machine is specially designed for the filling of pure water ,mineral water and other non-gas and sugar free bveverages in bottles ,it is an integrated equipment for bottle washing ,filling and capping .
Complete Line Solution

Water Treatment System

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .

Labeling Machine

According to customer request and market demand ,we provide the better solution for the final product package design,
We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .

Bottle Packging System

We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on ..

Bottle Blowing System

We supply the Complete Bottle Blowing System ,start from PET preform injection molding machine ,and Bottle blowing machine ,including air compressor system and water cooling system .
Turnkey Project
Flow Chart :Complete Water Filling Line Project
1.PET Bottle Blowing Machine ; 2.Washing Filling Capping Machine; 3.Cap elevator ; 4.Code sprayer ; 5.Conveyor System ;
6.Automatic labeling Machine ; 7. Auotmatic PE film shrink wrapping machine ;
Factory Buidling (Steel Strucuture )
