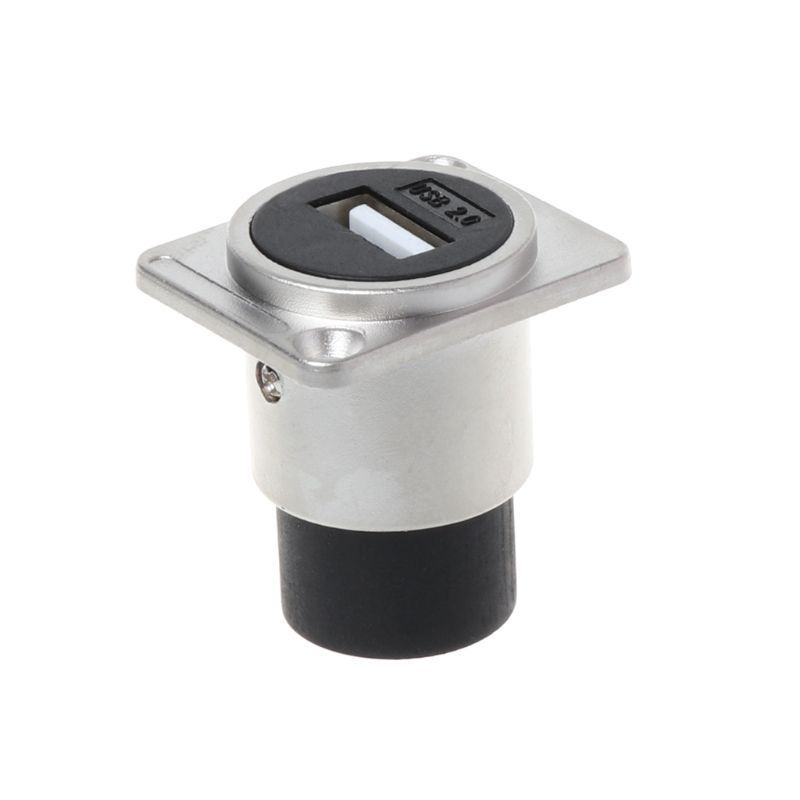

Made of metal flange,D-type USB2.0 socket,this DATA interface series is a connection system that is reinforced and easy to
install.
The USB2.0 socket is a female/female couple with 86 panel that are made to last on the panel mount bulkhead. It mounts from the
front.
Standard D type connector,it can fit into any D type wall plate.
Optional front panel mounting and panel after installation.
Perfection choice of Audio, Video, and IT Professionals!
USB socket only,other accessories demo in the picture are not included!
Specification:
Type: Connectors
Current Type: Weak Current
Material: Metal Flange
Color: Silver
Plug Function: Industrial Plug
Contact Material: Bronze(CuSn8)
Insulator Material: PBTP 15% GR
Shell Material: Zinc Diecast(ZnAl4Cu1)
Size: One Size
Panel thickness: 2.0-10mm/0.08-0.39in
Contact resistance: 0.5GΩ
Rated current per contact: 1.5A
Rated voltage: 50V
