Quick Details
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMG
-
Motor Power (kw):
-
4.5
-
Weight (KG):
-
500
-
Dimension(L*W*H):
-
1450*1000*2000mm
-
Wire Diameter Range (mm):
-
0.08 - 0.86 mm
-
Product name:
-
Automatic Toroid Winding Machine
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Winding Coil
-
Function:
-
Coil Winding Coil Winding Tool
-
Name:
-
Toroidal Taping Machine
-
Keyword:
-
Automatic Motor Wire Winding Machine
-
Used for:
-
Ring Inductor Coil
-
After Warranty Service:
-
Service
-
Winding machine Type:
-
Bobbin Winding Machine
Quick Details
-
Max. Load (KG):
-
10 KG
-
Length of Axis (mm):
-
1 mm
-
Center Height (mm):
-
2 mm
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMG
-
Motor Power (kw):
-
4.5
-
Weight (KG):
-
500
-
Dimension(L*W*H):
-
1450*1000*2000mm
-
Wire Diameter Range (mm):
-
0.08 - 0.86 mm
-
Product name:
-
Automatic Toroid Winding Machine
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Winding Coil
-
Function:
-
Coil Winding Coil Winding Tool
-
Name:
-
Toroidal Taping Machine
-
Keyword:
-
Automatic Motor Wire Winding Machine
-
Used for:
-
Ring Inductor Coil
-
After Warranty Service:
-
Service
-
Winding machine Type:
-
Bobbin Winding Machine
Product range:
Servo motors, brushless motors, stepper motors, fan motors, elevator door motors, new energy motors, refrigeration compressor motors, inverter motors, pump motors, oxygenating pump motors, fresh air system motors and other types of household appliance motors, automobile motors, smart home motors with stator winding.
Machine description:

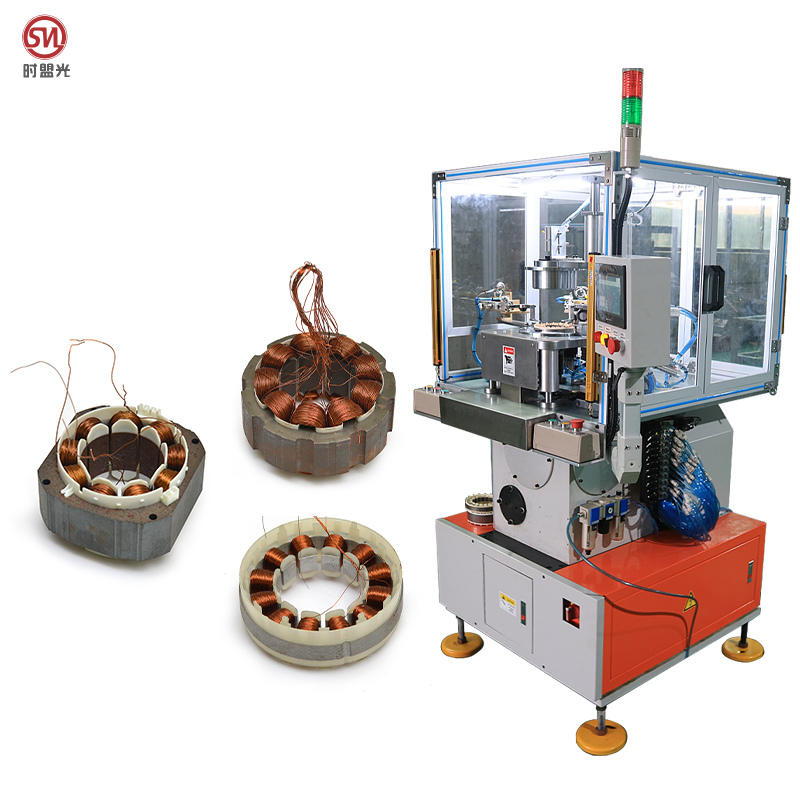

It is a high-speed stator winding machine, which can be wound with 3 or more mouths, and the winding axis can run at high speed, which is suitable for mass production; it is easy and convenient to replace different stacked thickness varieties. The machine adopts servo precision positioning, automatic winding, automatic wire arrangement, automatic transposition, automatic clamping and cutting of the wire, realizing the optimal cost performance of the batch production equipment. It is the best cost performance model for three-phase brushless motor stator.
|
3 pin brushless motor winding machine
|
|
|
|
winding wire diameter
|
Ф0.08-Ф0.86mm
|
|
|
work stations
|
1 station 3 winding
|
|
|
Stator inner diameter
|
≥Ф25mm
|
|
|
Stator outer diameter
|
≤Ф160mm
|
|
|
tator stack thickness
|
5-80mm
|
|
|
stator slots
|
6/8/9/12/18 slots
|
|
|
Controller
|
Mitsubishi
|
|
|
Transmission servo
|
3 sets
|
|
|
Air pressure
|
4-7kg/cm²
|
|
|
Power supply
|
3 phase 380V 50Hz
|
|
|
Power
|
4.5KW
|
|
Foshan shimengguang optical precision machinery co., LTD. Is a company dedicated to research and development, design, manufacturing, sales, service as one of professional electrical equipment manufacturers, the company all kinds of winding machine, electrical equipment after 15 years of accumulation, has a professional development team, has more than 20 patents, is a high and new technology enterprise, Products have been mature, efficient, stable operation in provinces and cities across the country, international customer enterprises, and well received.
Foshan shimengguang Precision Machinery understands the importance of product quality, for enterprises to maintain integrity and help customers succeed in their careers, and has always insisted on the business philosophy of quality first. An excellent team is the source of power for the enterprise and the source of confidence for each participant. We put the development of each employee's personality and the improvement of his or her ability in a vital position.
1.How can I get the price?-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
