Quick Details
-
Brand Name:
-
tjbc, TJBC
-
Model Number:
-
QL03L
-
Usage:
-
Pipe Clamp
-
Structure:
-
bolt and trunnions
-
Product name:
-

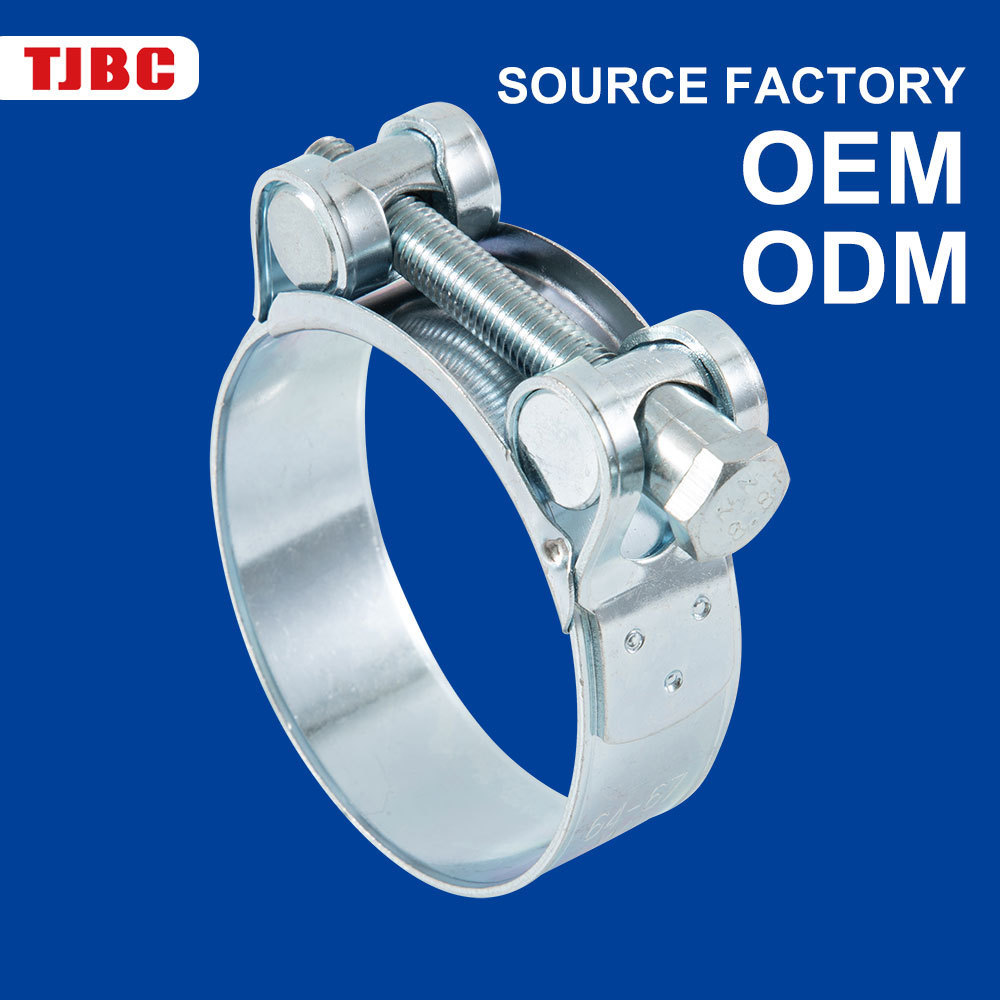

Single bolt light unitary hose clamp
-
Product Type:
-
heavy duty hose clamp
-
Certification:
-
ISO/TUV/BSCI/IATF
-
Label:
-
accept customized
-
Available Size:
-
44-47/240-252
-
Package:
-
carton
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
zinc plated steel
-
Place of Origin:
-
Tianjin, China, Tianjin,China
-
Brand Name:
-
tjbc, TJBC
-
Model Number:
-
QL03L
-
Usage:
-
Pipe Clamp
-
Structure:
-
bolt and trunnions
-
Product name:
-
Single bolt light unitary hose clamp
-
Product Type:
-
heavy duty hose clamp
-
Certification:
-
ISO/TUV/BSCI/IATF
-
Label:
-
accept customized
-
Available Size:
-
44-47/240-252
-
Package:
-
carton
| Light Unitary clamp | |||||
|
Size |
screw |
W1 |
suggested install torque |
pcs/carton |
|
|
Item no. |
bandwidth mm |
||||
| 44-47 | M6×55 | QL03LA4447 | 20×0.8 | 9Nm | 100 |
| 48-51 | M6×55 | QL03LA4851 | 100 | ||
| 52-55 | M6×55 | QL03LA5255 | 100 | ||
| 56-59 | M6×55 | QL03LA5659 | 100 | ||
| 60-63 | M6×55 | QL03LA6063 | 100 | ||
| 64-67 | M6×55 | QL03LA6467 | 100 | ||
| 68-73 | M8×70 | QL03LA6873 | 22×1.2 | 18Nm | 100 |
| 74-79 | M8×70 | QL03LA7479 | 50 | ||
| 80-85 | M8×70 | QL03LA8085 | 50 | ||
| 86-91 | M8×70 | QL03LA8691 | 50 | ||
| 92-97 | M8×70 | QL03LA9297 | 50 | ||
| 98-103 | M8×70 | QL03LA98103 | 50 | ||
| 104-112 | M8×80 | QL03LA104112 | 50 | ||
| 113-121 | M8×80 | QL03LA113121 | 50 | ||
| 122-130 | M8×80 | QL03LA122130 | 50 | ||
| 131-139 | M10×90 | QL03LA131139 | 26×1.2 | 29Nm | 50 |
| 140-148 | M10×90 | QL03LA140148 | 50 | ||
| 149-161 | M10×110 | QL03LA149161 | 50 | ||
| 162-174 | M10×110 | QL03LA162174 | 25 | ||
| 175-187 | M10×110 | QL03LA175187 | 25 | ||
| 188-200 | M10×110 | QL03LA188200 | 25 | ||
| 201-213 | M10×110 | QL03LA201213 | 25 | ||
| 214-226 | M10×110 | QL03LA214226 | 25 | ||
| 227-239 | M10×110 | QL03LA227239 | 25 | ||
| 240-252 | M10×110 | QL03LA240252 | 25 | ||
|
Material |
Band |
bridge |
Trunnion |
sleeving |
bolt |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel |
