15KV 25KV 35KV XLPE insulated HDPE sheathed ACSR conductor 300MCM 477MCM Tree wire

15KV 25KV 35KV XLPE insulated HDPE sheathed ACSR conductor 300MCM 477MCM Tree wire

FOB Reference Price: Get Latest Price

≥5000 Meters

US $0.12

≥10000 Meters

US $0.115

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Jacket:: HDPE

Place of Origin:: Hebei, China

Brand Name:: RNEDA

Model Number:: Tree wire

Product name:: Tree wire

conductor:: AAC or ACSR

Insulated:: XLPE

Sheathed:: HDPE

Certificate:: ISO9001/ISO14001 /OHSAS18001/CCC

Standard:: ICEA S-66-524

Rated voltage:: 34.5KV

Size:: 3/0awg 4/0awg 300mcm 350mcm

Cores:: single core

Sample:: free

Quick Details

Insulation Material:: Xlpe

Application:: spans where trees crowd the right-of-way,

Conductor Material:: ACSR Or AAC

Jacket:: HDPE

Place of Origin:: Hebei, China

Brand Name:: RNEDA

Model Number:: Tree wire

Product name:: Tree wire

conductor:: AAC or ACSR

Insulated:: XLPE

Sheathed:: HDPE

Certificate:: ISO9001/ISO14001 /OHSAS18001/CCC

Standard:: ICEA S-66-524

Rated voltage:: 34.5KV

Size:: 3/0awg 4/0awg 300mcm 350mcm

Cores:: single core

Sample:: free

15KV 25KV 35KV XLPE insulated HDPE sheathed ACSR conductor 300MCM 477MCM Tree wire

Applicant:

Spacer Cable - Installed with other spacer cables and a supporting messenger through a series of space-maintainingdevices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation particularly useful in congested areas.

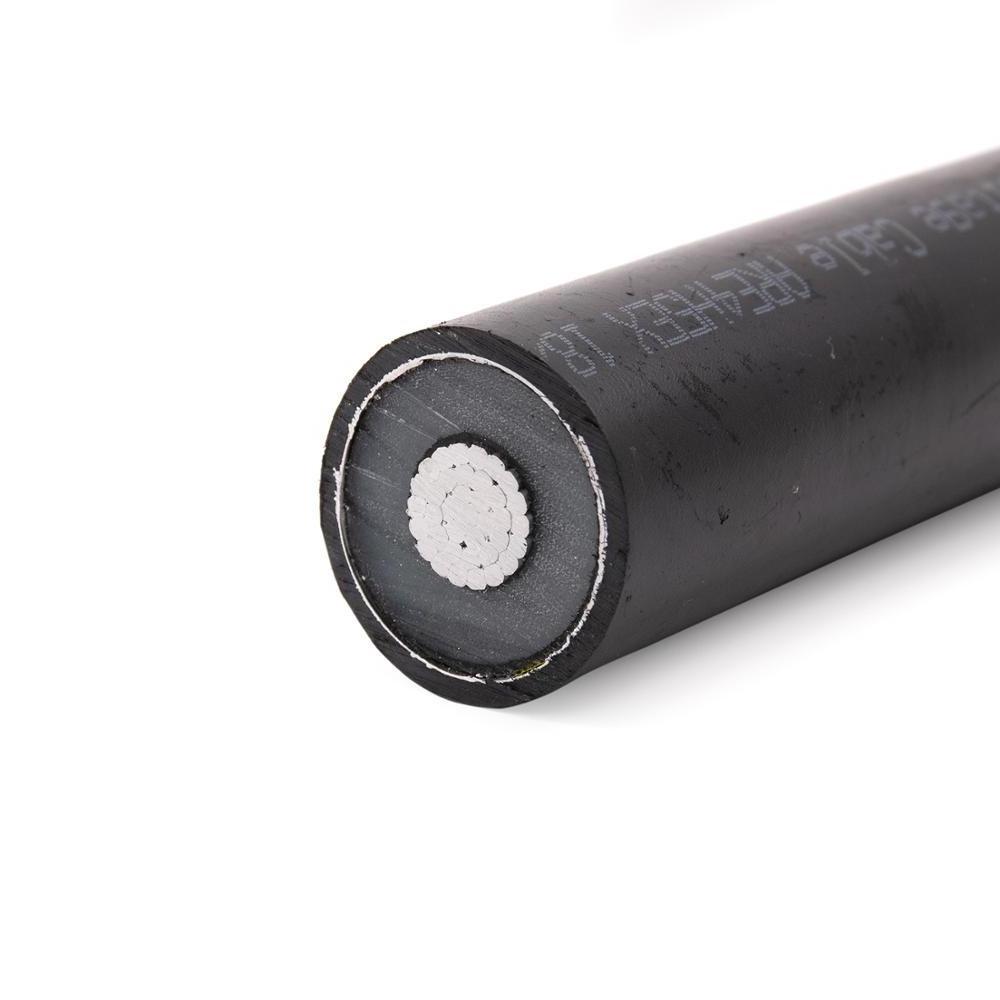

Cable structure:

Number of core : single core

Conductor : Compact stranded hard drawn aluminum wire conductor sizes 35mm2 up to 240mm2.

Conductor Shield: Semi conductor

Insulation : cross-linked polyethylene colour: Natural

Sheathed: Track resistant cross-linked polyethylene Colour: Black

Classification : Normal operation 90 C

Emergency overload conditions 130C

Short circuit conditions 250C

Voltage rating 35KV

Testing Voltage : 49KV for 5minutes

Reference : ICEA S-66-524

Tree wire (tree wire,Medium Voltage Covered Conductor) manufactured by HT meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN , IEC, NFC, SS -etc

Conductor	stranded aluminum wires (AAC)
Conductor	compacted stranded aluminum conductor (AAC)
Insulation	black thermosetting cross-linked polyethylene (XLPE)
	thermoplastic low density polyethylene (LDPE)
	thermoplastic high density polyethylene (HDPE)

Packaging & Shipping

Standard export drum,500meters/rdum,1000meters/drum or as your requirment.
