Quick Details
-
Brand Name:
-
PowMr
-
Model Number:
-
HHJ-60A
-
Work Time (h):
-
1-24 Hours Settable
-
Max PV Power:
-
2800W
-
Max PV Voltage:
-
160V
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Product name:
-
Powmr MPPT 60A Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Maximum Current:
-
60Amp
-
Rated Current:
-
60A
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Certification:
-
CE/ISO9001
-
Weight:
-
1.3KG
-
Dimensions (h x w x d):
-
8.4*4.5*1.9cm
-
Our Warehouse Location:
-
CN, USA, Germany, UK, Australia, Poland, Russia, Japan
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PowMr
-
Model Number:
-
HHJ-60A
-
Work Time (h):
-
1-24 Hours Settable
-
Max PV Power:
-
2800W
-
Max PV Voltage:
-
160V
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Product name:
-
Powmr MPPT 60A Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Maximum Current:
-
60Amp
-
Rated Current:
-
60A
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Certification:
-
CE/ISO9001
-
Weight:
-
1.3KG
-
Dimensions (h x w x d):
-
8.4*4.5*1.9cm
-
Our Warehouse Location:
-
CN, USA, Germany, UK, Australia, Poland, Russia, Japan

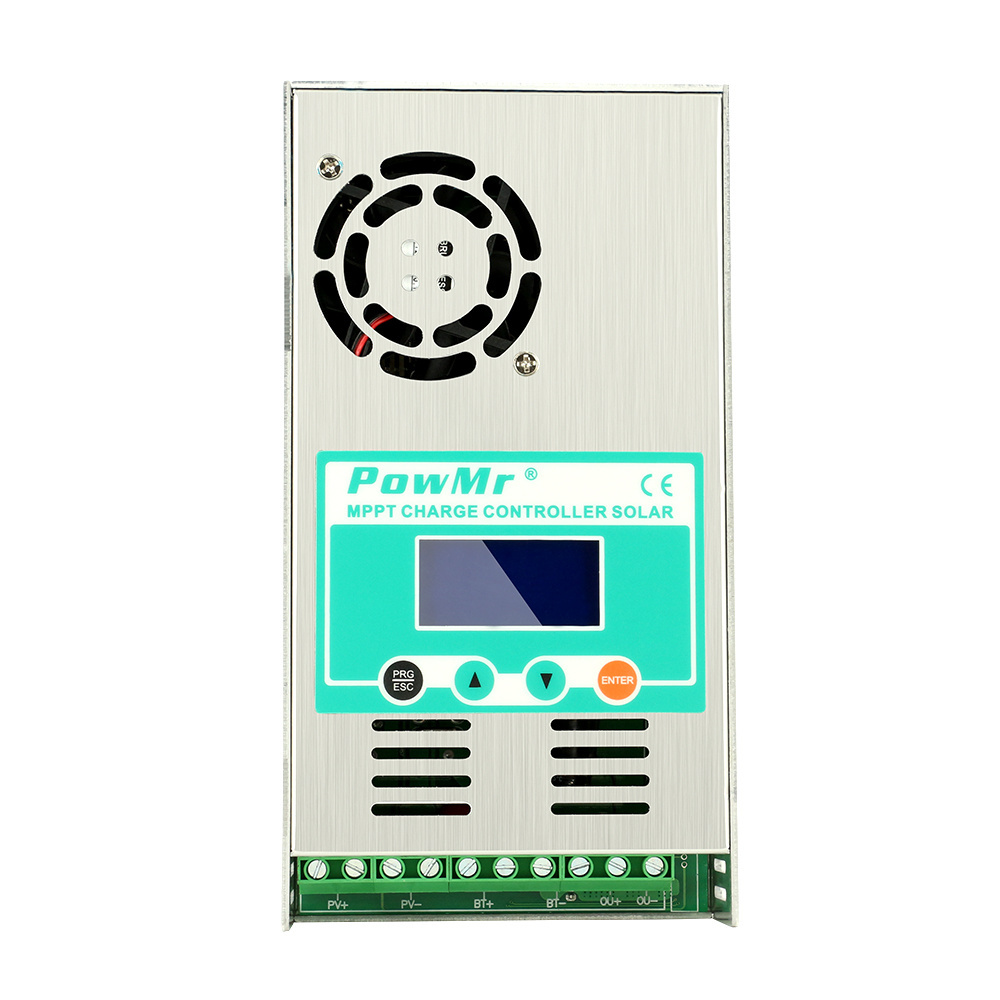

60A 12V/24V/36V/48V Auto Solar Charge Controller for Solar Cell Panel/Power System Regulator PV Home Battery Charger HHJ-60A
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
1. Keep controller away from water. Don’t use wet towel to wipe controller.
2. Keep controller in an e nvironmental temperature from -22 ℃ ~+55 ℃ . Avoid direct sunlight.
3. Keep good heat dissipation.
4. Use the pure copper wires and connect all polarity correctly.
5. The load output is only for DC load less 5A current.
6. Please don’t set any parameters if you are not professional since the controller can work fine in default condition except lithium battery.
1. The battery voltage should be more than 12V, then the controller can boot up. Install air circuit breaker between controller and batteries. Turn off the circuit breaker , then connect batteries to controller with correct polarity.
2. Install air circuit breaker between controller and PV modules. Turn off the circuit breaker , and ensure the PV polarity correct, then connect wires between PV modules and controller.
3. Turn on the air circuit breaker between controller and batteries.
4. Turn on the air circuit breaker between controller and PV modules.
5. The controller goes into the self-test mode. Its LCD displays the parameters if all is correct. And RUN lamp (under the fan inside of casing) will flash every one second. If the controller is no response, please read full manual again for reinstalling or contact us for help.
|
Models |
MPPT - 30A |
MPPT - 40A |
MPPT - 50A |
MPPT - 60A |
|
Charging mode |
3-stage : constant current(MPPT), constant voltage, floating |
|||
|
Battery voltage automatic recognition: 12V Battery |
DC9V~DC15V |
|||
|
Battery voltage automatic recognition: 24V Battery |
DC18V~DC29V |
|||
|
Battery voltage automatic recognition: 36V Battery |
DC30V~DC39V |
|||
|
Battery voltage automatic recognition: 48V Battery |
DC40V~DC60V |
|||
|
Overcharging protection voltage |
15V |
30V |
45V |
60V |
|
Limited current protection |
31A |
42A |
51A |
61A |
|
Max efficiency |
≥98.1% |
|||
|
PV utilization |
≥99% |
|||
|
Protection function |
||||
|
Temperature protection |
75 ℃ |
|||
|
Fan-on temperature |
>45 ℃ |
|||
|
Fan-off temperature |
<40 ℃ |
|||
|
Properties |
||||
|
Size (mm) |
214x115x50 |
|||
|
Net weight(Kg) |
1.1 |
|||
|
Gross weight(Kg) |
1.2 |
|||
|
Electromagnetic compatibility |
Accord to EN61000, EN55022, EN55024 |
|||
|
Enclosure |
IP21 |
|||
|
Environment al temperature |
-20℃ ~ +55℃ |
|||
|
S torage temperature |
-40℃ ~ +75℃ |
|||
