Quick Details
-
color:
-
customised
-
size:
-
small
-
weight:
-
light
-
horsepower:
-
high
-
structure:
-
simple
-
other type:
-
piston type
-
market:
-
global
-
power:
-
0.5-9.5hp
-
rotate speed:
-
300-650rpm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
type:
-
16AM vane air Motor
-
color:
-
customised
-
size:
-
small
-
weight:
-
light
-
horsepower:
-
high
-
structure:
-
simple
-
other type:
-
piston type
-
market:
-
global
-
power:
-
0.5-9.5hp
-
rotate speed:
-
300-650rpm

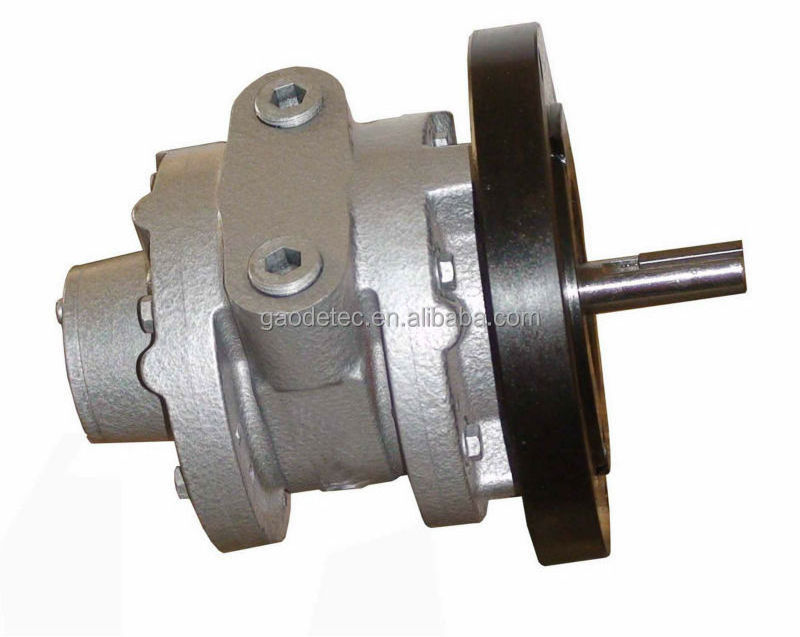

Easy Operated And Maintained 16AM Vane Air Motor
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
Easy Operated And Maintained 16AM Vane Air Moto
Easy Operated And Maintained 16AM Vane Air Motor
|
Model |
Maximum Speed |
Maximum Torque |
||||||||
|
Power |
Torque |
Rotate Speed |
Air consumption
|
Rotate Speed |
Torque |
|||||
|
hp |
kw |
Nm |
lb.in. |
rpm |
m3/h |
cfm |
rpm |
Nm |
lb.in. |
|
|
1AM |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.6 |
|
2AM |
0.93 |
0.68 |
2.20 |
19.50 |
3000 |
49.5 |
30 |
350 |
3.05 |
26.1 |
|
4AM |
1.70 |
1.30 |
4.10 |
36.00 |
3000 |
132.5 |
78 |
300 |
6.3 |
56 |
|
6AM |
4.00 |
3.00 |
10.00 |
84.00 |
3000 |
228 |
128 |
300 |
13 |
115 |
|
8AM |
5.25 |
3.90 |
14.40 |
132.00 |
2500 |
293 |
175 |
300 |
21 |
185 |
|
16AM |
9.50 |
7.00 |
34.00 |
290.00 |
2000 |
475 |
275 |
300 |
43 |
372 |
Gear Air Motor Describe:
Known industry wide for their rugged construction and reliability, air motors are used
in a variety of applications. Air Powered Gear motors are available in right angle
and in-line models offering a maximum torque range of 73 to 5,200 lb.in(8
to 587Nm) and gear ratios from 10:1 to 60:1 single reduction gear reducers.
A full line of recommended accessories is also available.
|
Model |
Gear Ratio |
Operation Data |
Maximum Torque |
||||||||
|
Power |
Torque |
Rotate Speed |
Air Consumption |
Rotate Speed |
Torque |
||||||
|
Hp |
Kw |
Nm |
Ib.in |
rpm |
M^3/h |
cfm |
rpm |
Nm |
Ib.in |
||
|
1AM-NRV-95 |
15:1 |
0.34 |
0.26 |
7.1 |
62 |
350 |
36 |
21 |
30 |
8.1 |
72 |
|
1UP-NRV-16 |
15:1 |
0.32 |
0.23 |
5.5 |
49 |
400 |
36 |
21 |
30 |
8.0 |
71 |
|
4AM-RV-10 |
10:1 |
1.26 |
0.94 |
31 |
274 |
300 |
98 |
57.5 |
30 |
48 |
425 |
|
4AM-RV-15 |
15:1 |
1.25 |
0.9 |
45.2 |
400 |
200 |
102 |
60 |
20 |
72 |
640 |
|
WG01 |
20:1 |
0.64 |
0.48 |
21 |
172 |
110 |
34 |
20 |
12 |
28 |
240 |
|
WG02 |
20:1 |
0.90 |
0.68 |
29 |
256 |
150 |
46 |
27 |
17 |
40 |
343.5 |
Stainless Steel Vane Air Motor
Stainless Steel Air Motors offer fully sealed operation with two basic models ranging from .45 to 1.7 HP (0.33 to
1.3 kW) and with motor speeds up to 10,000 RPM
|
Model |
Operation Data |
Maximum Torque |
||||||||
|
Power |
Torque |
Rotate Speed |
Air Consumption |
Rotate Speed |
Torque |
|||||
|
Hp |
Kw |
Nm |
Ib.in |
rpm |
M^3/h |
cfm |
rpm |
Nm |
Ib.in |
|
|
1AM-V-S-113 |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
|
1AM-VF-S-113 |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
|
1AM-V-S-127 |
0.45 |
0.33 |
0.31 |
2.75 |
10000 |
35.1 |
20.5 |
650 |
0.65 |
5.60 |
|
4AM-NRV-251SS |
1.7 |
1.30 |
4.1 |
36.0 |
3000 |
132.5 |
78 |
300 |
6.3 |
56.00 |
1AM:
2AM:
4AM:
6AM:
8AM:
