Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
FS-UL1620
-
Packaging Details:
-
wooden or carton case
-
Sensor type:
-
1/1.8'' 2MP CMOS
-
Pan-tilt Speed:
-
Pan 0.1°~30°/s,tilt 0.1°~15°/s
-
Pan-tilt Angle:
-
360° continuously rotating horizontally, -60°~+20° looking up and down
-
Pixel:
-
1080P
-
Certification:
-
CE, FCC, RoHS
-
Visible lens:
-
7.9-~316mm
-
Presets:
-
255, supporting lens zoom focus presets
-
Auto cruising:
-
8 paths, 10 presets each path
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof, PAN-TILT
-
Function:
-
PAN-TILT, NIGHT VISION, Thermal image
-
Customized support:
-
Online technical support, Software reengineering, OEM, ODM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
FS-UL1620
-
Packaging Details:
-
wooden or carton case
-
Sensor type:
-
1/1.8'' 2MP CMOS
-
Pan-tilt Speed:
-
Pan 0.1°~30°/s,tilt 0.1°~15°/s
-
Pan-tilt Angle:
-
360° continuously rotating horizontally, -60°~+20° looking up and down
-
Pixel:
-
1080P
-
Certification:
-
CE, FCC, RoHS
-
Visible lens:
-
7.9-~316mm
-
Presets:
-
255, supporting lens zoom focus presets
-
Auto cruising:
-
8 paths, 10 presets each path
Product Description
|
Model
|

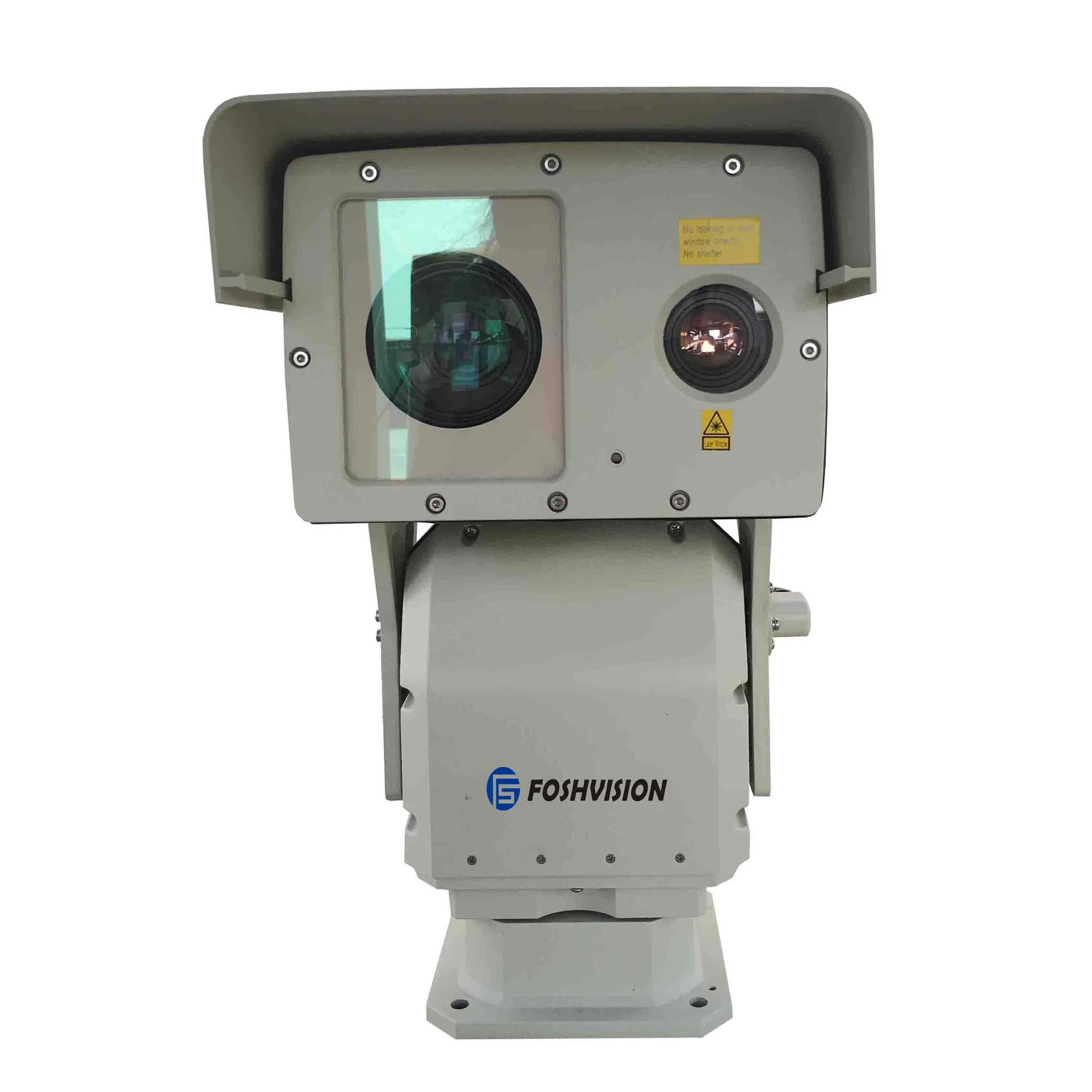

FS-UL1620 HD Middle Range Night Vision Camera
|
FS-2515
|
FS-2520
|
||
|
Night vision
|
1600m
|
|
|
||
|
Day vision
|
3100m
|
|
|
||
|
|
Power
|
10W
|
|
||
|
|
Wave length
|
810m
|
|
||
|
|
Illuminating angle
|
0.5°-30°continuous change
|
|
||
|
|
Illumination lens
|
60x zoom laser telephoto lens
|
|
||
|
|
Sensor
|
1/2.8''ProgressiveScan CMOS
|
|
||
|
|
pixels
|
1080P
|
|
||
|
|
Video bit rate
|
32Kbps~16Mbps
|
|
||
|
|
Coding mode
|
H.265/H.264/MJPEG
|
|
||
|
|
Image Adjustment
|
Brightness, contrast, saturation, sharpness
|
|
||
|
|
Electronic shutter speed
|
Auto and manual adjustment
|
|
||
|
|
Camera control
|
Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch
|
|
||
|
|
Video format
|
PAL
|
|
||
|
Video coding
|
Coded format
|
H.264/MPEG4/MJPEG
|
|
||
|
|
Video resolution
|
1080P, CIF, supporting three data rates
|
|
||
|
|
Bitrate
|
32Kbps-16Mbps
|
|
||
|
|
Frame rate
|
1-25f/s(50Hz), 1-30f/s (60Hz)
|
|
||
|
|
Subtitle overlay
|
station logo, date, time
|
|
||
|
|
Rotate angle range
|
Pan 360° continuous, tilt -60° to +20°
|
|
||
|
|
Rotate speed range
|
Pan 0.1°-9°/s, tilt 0.1°-4°/s
|
|
||
|
|
Preset
|
255, supporting lens zoom focus presets
|
|
||
|
|
Auto Cruising
|
8 paths, 10 presets each path
|
|
||
|
|
Working Temperature
|
-25℃~+55℃(-40℃~+55℃ customized)
|
|
||
|
|
Storage
|
-40℃~+65℃
|
|
||
|
|
Protection grade
|
IP66
|
|
||
|
|
Aniti-vibraion
|
GB/T15412-94
|
|
||
|
|
Anti-thunder
|
2000V
|
|
||
|
|
Weight
|
25.5kg
|
|
||
|
|
Diemnsion
|
590×260×495（L×W×H）mm
|
|
||
|
|
Installation
|
Outdoor base installation
|
|
||
-
FS-UL1620-HD
1) Adopt laser illuminating system, long lighting distance with large scope, uneasy to be discovered;
2) Day & Night low illumination megapixels color to black camera, realize continuous monitoring day and night;
3) Auto expose control, AWB, AGC;
4) Dual-stream function to meet the different network broadband;
5) Rich network protocol, good adaptability;
6) Built-in Web Server, convenient to control;
Details Images
Product Usage
Packing&Shipping
Company Introduction
Foshvision Technology Co., Ltd was founded in 2006, which is a leading thermal imaging camera and laser night vision systemsupplier and manufacturer, as well as a relying Academician Surveillance Engineering Technology Research Center in China. With the internationalized management mode, Foshvision has gained the authentication of ISO9001A-2001 quality management system,CE certificate, FCC certificate, etc.
With a R&D team of over 10 years’ experience, Foshvision’s laser camera and thermal imaging products have been widely used innational defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of public security.
Foshvision can supply all high quality security night systems and thermal systems, especially customization according to customers’ requirements. Foshvision factory is located in Shandong province, which is 1 hour trip to Beijing China, welcome to visit factory!
With a R&D team of over 10 years’ experience, Foshvision’s laser camera and thermal imaging products have been widely used innational defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of public security.
Foshvision can supply all high quality security night systems and thermal systems, especially customization according to customers’ requirements. Foshvision factory is located in Shandong province, which is 1 hour trip to Beijing China, welcome to visit factory!
