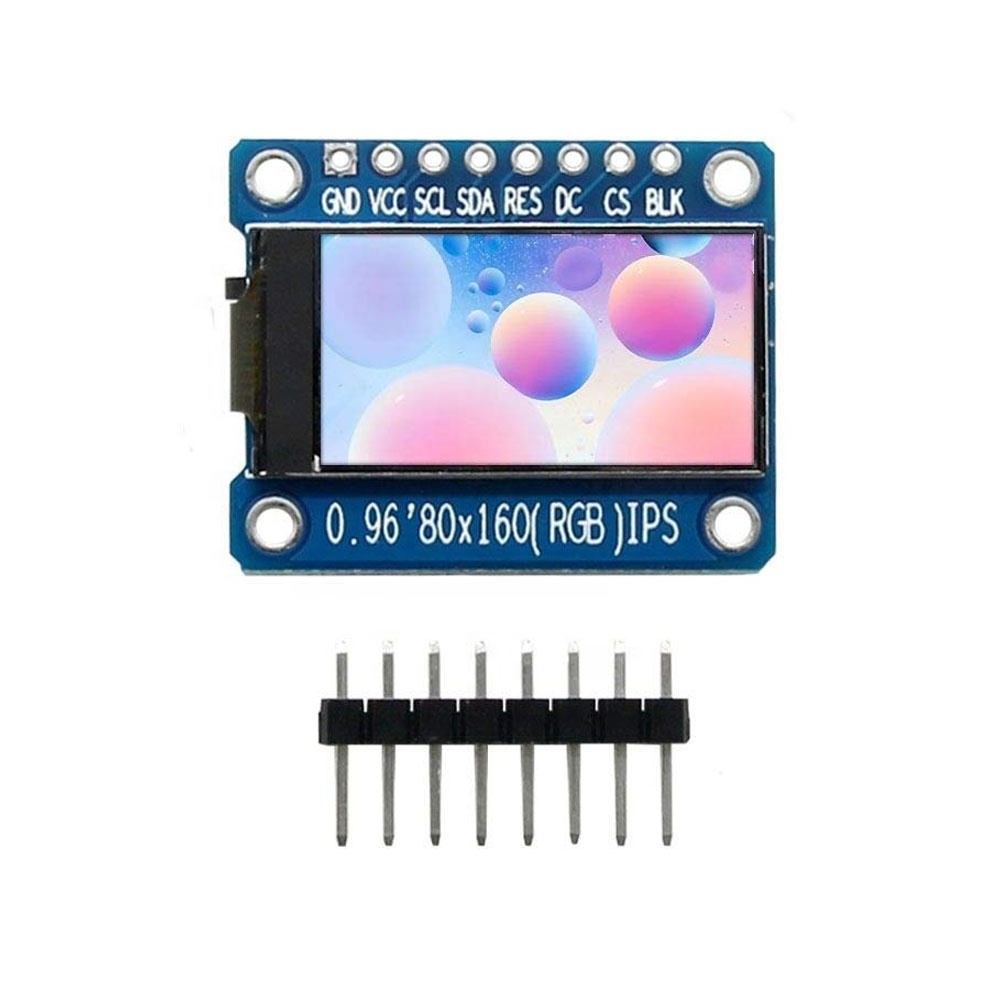

IPS 0.96 inch TFT LCD Screen Display Module 7 Pin HD 65K Full Color ST7735 Drive IC 80*160

Parameter:
1. LCD Size: 0.96 inch
2. Dot Matrix Size: 80RGB*160 Dot-matrix
3. LCD Color: 65K Full Color
4. Hardware Interface: SPI interface
5. Driver IC: ST7735
6. Operating Temperature: -20℃ ~ 70℃
8. Working Power Supply: 3.3V
9. PIN No.: 8Pin
10. Display Area: 10.8*21.696mm
11. Size: 30*24mm
12 Viewing Direction: Full viewing angle (IPS)

Pin Interface Definition:
1 GND
2 VCC (3.3-5 v)
3 SCL (SPI clock line)
4 SDA (SPI data cable)
5 RES
6 DC
7 CS
8 BLK

Package Content:
1 x IPS 0.96 inch Full Color TFT LCD Module
