Quick Details
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (TIG):
-
10 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MWELDING
-
Dimensions:
-
2000*1650*1750mm
-
Use:
-
welding
-
Weight (KG):
-
500 KG
-
price:
-
This price is a virtual price
-
Model:
-
MWHF-HM/HL
-
control ability:
-
Fully automatic
-
Intelligence level:
-
automatic welding
Quick Details
-
Max. Load Power Capacity:
-
22.36KVA
-
Output Polarity:
-
AC/DC TIG
-
Rated Duty Cycle @40°C (TIG):
-
60%
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (TIG):
-
10 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MWELDING
-
Dimensions:
-
2000*1650*1750mm
-
Use:
-
welding
-
Weight (KG):
-
500 KG
-
price:
-
This price is a virtual price
-
Model:
-
MWHF-HM/HL
-
control ability:
-
Fully automatic
-
Intelligence level:
-
automatic welding

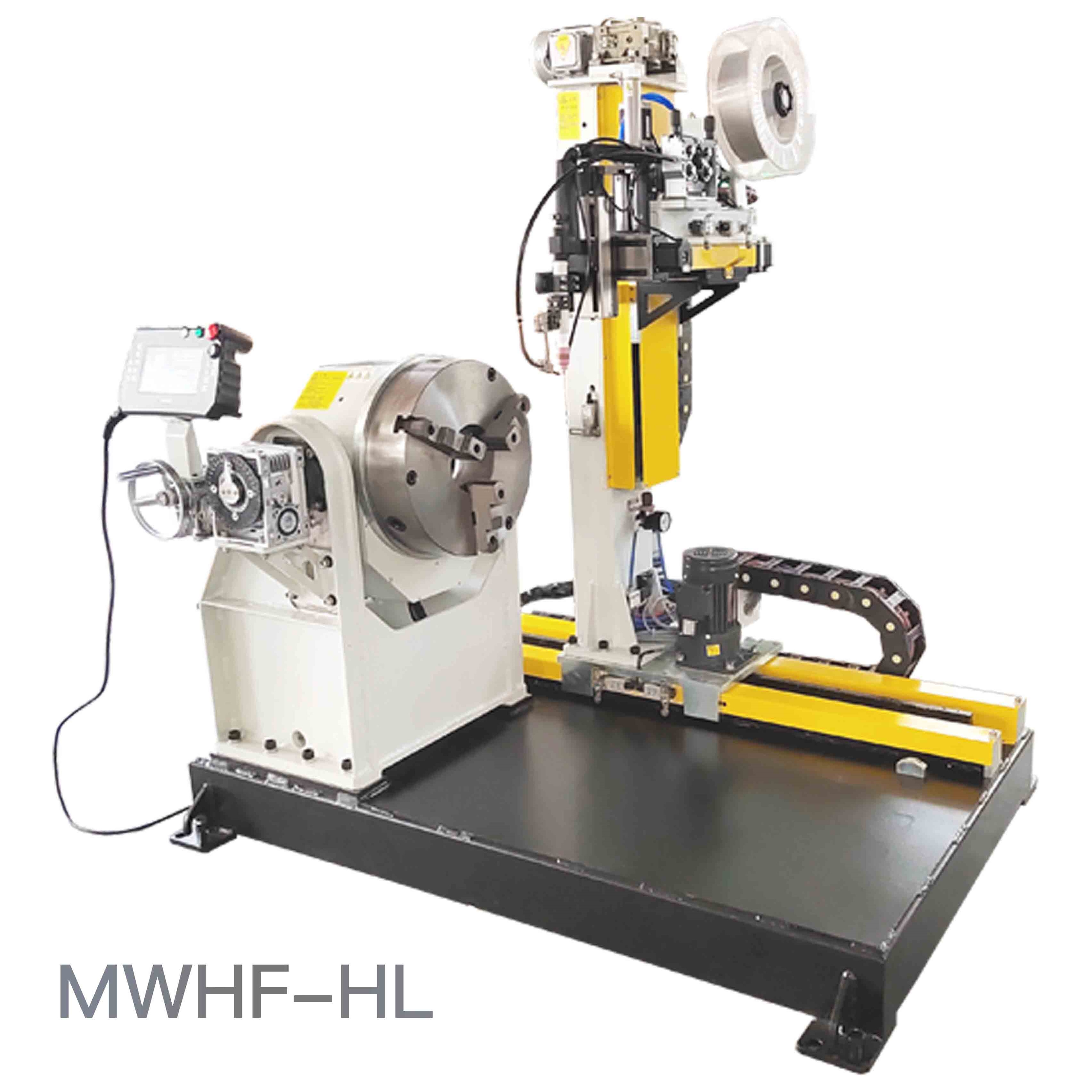

| Parameter/Model | MWHF-HM | MWHF-HL |
| Weldable workpiece diameter | Φ30—400 | Φ50—500 |
| Welding gun movement stroke | 0—1000(Customizable) | 0—1800(Customizable) |
| Spindle rotation speed | 0.1—3 rpm | 0.1—2 rpm |
| Vertical travel of bracket | 250mm(Electric) | 250mm(Electric) |
| Vertical electric slide travel | 0—500(Customizable) | 0—500(Customizable) |
| Mobile car | 0— 10 00(Customizable) | 0— 10 00(Customizable) |
| Arc length/swing slide travel | ±50° | ±50° |
| bearing | 500kg | 500kg |
Q: Are you a factory or a trading company?
Answer: We are integrated with industry and trade, producing and selling both.
Q: What is your purchasing process like?
Answer: Technical communication - Scheme design - Equipment customization - Installation and debuggingTraining guidance - Starting after-sales service.
Q: Is your after-sales service your own or outsourced to a third party?
Answer: After sales service process (except for individual parts that require external processing)Electrical accessories need to be purchased from professional suppliers, all of which are sourced from Meiwelding Collaborate with employees from various departments to complete.
Q: What is your official website address?
Answer:www.mwelding.com.cn
