Quick Details
-
Size:
-
21/24/27 inch
-
Touch:
-
10 point touch screen
-
Parts:
-
Thermal Printer,card reader,pos terminal,scanner,camera
-
Installation:
-
Wall mounted / Floor standing
-
Application:
-
parking lot /gas station / airport /store /restaurant
-
Operating System:
-
Android/other
-
Logo:
-
Can be customized
-
Service:
-
ODM / OEM
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Founya
-
Product Name:
-
self service payment ordering machine
-
Size:
-
21/24/27 inch
-
Touch:
-
10 point touch screen
-
Parts:
-
Thermal Printer,card reader,pos terminal,scanner,camera
-
Installation:
-
Wall mounted / Floor standing
-
Application:
-
parking lot /gas station / airport /store /restaurant
-
Operating System:
-
Android/other
-
Logo:
-
Can be customized
-
Service:
-
ODM / OEM
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001

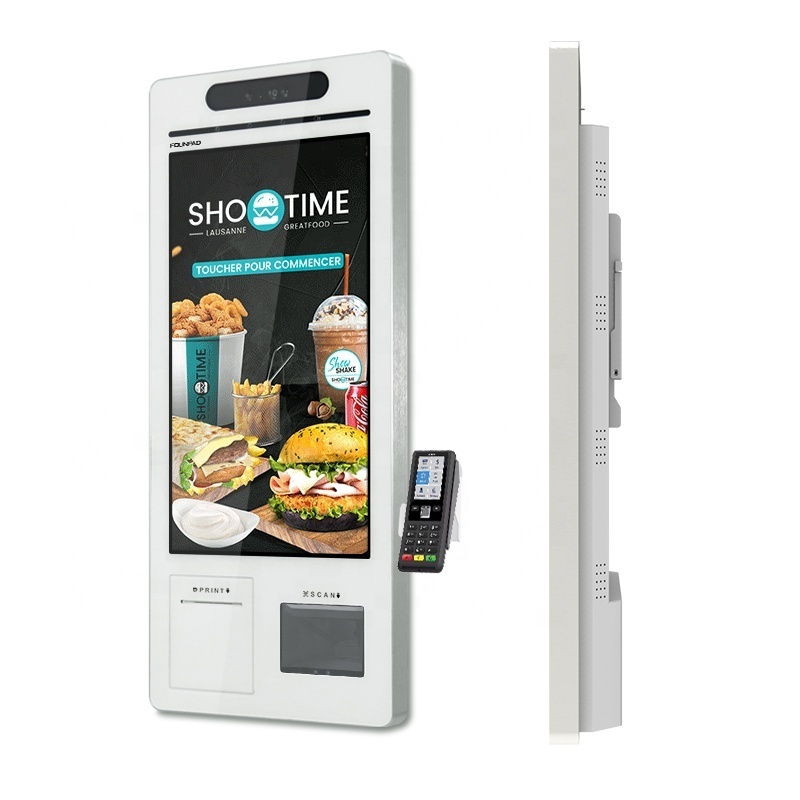

Touch Screen Checkout Machine Self Pay Machine Self Service Payment Order Kiosk For Mcdonald's/KFC / Restaurant /New Retail/ Store
Successful case
Product Description
Product Paramenters
|
Panel Specification
|
|
|
|
ITEM NO.:
|
FY-PO Self Order Kiosk
|
|
|
Screen size:
|
297*527mm (24inch) 337*599mm（27inch) /
(
customized)
|
|
|
Screen resolution:
|
1920*1080
|
|
|
Display color:
|
16.7M
|
|
|
Contrast
|
3000:1
|
|
|
Brightness (nits):
|
350 nits
|
|
|
Visual angle:
|
178°/178°
|
|
|
Response:
|
3ms
|
|
|
Touch screen:
|
10-point capacitive touch screen
|
|
|
Configuration
|
|
|
|
Main board:
|
Android RK3288，COTEX-A17 Quad-Core，1.8 GHZ;
|
|
|
RAM:
|
DDR3, 4GBDDR3, 4GB 2GB DDR3 (4GB DDR3 optiona)
|
|
|
ROM
|
8G EMMC 5.0（(16GB/32GB/64GB optional）
|
|
|
Interface:
|
MIPI output*1; eDP output *1; LVDS output1 *1;5*USB; TTL serial-port *3;Amplifier output
|
|
|
Network support:
|
100M Ethernet ,WIFI, blue booth4.0（4G&external GPS optional )
|
|
|
Panel life:
|
Above 50,000hrs
|
|
|
Operating System:
|
Android 7.1 (Upgrade to android 10)
|
|
|
Remark : Android RK3399, J1900, i3, i5, i7 series and other configurations are also available .
|
|
|
|
Appearance specifications
|
|
|
|
Over all size:
|
850*403*85mm(24inch);940*444*106mm(27inch)
|
|
|
Surface:
|
Anti-scratched tempered glass
|
|
|
Color:
|
White color
|
|
|
Power supply:
|
AC 110–240, 50-60Hz
|
|
|
Honeycomb packing:
|
950*503*185mm / 26kg (24inch) 1070*210*590mm / 27kg(27nch)
|
|
|
Thermal printer
|
Front opening thermal printer,with automatic cutter (58 & 80mm paper)
|
|
|
Scanners:
|
QR code / Barcode scanner
|
|
|
Slot for POS machine:
|
POS machine is provided by the customer
|
|
|
Camera: optional
|
2 megapixels camera,Monocular & binocular cameras face recognition
|
|
|
Card reader:optional
|
IC card reader, RFID reader, NFC card reader
|
|
|
Self order kiosk
|
Play advertising when no one touches, recommend special packages, discounts, etc.
|
|
|
Application:
|
Self order kiosk for restaurant/ store/supermarket/ new retail /station/ airport
|
|
|
Function
|
Restaurant self order kiosk,store self payment kiosk,pharmacy self checkout machine,resort self service kiosk(self order kiosk, self payment kiosk)
|
|
|
|
||
According your application,we can offer you a set of solution(hardware software),
please contact us to get the video.(case/operation/technical video,etc).
Self Order Solution
Self order kiosk, self payment kiosk, self service kiosk, self checkout machine
Company Introduction
Certifications
FAQ
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in China, you are the mostly welcomed to visit our factory anytime.
Q: How is the quality of the self order kiosk?
A: Our self order kiosk have been strictly tested high quality by QC before shipping to customers.
Q: Does the self order kiosk only use for mall?
A: Our self order kiosk use for mall, hospital, metro, bank, cinema, airport etc.
