Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMU833
-
Product name:
-
Portable handheld ultrasonic flowmeter
-
Flow range:
-
± 32m/s
-
Diameter range:
-
DN15 ~ DN6000
-
Unit of measurement:
-
meters, feet, cubic meters, liters, cubic feet, US gallons
-
Response time:
-
0~999 second (optional)
-
Accuracy:
-
indication value ± 1%, flow rate is greater than 0.2m / s
-
Power supply:
-
Rechargeable battery power supply (distribution charger)
-
Signal output:
-
1 channel OCT pulse output (pulse 6-1000ms, default 200ms)
-
Application:
-
flow measurement, flow meter, flowmeter
-
Keywords:
-
waterproof long rangeultrasonic flowmeter
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters, Variable Area Water Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMU833
-
Product name:
-
Portable handheld ultrasonic flowmeter
-
Flow range:
-
± 32m/s
-
Diameter range:
-
DN15 ~ DN6000
-
Unit of measurement:
-
meters, feet, cubic meters, liters, cubic feet, US gallons
-
Response time:
-
0~999 second (optional)
-
Accuracy:
-
indication value ± 1%, flow rate is greater than 0.2m / s
-
Power supply:
-
Rechargeable battery power supply (distribution charger)
-
Signal output:
-
1 channel OCT pulse output (pulse 6-1000ms, default 200ms)
-
Application:
-
flow measurement, flow meter, flowmeter
-
Keywords:
-
waterproof long rangeultrasonic flowmeter
Related Products
Ultrasonic flow meters are instruments that measure flow by detecting the effect of fluid flow on an ultrasonic beam (or
ultrasonic pulse).

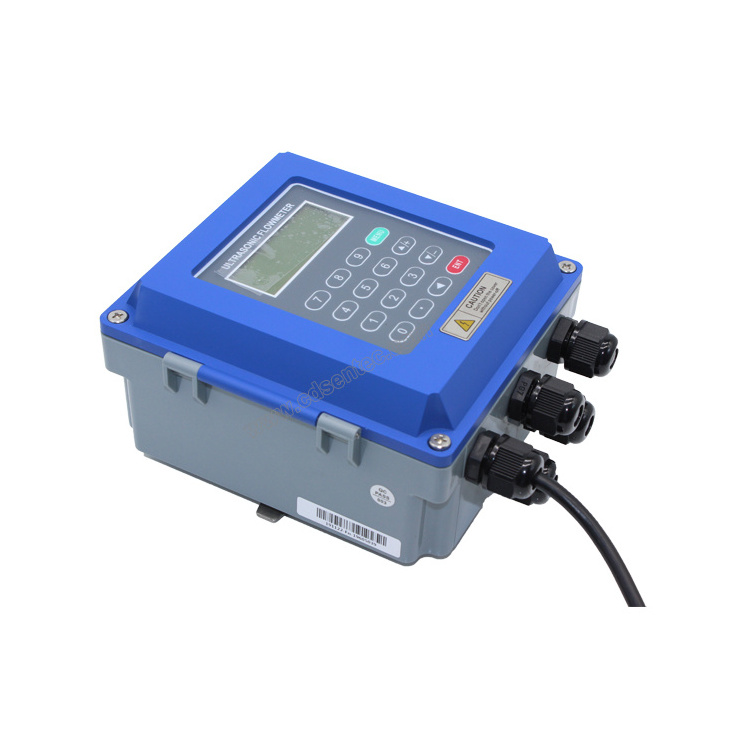

FMU833 Clamp-on ultrasonic flow meters are based on the principle of “velocity difference method” to measure the liquid flow in a circular tube. It adopts advanced multi-pulse technology, signal digital processing technology and error correction technology,which makes the flow meter more suitable for the environment of the industrial site, and the measurement is more convenient,economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in petroleum,chemical, metallurgy, electric power, water supply and drainage and other fields.
ultrasonic pulse).
FMU833 Clamp-on ultrasonic flow meters are based on the principle of “velocity difference method” to measure the liquid flow in a circular tube. It adopts advanced multi-pulse technology, signal digital processing technology and error correction technology,which makes the flow meter more suitable for the environment of the industrial site, and the measurement is more convenient,economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in petroleum,chemical, metallurgy, electric power, water supply and drainage and other fields.
|
SPECIFICATION
|
|
|
|
Pipe Diameter
|
DN15~6000mm
|
|
|
Power supply
|
DC8~36V or AC85~264V
|
|
|
Output
|
1 way 4~20mA output, electric resistance 0~ 1K, accuracy 0. 1%(optional)
1 way OCT pulse output(Pulse width 6~1000ms, default is 200ms) 1 way Relay output
RS485 MODBUS
|
|
|
Accuracy
|
±1%
|
|
|
Display
|
2X20 character LCD with backlight, support the language of Chinese, English and Italy
|
|
|
Principle
|
Transit- time ultrasonic flowmeter
|
|
|
Temperature
|
Host:-20~60℃;flow sensor:-30~ 160℃
|
|
|
Protection grade
|
Host:IP67;flow sensor:IP68
|
|
|
Pipe Material
|
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
|
|
|
Dimension
|
132*150*85mm(host)
|
|
Application
