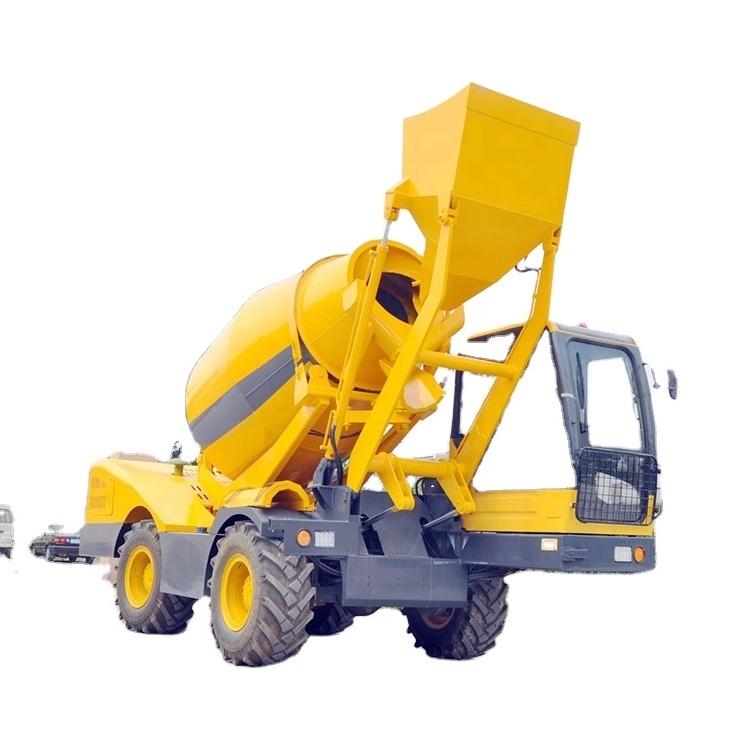

Mobile Mini Small 1.6M3 3m3 4m3 Carmix Self Loading Concrete Mixer Truck Car Price Mezcladora De Cemento

Mobile Mini Small 1.6M3 3m3 4m3 Carmix Self Loading Concrete Mixer Truck Car Price Mezcladora De Cemento

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 25000 kg

Dimension(L*W*H):: 10350*2496*3990mm

Power:: 3500w

Engine Capacity:: 290HP

Product name:: small self loading concrete mixer

After-sales Service Provided:: Engineers available to service machinery overseas

Type:: Self-loading Concrete Cement Mixer Truck

Mixing capacity:: 1.6-6.5m3

Uploading range:: 180 degree adjustment

Feed speed:: 2cbm/min

Water Tank Capacity:: 400L

WHEEL BASE:: 4325+1350mm

Certification:: CE

Quick Details

Marketing Type:: New Product 2022

Place of Origin:: henan

Brand Name:: Zhenheng

Weight:: 25000 kg

Dimension(L*W*H):: 10350*2496*3990mm

Power:: 3500w

Engine Capacity:: 290HP

Product name:: small self loading concrete mixer

After-sales Service Provided:: Engineers available to service machinery overseas

Type:: Self-loading Concrete Cement Mixer Truck

Mixing capacity:: 1.6-6.5m3

Uploading range:: 180 degree adjustment

Feed speed:: 2cbm/min

Water Tank Capacity:: 400L

WHEEL BASE:: 4325+1350mm

Certification:: CE

Product Description

Best Selling Mobile 1.6M3 Self Loading Concrete Mixer Truck

1. Simple and convenient operation. High efficiency output, save time and labor, save cost

2. Mixer drum can be lifted up 20° to make concrete discharge easier.

3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

4 . The external water pump is equipped with change-over switch of water suction so that water can be into water tank and mixer drum respectively.

5 . The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard.

Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. The self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate,stone,etc .

Self-loading concrete mixer is equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is easy to operate and go everywhere needed.It’s the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture.

Specification

Mixing volume	4.0 M3
Concrete output	4.0 M3 / batch, 16 M3 / hour
Drum rotation speed	16 rpm
Fuel tank volume	100L
Loading times to full drum	3 times
Total hydraulic system capacity	120 L
Water tank capacity	900 L
Max. travel speed	35 km/h
Gradeability	30°
88Operating weight	8800KG
Overall Dimension (L×W×H)	6900x2850x3400mm

Actual mixing capacity	m³	1.2	2.0	2.4	3.2
Rotary drum capacity	m³	1.4	2.3	2.6	3.4
Degree of bias	°	16	16	16	16
Rotational speed	r/min	0-14	0-14	0-14	0-14
Slump of concrete	mm	70-260	70-260	70-260	70-260
Max running speed	km/h	24	24	24	24
Min steering radius	mm	5000	4250	4500	4500
Climbing capacity	%	26	26	26	26
Weight	kg	4580	4880	5550	7500
Whole machinery weight	kg	7380	7680	11150	15300
Overall size(LWH)	mm	610018503000	670023002900	635025102850	665026003200
