- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HT-P130W-36P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1480*680*30mm
-
Product name:
-
130w poly solar panel
-
VMP:
-
18V
-
IMP:
-
6.6A
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Operating Temperature:
-
-40°C to +85°C
-
Connector:
-
PV Compatible Connector
-
Power tolerance::
-
0~+5w Tolerance
-
ISC:
-
7.33A
-
Maximum Power Voltage(Vmpp)::
-
6V/9V/18V/24V/30V/36V/48V/54V
Quick Details
-
Type:
-
PERC
-
Warranty:
-
25years, 25 Years Output Power Guarantee
-
Brand Name:
-
Hetech
-
Model Number:
-
HT-P130W-36P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1480*680*30mm
-
Product name:
-
130w poly solar panel
-
VMP:
-
18V
-
IMP:
-
6.6A
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Operating Temperature:
-
-40°C to +85°C
-
Connector:
-
PV Compatible Connector
-
Power tolerance::
-
0~+5w Tolerance
-
ISC:
-
7.33A
-
Maximum Power Voltage(Vmpp)::
-
6V/9V/18V/24V/30V/36V/48V/54V

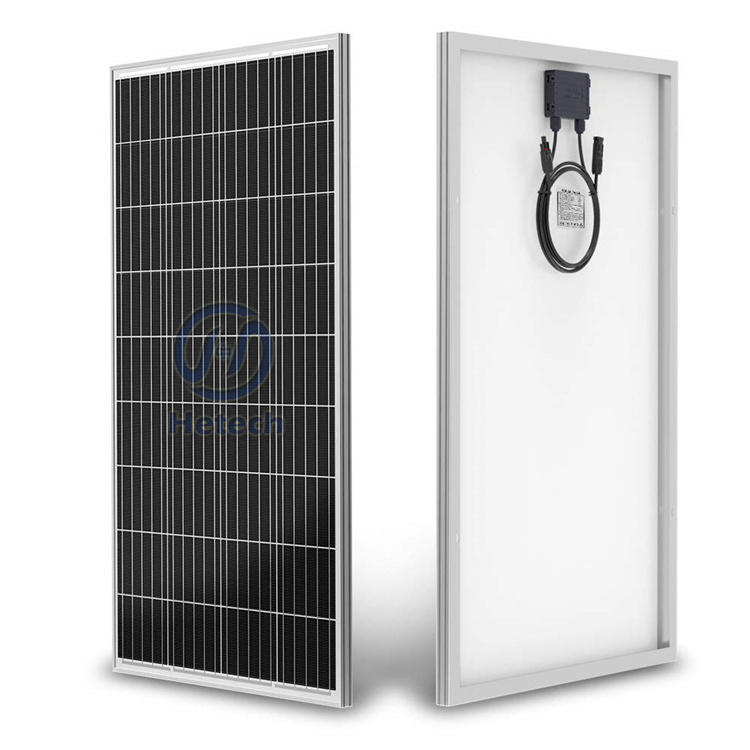

A grade 36 cells 130w poly solar panel specification
Features:
High reliability with guaranteed 0% to +5% power output tolerance ,ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load,and extreme temperature variations
Unique frame design, high mechanical strength, and easy Installation
| Electrical Specifications(STC): | |||||
| Module Type | HT-P160W-36P | HT-P150W-36P | HT-P140W-36P | HT-P130W-36P | HT-P120W-36P |
| Peak power | 160W | 150w | 140w | 130w | 120w |
| Optimum Operating Voltage(Vmp) | 18.42V | 18.34V | 18.21V | 18.02V | 17.81V |
| Optimum Operating Current(Imp) | 8.69A | 8.18A | 7.69A | 7.22A | 6.74A |
| Open-Circuit Voltage(Voc) | 22.11V | 22.01V | 21.86V | 21.62V | 21.38V |
| Short-Circuit Current(Isc) | 9.56A | 9.01V | 8.46V | 7.94A | 7.42A |
| Power tolerance | 0 to +5w | ||||
| Operation Temperature | -40~+85℃ | ||||
| Maximum system voltage | DC1000V | ||||
| Warranty |
10 years product defect warranty.
90% in 10 years, 80% of 25 years. |
||||
| Mechanical Characteristics: | |
|---|---|
| Size | 1480*680*30mm |
| Weight | 11kg |
| No. of Cells | 36(4*9) pcs |
| Cell dimension | Poly 156*156mm |
| Front cover | 3.2mm High Transmission shelf-cleaning Tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP67 Rated Standard Waterproof with bypass diode |
| Connectors | PV Special connector |
