Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNSUNNY
-
Voltage:
-
as you need
-
Power:
-
13kw
-
Dimension(L*W*H):
-
12000*1500*2800mm
-
Weight:
-
4500 kg
-
Warranty:
-
12 months
-
Max glass washing size:
-
1600*2000mm
-
Min glass size:
-
280*450mm
-
Glass washing thickness:
-
3-19mm
-
Brush:
-
3 pairs of low-e soft brushes
Quick Details
-
Machine Type:
-
Insulating Glass Production Line
-
Glass Thickness:
-
3-19mm
-
Production Capacity:
-
300-500pcs
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNSUNNY
-
Voltage:
-
as you need
-
Power:
-
13kw
-
Dimension(L*W*H):
-
12000*1500*2800mm
-
Weight:
-
4500 kg
-
Warranty:
-
12 months
-
Max glass washing size:
-
1600*2000mm
-
Min glass size:
-
280*450mm
-
Glass washing thickness:
-
3-19mm
-
Brush:
-
3 pairs of low-e soft brushes
1. Description:

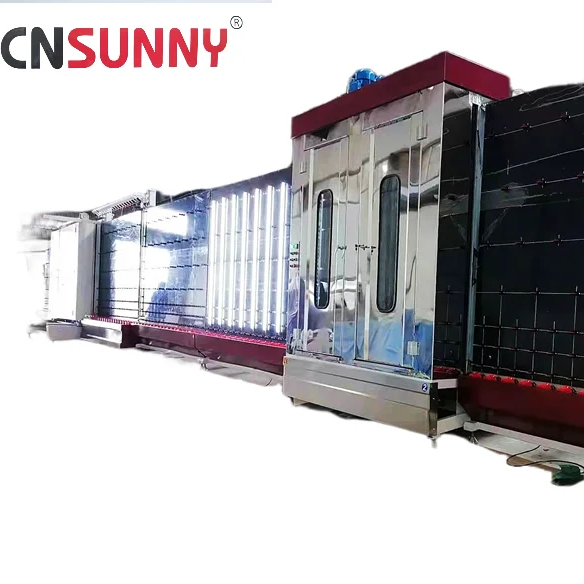

It is the essential machine of insulating glass produciton line
This Insulating Glass Machine is special equipment for aluminum groove type insulating glass, it can make two-layer and three-layer insulating glasses with equal and unequal glass sheets
2. Feature:
Making double glazed glass line, double glazed line, double glazed glass machine
Shape glass Low-e insulating glass machine
Automatic control for
Low-e glass
(
6-brushes
treatment for low-e glass)
Automatic adjust function for pressing with hydraulic compression
Titling table with hydraulic pressure
Monitor using system temperature/speed/production volume
Mechanical trouble cheek
Whole line control function with 1 monitor
3.Best Selling Specification:
Model:LBZ2500(max glass size:2500*3000mm)
Model:LBZ2000( Max glass zie:2000*2500mm)
LBZ1800(Max glass size:1800*2500mm)
LBZ1600(Max glass size:1600*2000mm)
3. Final insulating glass:
Two kind of package for your choose:
1)Seaworthy package:
Plywood cases:
1)Guarantee the complete machine for 18 monthes, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly english manual for machine using and maintaining.
