Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
JXSOL
-
Model Number:
-
JX N-Type 108HC
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1724*1134*30mm
-

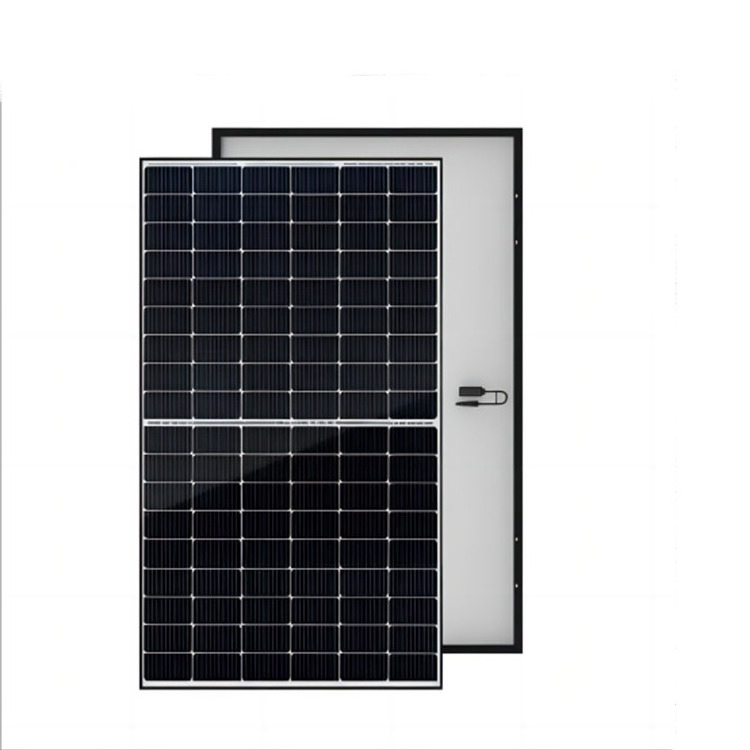

Product name:
-
Sola Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68
-
Weight:
-
26.5kgs
-
Cable:
-
4.0mm2
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
21%
-
Warranty:
-
25 Years
-
Brand Name:
-
JXSOL
-
Model Number:
-
JX N-Type 108HC
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1724*1134*30mm
-
Product name:
-
Sola Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68
-
Weight:
-
26.5kgs
-
Cable:
-
4.0mm2
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
|
Max. Power Output Pmax (W)
|
410
|
420
|
425
|
430
|
440
|
|||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|||||
|
Max. Power Voltage Vmp (V)
|
31.13
|
31.51
|
31.70
|
31.88
|
32.09
|
|||||
|
Max. Power Current Imp (A)
|
13.17
|
13.33
|
13.41
|
13.49
|
13.72
|
|||||
|
Open Circuit Voltage Voc (V)
|
37.73
|
36.11
|
38.30
|
38.49
|
38.53
|
|||||
|
Short Circuit Current Isc (A)
|
13.91
|
14.07
|
14.15
|
14.23
|
14.43
|
|||||
|
Module Efficiency (%)
|
21
|
21.51
|
21.76
|
22.02
|
22.53
|
|||||
|
STC: Irradiance 1000 W/m2，Cell Temperature 25℃,Air Mass AM1.5
|
|
|
|
|
|
|||||
|
Container 20'
|
388pcs
|
|
Container 40HQ
|
1008pcs
|
|
Packing
|
36pcs/carton pallet
|
Tangshan Jingxin Science and Technology Company Limited established in 2012. Our factory is located in Kaiping,Tangshan city, HeBei Province, which is near from Tianjin port,convenient to transport.
As a professional manufacturer and exporter, our company has 12+ years experience in manufacturing and exporting pv modules, solar energy system etc.We have professional production and sales teams,provide one-stop service.
At the same time we also sell Longi,Jinko,Trina brand solar panel in Eu warehouse.
FAQ
1. Q: Do you have your own factory?
A: Yes, we do. Our loctation is in Tangshan city, Hebei province.
2. Q: How can I visit your factory?
A: Please let us konw bofore you go there. We will arrange time to pick you up and show you around.
3. Q: Do you provide free sample?
A: Yes, but hope you will afford the afford the freight cost.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM and ODM order.
5. Q: Do you accept customized order?
A: Yes.
6. Q: Do you provide technology guidance?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
A: Yes, we do. Our loctation is in Tangshan city, Hebei province.
2. Q: How can I visit your factory?
A: Please let us konw bofore you go there. We will arrange time to pick you up and show you around.
3. Q: Do you provide free sample?
A: Yes, but hope you will afford the afford the freight cost.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM and ODM order.
5. Q: Do you accept customized order?
A: Yes.
6. Q: Do you provide technology guidance?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
