Quick Details
-
Model Number:
-
IS-6516
-
Weight:
-
58KG
-
Packing Dimension:
-
1600*1000*200MM
-
Product Dimension:
-
65 inch
-
Warranty:
-
2 years
-
Certificates:
-
BIS,CE,CB,FCC,ROHS
-
Operating system:
-
Android/Win
-
Touch points:
-
20 points touching
-
Brightness:
-
350cd/m2
-
Touch Type:
-
Aluminum Alloy Frame
-
Installation Way:
-
Bracket
-
Contrast Ratio:
-
4000:1
-
RAM:
-
4GB
-
ROM:
-
32GB
Quick Details
-
Panel Size:
-
65inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INGSCREEN
-
Model Number:
-
IS-6516
-
Weight:
-
58KG
-
Packing Dimension:
-
1600*1000*200MM
-
Product Dimension:
-
65 inch
-
Warranty:
-
2 years
-
Certificates:
-
BIS,CE,CB,FCC,ROHS
-
Operating system:
-
Android/Win
-
Touch points:
-
20 points touching
-
Brightness:
-
350cd/m2
-
Touch Type:
-
Aluminum Alloy Frame
-
Installation Way:
-
Bracket
-
Contrast Ratio:
-
4000:1
-
RAM:
-
4GB
-
ROM:
-
32GB
Products Description
|
Product name
|

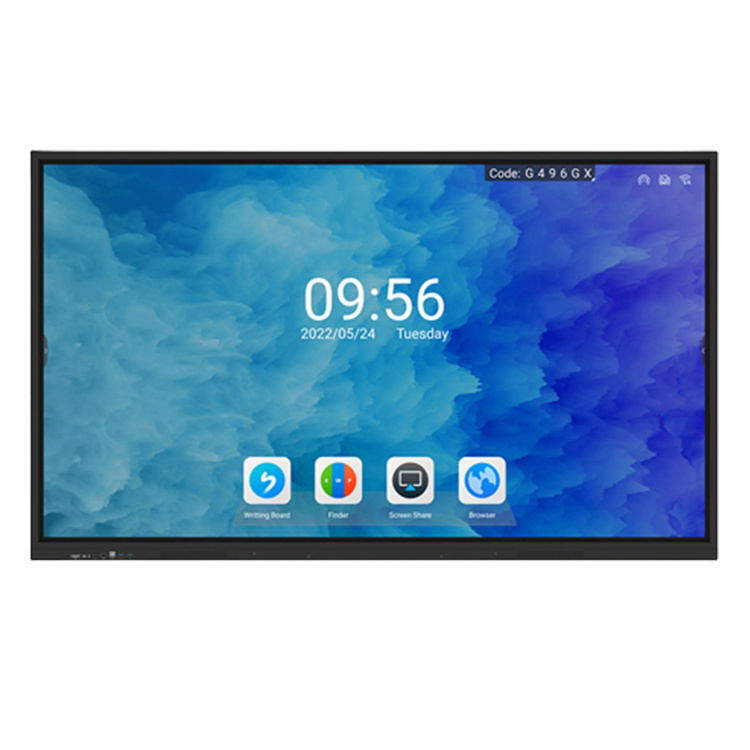

Conference Teaching Touch All-in-one Machine
|
|
|
Model
|
IS-6516
|
|
|
Panel LCD Size
|
65 inch
|
|
|
Type of panel
|
ADS
|
|
|
VisualRatio
|
16:9
|
|
|
Lightsource
|
DLED
|
|
|
Resloution
|
3840 x 2160pixels
|
|
|
Brightness
|
350cd/m²
|
|
|
Contrast ration
|
1200:1
|
|
|
Frame rate
|
60Hz
|
|
|
Viewing angle
|
178°(H)/178°(V)
|
|
|
Life time
|
30,000hrs
|
|
|
Color saturability(x%NTSC)
|
72%
|
|
|
Pixel pitch
|
0.372×0.372mm
|
|
|
Display colors
|
1.07B(10bit)
|
|
|
|
COAX*1, RS232*1, MINI AV*1, MINI AV OUT*1,EARPHONE*1, MIC IN*1, RJ45 IN*1, RJ45 OUT*1, VGA*1(Optional), PC AUDIO*1(Optional), MINIYPBPR*1(Optional), DP IN*1(Optional), HD MI*2, TOUCH OUT*1, Android USB3.0*1, Public USB3.0*1, HD MI OUT*1(Optional), TF CARD*1, TYPE-C*1(front)
|
|
|
Language
|
OSD (CH, En)
|
|
|
Accessory
|
Power cord*1, Stylus pen*2, Wall mount*1, Operation manual*1
|
|
|
Audio-video parameters
|
|
|
|
Speaker
|
Soundtrack: 2.0
Power: 2×15W |
|
|
Touch Panel
|
|
|
|
Touch specififications
|
Non-contact infrared sensing technology
|
|
|
Support systems
|
Win 10/Win 8/Win 7/Win XP/Android/Linux/Mac OS X/Chrome
|
|
|
Touch points
|
20 PointsTouch
|
|
|
Min.Identifier
|
2mm
|
|
|
Input mode
|
Opaqueo bject(finger,pen,etc)
|
|
|
Respond time
|
≤10ms
|
|
|
Touch depth
|
±1mm
|
|
|
Writing height
|
≤3mm
|
|
|
Writing display
|
Single Stylus pen two-colour
|
|
|
Output coordinates
|
32767(W)×32767(D)
|
|
|
Input method
|
Opaque objects (such as fifingers, pens, etc.)
|
|
|
Operating System
|
|
|
|
System Version
|
Android 11.0
|
|
|
CPU
|
Quad Core A55
|
|
|
GPU
|
Mali G52MP2
|
|
|
RAM
|
4GB
|
|
|
ROM
|
32GB
|
|
|
Wireless
|
|
|
|
Bluetooth
|
Version: 5.0
Working Frequency: 2.4GHz Working Distance: 0~10m |
|
|
|
Version: 802.11ac/b/g/n/a/ax
Working Frequency: 2.4GHz/5GHz Working Distance: 0~10m |
|
|
Power
|
|
|
|
Voltage
|
100-240V～50/60Hz 4A
|
|
|
Max power consumption
|
280W
|
|
|
Standby power consumption
|
≤0.5W
|
|
|
Environmen
|
|
|
|
Working temperature
|
0℃～40℃
|
|
|
Working humidity
|
10%~90%RH
|
|
|
Storage temperature
|
-20℃～60℃
|
|
|
Working humidity
|
10%〜90%RH
|
|
|
Working Elevation
|
<5000m
|
|
|
Structure
|
|
|
|
Net weight
|
45KGS
|
|
|
Gross weight
|
56KGS
|
|
|
Product dimensions
|
1488.4×896.6×87.2mm
|
|
|
Packing dimensions
|
1630×220×1050mm
|
|
|
VESA hole site
|
600×400mm
|
|
|
Wall mounting screw specifications
|
M8×25mm
|
|
