Quick Details
-
Model Number:
-
EW80
-
Weight:
-
80GSM, 80g/m2
-
Width:
-
1000mm,1010mm
-
Standing Temperature:
-
550 Degree
-
Product name:
-
fiberglass cloth fabric for waterproofing
-
Material:
-
Glass Fiber Yarn
-
Type:
-
E-galss
-
Density:
-
12x12
-
Diameter:
-
9μm
-
Color:
-
White
-
Good Features:
-
High intensity and electric insulation
-
Coating:
-
Silicone
-
Service:
-
Supply free sample
Quick Details
-
Application:
-
Wall/Roof covering Cloth
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JiaHe
-
Model Number:
-
EW80
-
Weight:
-
80GSM, 80g/m2
-
Width:
-
1000mm,1010mm
-
Standing Temperature:
-
550 Degree
-
Product name:
-
fiberglass cloth fabric for waterproofing
-
Material:
-
Glass Fiber Yarn
-
Type:
-
E-galss
-
Density:
-
12x12
-
Diameter:
-
9μm
-
Color:
-
White
-
Good Features:
-
High intensity and electric insulation
-
Coating:
-
Silicone
-
Service:
-
Supply free sample

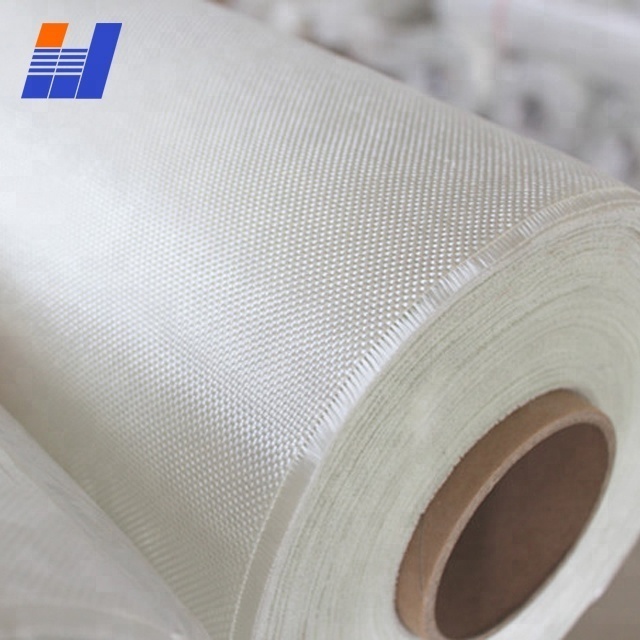

Plain weave fiberglass cloth for waterproofing.
Fiberglass cloth is an engineering material, which has the excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc
Product Properties:
1.High intensity and quick wet out
2.Perfect designable character
3.Anti-corrosion and electric insulation
Technical Specification:
| Type | Weave | Density(yarns/cm) | Weight (g/m²) | Tensile strength (N/25mm) | Warp | Weft | Diameter (μm) | ||
| Warp | Weft | Warp | Weft | Tex | |||||
| EW30 | Plain | 20±2 | 18±2 | 23±2 | ≥160 | ≥70 | 8 | 4 | 4.5 |
| EW60 | Plain | 20±2 | 20±2 | 48±4 | ≥260 | ≥260 | 12.5 | 12.5 | 5.5 |
| EW80 | Plain | 12±1 | 12±1 | 80±8 | ≥300 | ≥300 | 33 | 33 | 9 |
| EW100 | Plain | 16±1 | 15±1 | 110±10 | ≥400 | ≥400 | 33 | 33 | 9 |
| EW130 | Plain | 10±1 | 10±1 | 130±10 | ≥600 | ≥600 | 66 | 66 | 9 |
| EW160 | Plain | 12±1 | 12±1 | 160±12 | ≥700 | ≥650 | 66 | 66 | 9 |
| EW200 | Plain | 8±0.5 | 7±0.5 | 198±14 | ≥700 | ≥650 | 132 | 132 | 9 |
| EW200 | Plain | 16±1 | 13±1 | 200±20 | ≥900 | ≥700 | 66 | 66 | 9 |
| EW300 | Plain | 8±0.5 | 7±0.5 | 300±24 | ≥1000 | ≥800 | 200 | 200 | 13 |
| EW400 | Plain | 8±0.5 | 7±0.5 | 400±32 | ≥1200 | ≥1100 | 264 | 264 |
13 |
| EW400 | Plain | 6±0.5 | 6±0.5 | 400±32 | ≥1200 | ≥1100 | 330 | 330 | 13 |
Our products are widely known and trusted by users. Welcome to contact or visit us for win-win cooperation, it is convenient for your trip to get us by air to shanghai,Changzhou,taizhou,wuxi,nanjing airport, or by express train to taizhou or changzhou station where we pick up .Thank you!
