Quick Details
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
800mm*700mm*1150mm
-
Power (kW):
-
4
-
Weight (KG):
-
40 KG
-
Power Source:
-
230V/110V single phase,50/60HZ
-
Whole Power:
-
4 kW
-
Heater Power:
-
1Kw each side
-
Driven mode:
-
Electric
-
Air Source:
-
1kW air compressor or less
-
Chemical Output:
-
4-6 kg/m
-
Max, output pressure:
-
13.8Mpa
-
A and B chemical output ratio:
-
1:1
-
Max. hose support:
-
15 meters
-
Machine size:
-
800*700*1150mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CNMC
-
Machine Type:
-
Polyurethane spray foam machine
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
800mm*700mm*1150mm
-
Power (kW):
-
4
-
Weight (KG):
-
40 KG
-
Power Source:
-
230V/110V single phase,50/60HZ
-
Whole Power:
-
4 kW
-
Heater Power:
-
1Kw each side
-
Driven mode:
-
Electric
-
Air Source:
-
1kW air compressor or less
-
Chemical Output:
-
4-6 kg/m
-
Max, output pressure:
-
13.8Mpa
-
A and B chemical output ratio:
-
1:1
-
Max. hose support:
-
15 meters
-
Machine size:
-
800*700*1150mm
Introduction of Wholesale spray foam 220V/380V spray foam insulation kit pu foam spray machine
Wholesale spray foam 220V/380V spray foam insulation kit pu foam spray machine is can be used for various construction environment with spraying two-component materials spray(optional) like polyurethane foaming materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and so on.
Features :
1. Electric spray machine, do not need air compressor to work.
2. It saves 30% electricity than pneumatic machines, helpng save costs.
3.
The machine size is small, so you can carry it with your car to your projects, very convenient.

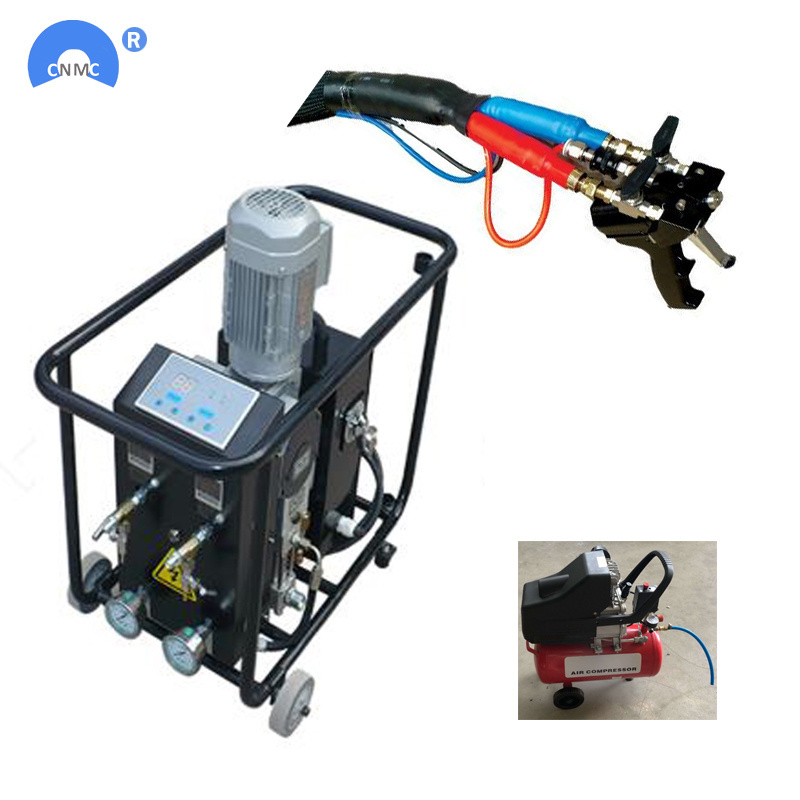

4. You only need a small air compressor to work with the machine as below picture show. It helps you save cost.
Parameter of Wholesale spray foam 220V/380V spray foam insulation kit pu foam spray machine
|
Model |
CNMC-E8P |
|
Power source |
110V/220V/380-400V |
|
Heating power |
4KW |
|
Driven mode |
electric |
|
Raw output |
2~8 kg/min |
|
Maximum working pressure |
13.8Mpa (138bar) |
|
AB material output ratio |
1:1 |
|
Spray gun |
1 Set |
|
Hose |
15m |
|
Spare parts |
1 set |
|
User manual CD |
1 copy |
One set including electric spray machine*1 set
Spray gun*1 set
Heating hose*15 m
Feeding pipe *2 piece
Accessories box* 1 box
Transfer pump*2 pieces
Details of Wholesale spray foam 220V/380V spray foam insulation kit pu foam spray machine
