Quick Details
-
Brand Name:
-
HEWI
-
Model Number:
-
CE8850-64CQ-EI, CE8850-64CQ-EI
-
Place of Origin:
-
Guangdong, China, China
-
5G Wireless Speed:
-
12.8Tbps/204.8Tbps
-
Forwarding Performance:
-
4482 Mpps
-
Maximum Power Consumption:
-
376W
-
Condition:
-
100% Original Brand
-
Product name:
-
cloudengine 8850-64cq-ei
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12.8Tbps/204.8Tbps
-
Brand Name:
-
HEWI
-
Model Number:
-
CE8850-64CQ-EI, CE8850-64CQ-EI
-
Place of Origin:
-
Guangdong, China, China
-
5G Wireless Speed:
-
12.8Tbps/204.8Tbps
-
Forwarding Performance:
-
4482 Mpps
-
Maximum Power Consumption:
-
376W
-
Condition:
-
100% Original Brand
-
Product name:
-
cloudengine 8850-64cq-ei
-
Warranty:
-
1 Year
Products Description

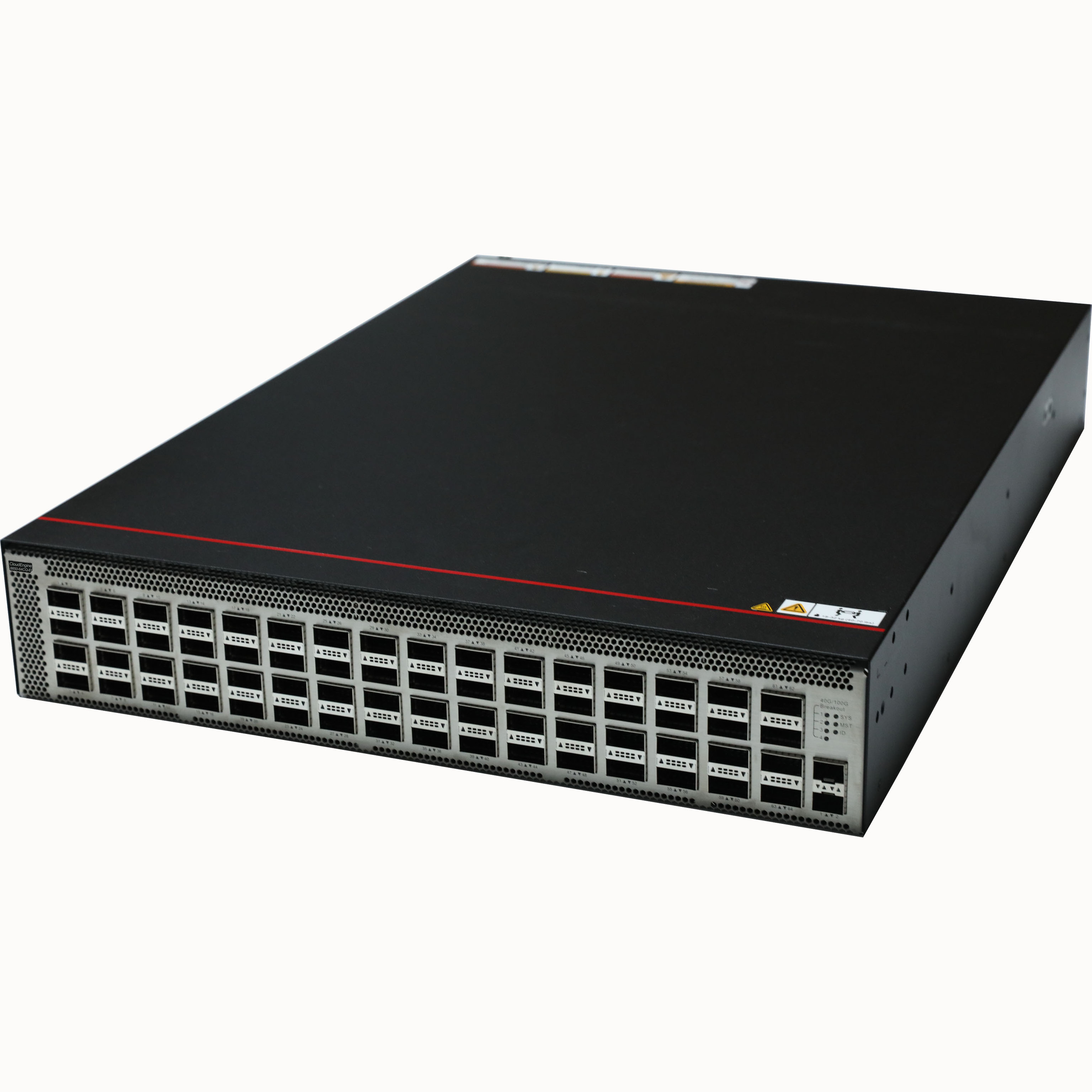

cloudengine 8800 tor switch CE8850-64CQ-EI edge core switch cloudengine 8850-64cq-ei
|
Item
|
|
CE8850-64CQ-EI
|
|
|
Physical Features
|
Dimensions (W x D x H)
|
442 mm x 600 mm x 88.1 mm
|
|
|
|
Weight
|
16.9/22.2 kg
|
|
|
|
Switching capacity
|
12.8 Tbps
|
|
|
|
Forwarding performance
|
4482 Mpps
|
|
|
Ports
|
|
64*100GE QSFP28
|
|
|
Card
|
Number of card slots
|
0
|
|
|
|
Card type
|
Fixed card
|
|
|
|
Card
specification |
N/A
|
|
|
Management
interface |
Out-of-band management
port |
2*GE RJ45 management interfaces
|
|
|
|
Console port
|
1*RJ45 interface + 1*MiniUSB interface (multiplexing)
|
|
|
|
USB port
|
1
|
|
|
CPU
|
Main frequency (GHz)
|
1.5
|
|
|
|
Number of cores
|
8
|
|
|
Storage
|
RAM
|
4 GB
|
|
|
|
NOR flash
|
32 MB
|
|
|
|
NAND flash
|
2 GB
|
|
|
System
|
System buffer
|
42 MB
|
|
|
Power Supply
System |
Rated voltage range (V)
|
AC: 100 V to 240 V
DC 380 V HVDC: 240 V to 380 V DC: -48 V to -60 V |
|
|
|
Maximum voltage range (V)
|
AC: 90 V to 290 V 240 V HVDC: 188 V to 290 V
380 V HVDC: 188 V to 400 V DC: -38.4 V to -72 V |
|
|
|
Maximum input current
|
1200 W AC power module: 200 V to 240 V 8A; 100 V to 130 V 10A
1200 W 240 V DC power module: 240 V 8A
1200 W 380 V DC power module: 240 V to 380 V 8A 1200 W -48 V power module: -48 V to 60 V 38A |
|
|
|
Maximum power
|
965 W
|
|
|
Environment
specifications |
Long-term operating
temperature (°C) |
0°C to 40°C (0-1800 m)
The temperature decreases by 1°C each time the altitude increases by 220 m. |
|
|
|
Storage temperature (°C)
|
-40°C to +70°C
|
|
|
|
Relative humidity
|
5% to 95%
|
|
|
|
Operating altitude (m)
|
Up to 5000
|
|
|
|
Surge protection
|
AC power supply protection: 4 kV in common mode and 2.5 kV in differential mode
DC power supply protection: 4 kV in common mode and 2 kV in differential mode |
|
|
Product Characteristics
|
|
1、25GE Access Switch with Flexible Cards
2、High-Density 100GE/40GE Aggregation and Outstanding Switching Capacity
3、Network-Wide Reliability, Ensuring Zero Service Interruptions
4、Programmable Network Device, Flexible Customization
5、Virtualized Gateway Achieves Fast Service Deployment
6、Standard Interfaces, Enabling Openness and Interoperability
7、ZTP, Implementing Automatic O&M
8、Intelligent Lossless DCN, Improving Reliability of High-Performance Computing
9、FabricInsight-based Intelligent O&M
|
Product Paramenters
|
Item
|
CE8850-64CQ-EI
|
|
Device virtualization
|
iStack
|
|
|
M-LAG
|
|
Network virtualization
|
VXLAN in routing and bridging modes
|
|
|
BGP-EVPN
|
|
|
QinQ access VXLAN
|
|
Data center
interconnect (DCI) |
VXLAN mapping, implementing interconnection between multiple DCI networks at Layer 2
|
|
SDN
|
iMaster NCE-Fabric
|
|
|
VMware NSX (supported by CloudEngine 8861)
|
|
Network
convergence |
DCBX, PFC, and ETS
|
|
|
RDMA and RoCE (RoCEv1 and RoCEv2)
|
|
Programmability
|
OPS
|
|
|
Ansible-based automatic configuration and open-source module release
|
|
Traffic analysis
|
NetStream
|
|
|
sFlow
|
|
VLAN
|
Adding access, trunk, and hybrid interfaces to VLANs
|
|
|
Default VLAN
|
|
|
QinQ
|
|
|
MUX VLAN
|
|
|
GVRP
|
|
MAC address table
|
Dynamic learning and aging of MAC address entries
|
|
|
Static, dynamic, and blackhole MAC address entries
|
|
|
Packet filtering based on source MAC addresses
|
|
|
MAC address limiting based on ports and VLANs
|
|
IP routing
|
IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP
|
|
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
|
|
IPv6
|
IPv6 Neighbor Discovery (ND)
|
|
|
IPv6 VXLAN over IPv4
|
|
|
Path MTU Discovery (PMTU)
|
|
|
TCP6, IPv6 ping, IPv6 tracert, IPv6 socket, UDP6, and raw IPv6
|
|
Intelligent and
lossless network |
VIQ, Dynamic ECN, Fast CNP, Dynamic load balancing (DLB), RoCE flow visibility
(supported by CloudEngine 8850-64CQ-EI and CloudEngine 8861) INC (supported by CloudEngine 8850-64CQ-EI) |
